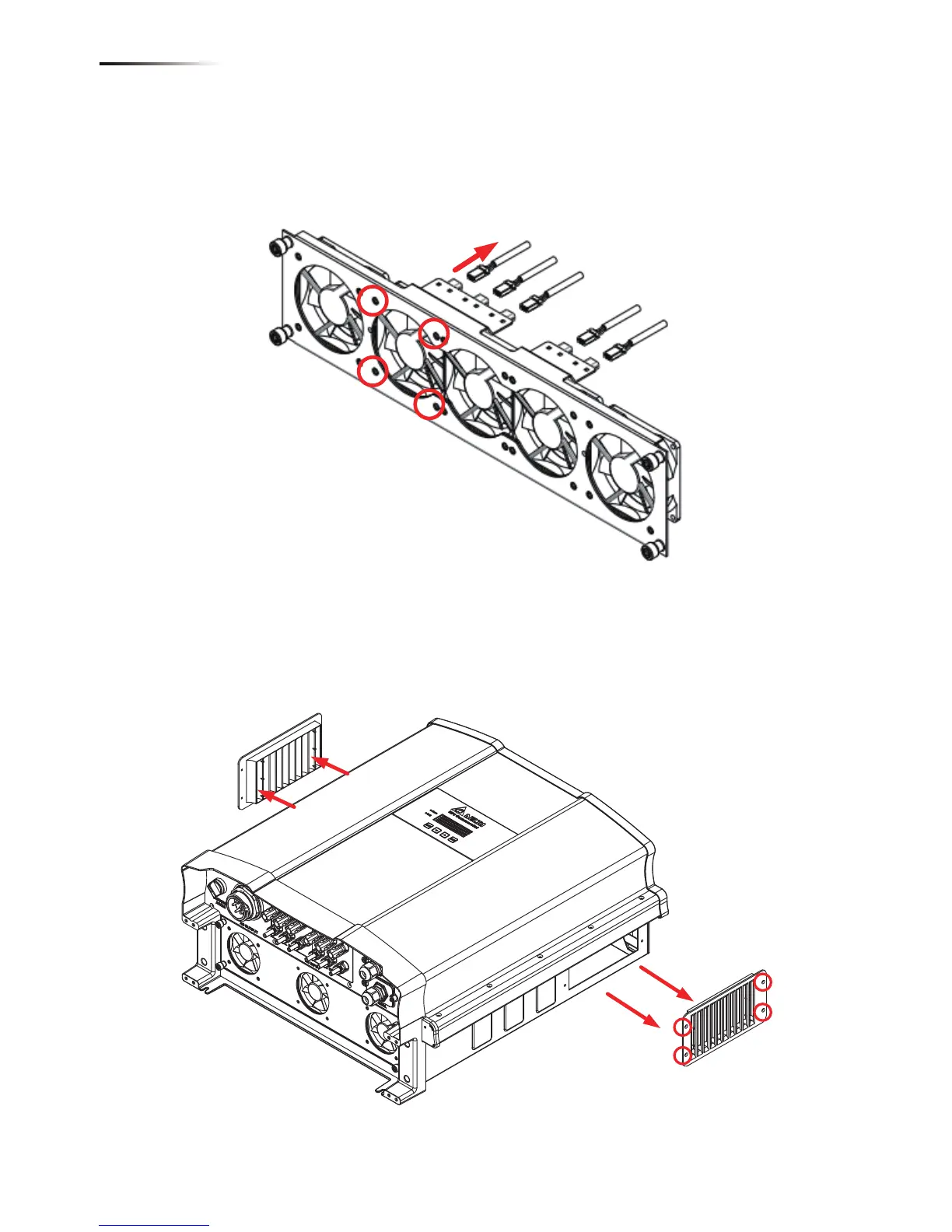

Figure 6-7 Removal of a fan
Figure 6-8 Removal of air outlets
6.4 Replace Fans
In the event that a fan needs to be replaced, user should disassemble the
4 pcs screws around the fans and disconnect the connector right behind the
fan bracket. Then replace new fan and reassemble the 4pcs screws.
6.5 Clean Air Inlet
Unscrew the 4 screws of air inlets and clean them regularly.
60
Maintenance
