Delta RPI M30A User Manual

5.2.7.4. Grid Settings
Grid settings page includes the voltage and frequency protection points.
These protection points are linked to electricity regulations.
If there is no any special requirement, please do not change any grid settings.

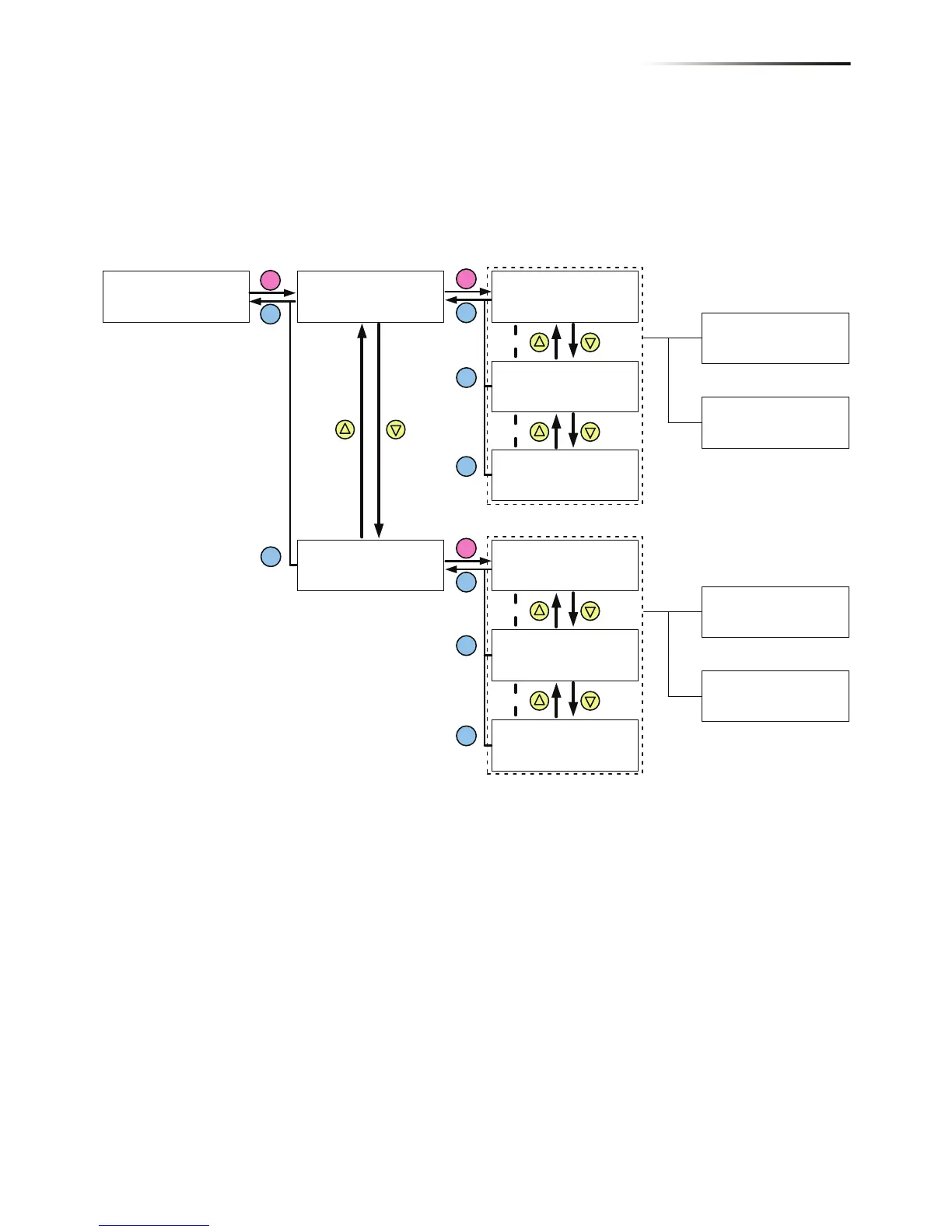

Figure 5-13 Grid Settings page
Inverter ID: 002
Insulation
Country
Grid Settings
►
ENT
EXIT
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
ENT
EXIT
High Off
High On
High Off T
Low Off
►
276.0V
259.0V
0.3s
184.0V
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
219.0V
0.3s
276.0V
259.0V
Hi Off Sl T
Lo Off Slow
Lo On Slow
Lo Off Sl T
►
600.0s
184.0V
219.0V
1.0s
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
ENT
EXIT
High Off
High On
High Off T
Low Off
►
51.50Hz
50.05Hz
0.1s
47.50Hz
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
47.55Hz
0.1s
65.00Hz
64.95Hz
Hi Off Slow T
Lo Off Slow
Lo On Slow
Lo Off Slow T
►
5.0s
45.00Hz
45.55Hz
5.0s
600s
6000%/m
600s
6000%/m
EXIT
EXIT
EXIT
EXIT
EXIT
If user enters wrong settings
Wrong Settings
If user enters wrong settings
Wrong Settings
Press ▲&▼ 5s
Do you want to set
U to the max range?
Yes / ►No
Do you want to set
F to the max range?
Yes / ►No
Press ▲&▼ 5s
47
Turn on PV inverter
