5.2.7.4. Grid Settings
Grid Settings页面包含各种电压与频率保护值，这些保护值乃依据各电力
法规所建立，若无特殊需求请勿修改任何保护值。

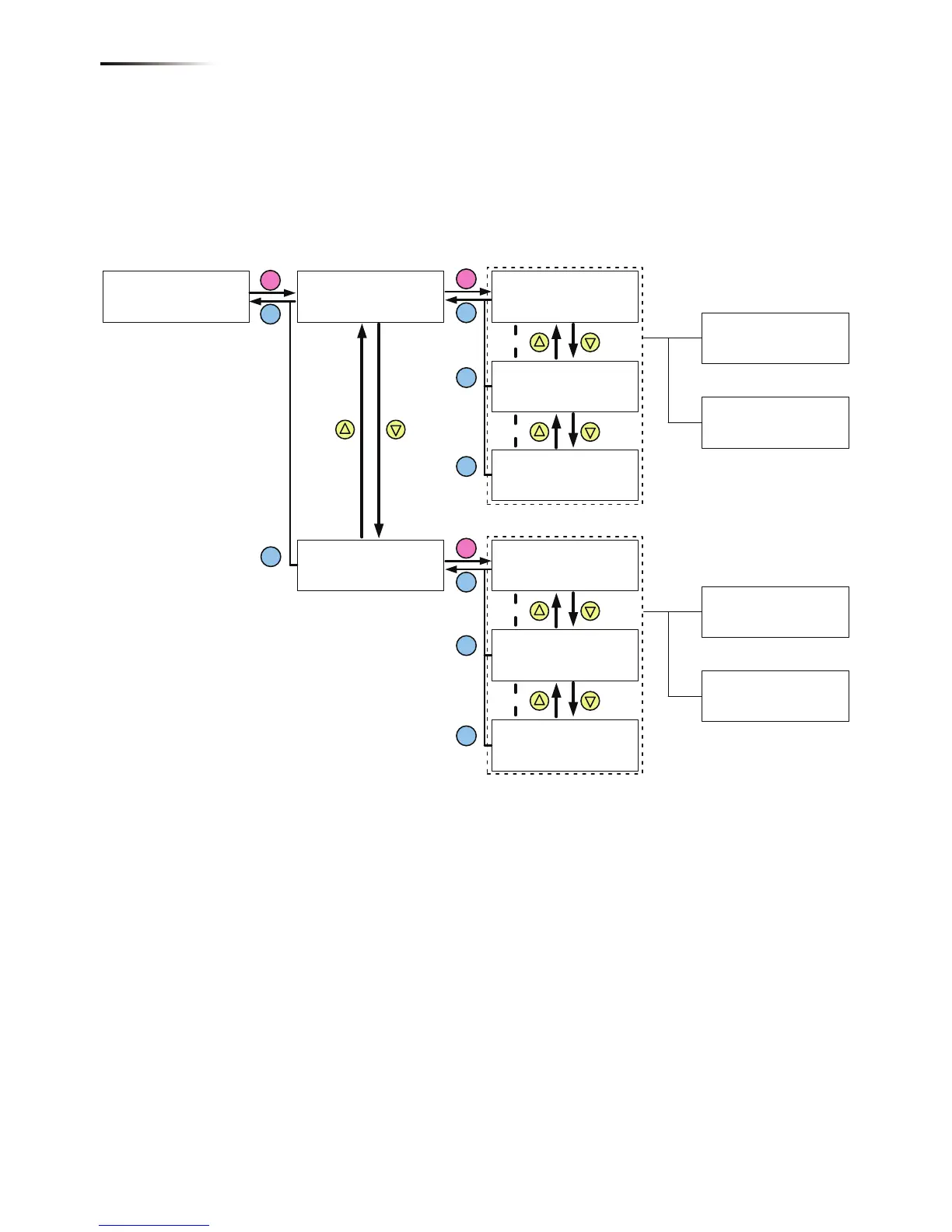

图5-13 Grid Settings 页面
Inverter ID: 002
Insulation
Country
Grid Settings
►
ENT
EXIT
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
ENT
EXIT
High Off
High On
High Off T
Low Off
►
276.0V
259.0V
0.3s
184.0V
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
219.0V
0.3s
276.0V
259.0V
Hi Off Sl T
Lo Off Slow
Lo On Slow
Lo Off Sl T
►
600.0s
184.0V
219.0V
1.0s
Voltage Protection
Freq. Protection
Reconnect T
P Ramp Up
►
ENT
EXIT
High Off
High On
High Off T
Low Off
►
51.50Hz
50.05Hz
0.1s
47.50Hz
Low On
Low Off T
Hi Off Slow
Hi On Slow
►
47.55Hz
0.1s
65.00Hz
64.95Hz
Hi Off Slow T
Lo Off Slow
Lo On Slow
Lo Off Slow T
►
5.0s
45.00Hz
45.55Hz
5.0s
600s
6000%/m
600s
6000%/m
EXIT
EXIT
EXIT
EXIT
EXIT
If user enters wrong settings
Wrong Settings
If user enters wrong settings
Wrong Settings
Press ▲&▼ 5s
Do you want to set
U to the max range?
Yes / ►No
Do you want to set
F to the max range?
Yes / ►No
Press ▲&▼ 5s
