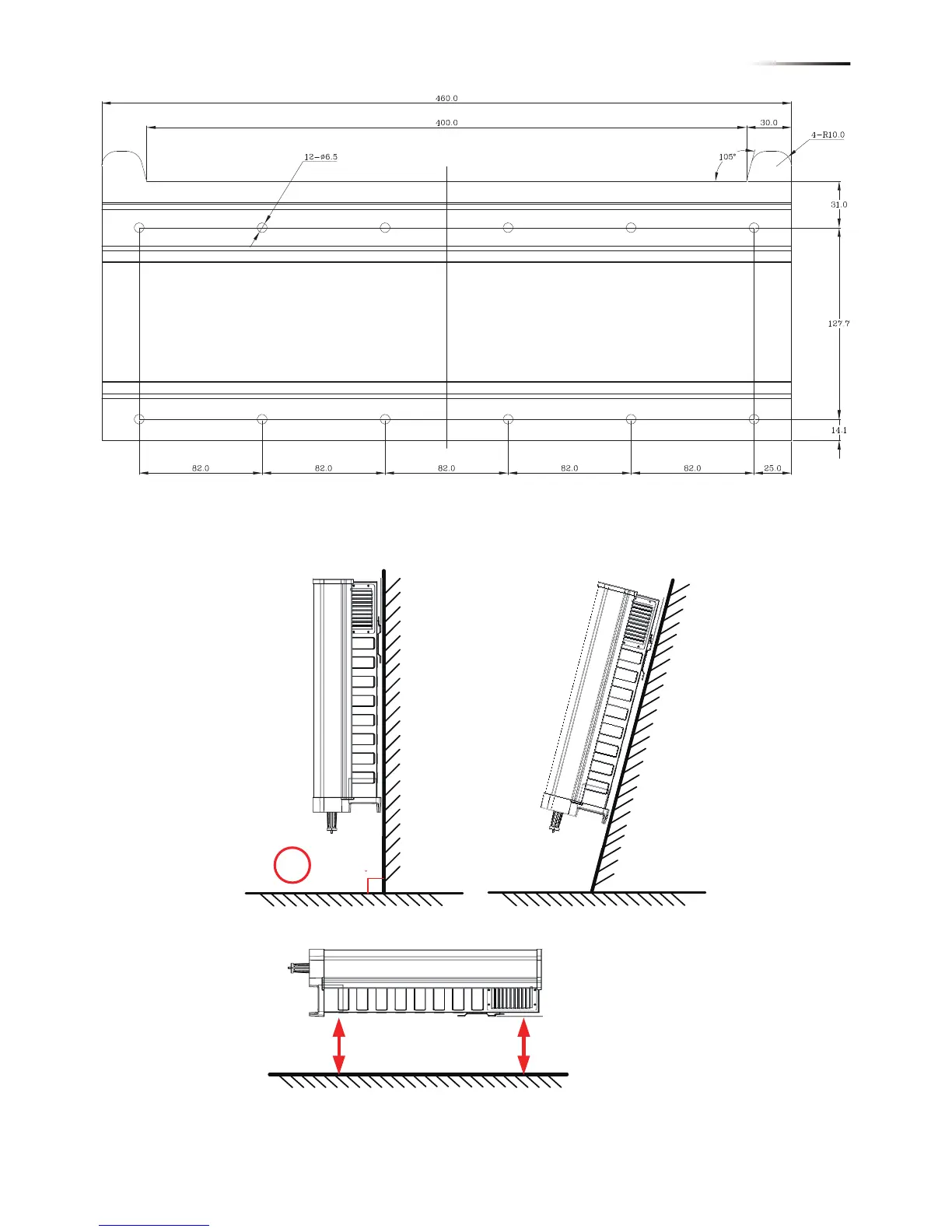

Figure 3-1 Mounting bracket dimension
Figure 3-2 Recommended installation
90
Not
Recommended
Not
Recommended
Keep >30 cm from floor and
water if installed this way
13
Installation
