CAUTION！Machine and equipment damage may occur.
• Make sure to choose proper size for AC cable.
•
Failed to follow these instructions may cause AC plug damage.
• AC plug’s installation must meets the local electrical code.
• If there is any conflict between installation instruction and electrical
code, please follow the electrical code.
Follow the steps below to strip the wires before assembling the AC plug:
• Remove 55 mm (2.2 inch) of AC cable outer jacket.
• Trim the L1, L2, L3, and N wire to 52.5 mm (2.0 inch).
• Strip 12 mm (0.5 inch) of insulation from all wires ends for RPI M30A.
• Strip 18 mm (0.7 inch) of insulation from all wires ends for RPI M50A.

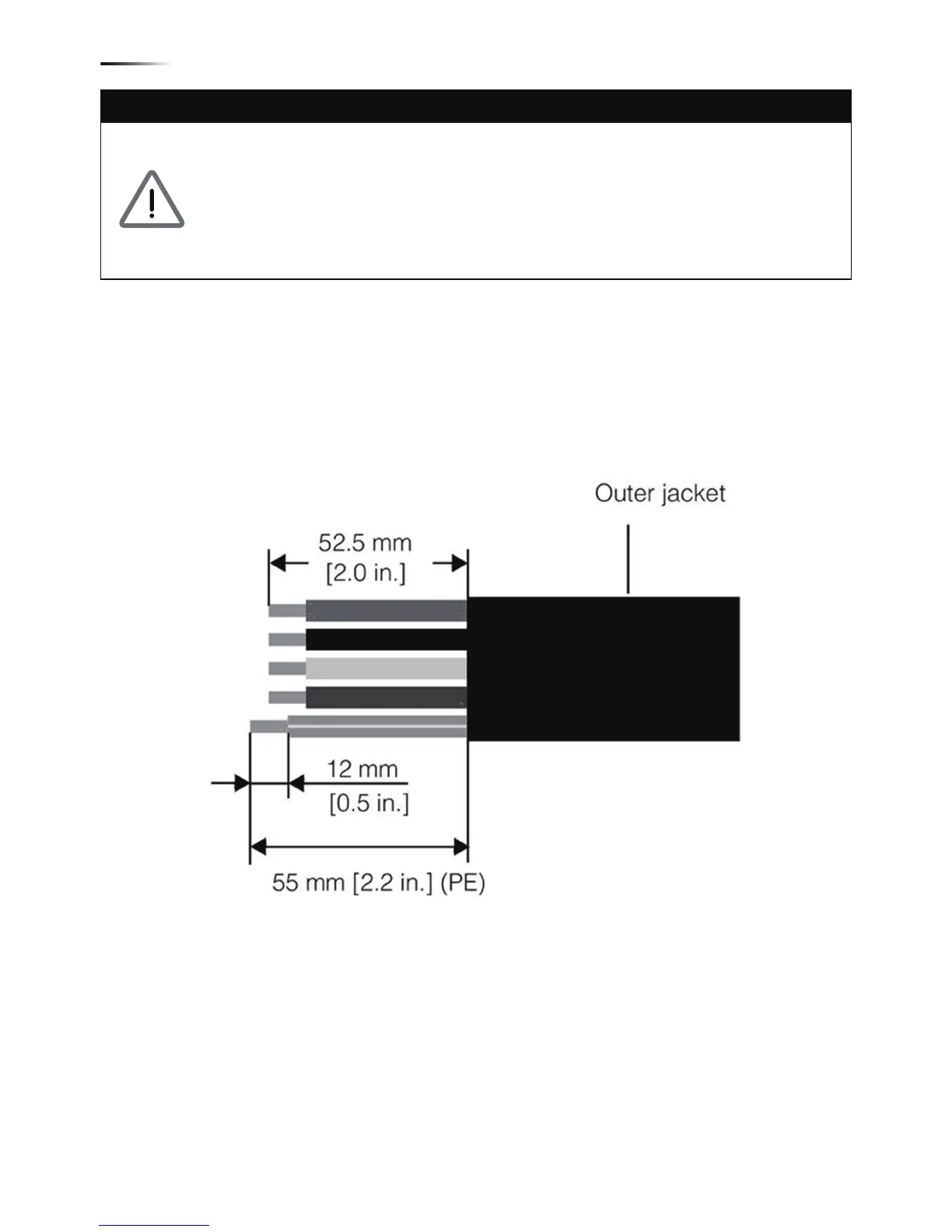

Figure 4-12 Striping the wires
