Delta RT Series User Manual

27

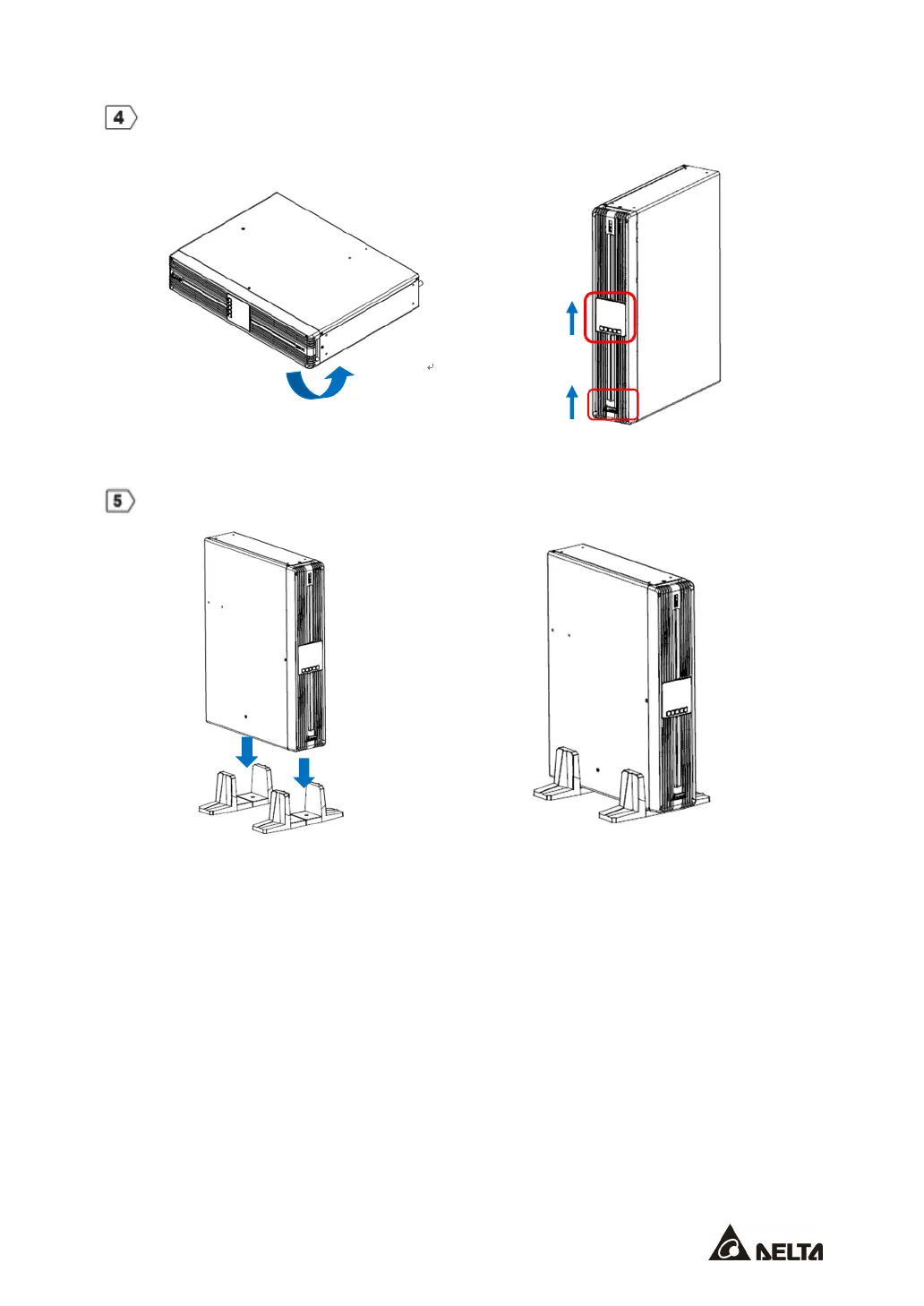

Carefully lift the UPS upright  (at least two people are required) with the Delta logo nameplate
and buttons on the LCD facing up.
(Figure 6-7: Place the UPS Upright)
Fit the whole unit into the tower stands  (at least two people are required).
(Figure 6-8: Fit the UPS into the Tower Stands)
Leave adequate space (at least 50 cm (19.69'')) around all sides of the UPS for good ventilation.

Lift Up 90
∘
Facing Up


Delta RT Series Specifications

General

Transfer Time	0 ms
Topology	Online Double Conversion
Output Voltage	220V/230V/240V (selectable)
Input Frequency Range	40Hz to 70Hz
Output Frequency	50 Hz ± 0.1% or 60 Hz ± 0.1%
Waveform	Pure Sine Wave
Battery Type	Sealed Lead-Acid (SLA)
Communication Ports	RS232, USB, Optional SNMP
Phase	Single Phase
Form Factor	Rackmount/Tower
Operating Temperature	0°C to 40°C
Humidity	0% to 95% (non-condensing)
Protection Features	Overload, short circuit, over temperature, battery deep discharge
Storage Temperature	-15 ~ 50 °C (5 ~ 122 °F)
