Amplon RT Series
Connection
z

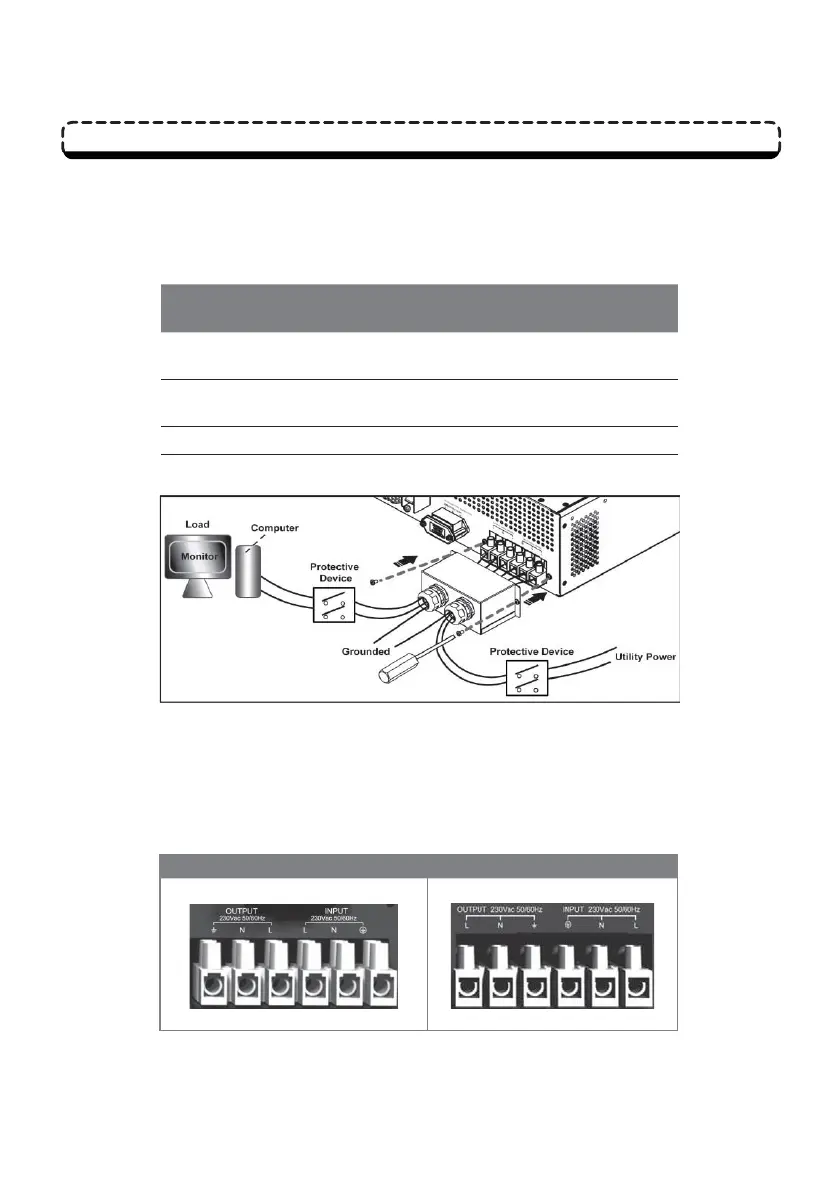

UPS Connection Warnings:
1.
When connecting the UPS to the mains and the load, it is highly recommended that you install
the protective devices. The protective devices must use approved components that meet
safety certi cations. Please refer to the table and diagram below.
2. Prior to providing any power to the UPS, the UPS must be suitably grounded.
3. The power supply to the UPS must be single-phase in accordance with its rating label.
z
Input/ Output Connection:
1. Please see the gures below for input/ output connection.
UPS Power
Rating
Suggested
Protective Device
Suggested Supplier
5kVA C curve- 40 A NADER: NDM1-63C 40/2 &
GE: 674609
6kVA C curve- 40 A NADER: NDM1-63C 40/2 &
GE: 674609
10kVA D curve- 63 A NADER: NDB2-63D 63/2
(Figure 3-g) 5kVA/ 6kVA (Figure 3-h) 10kVA
