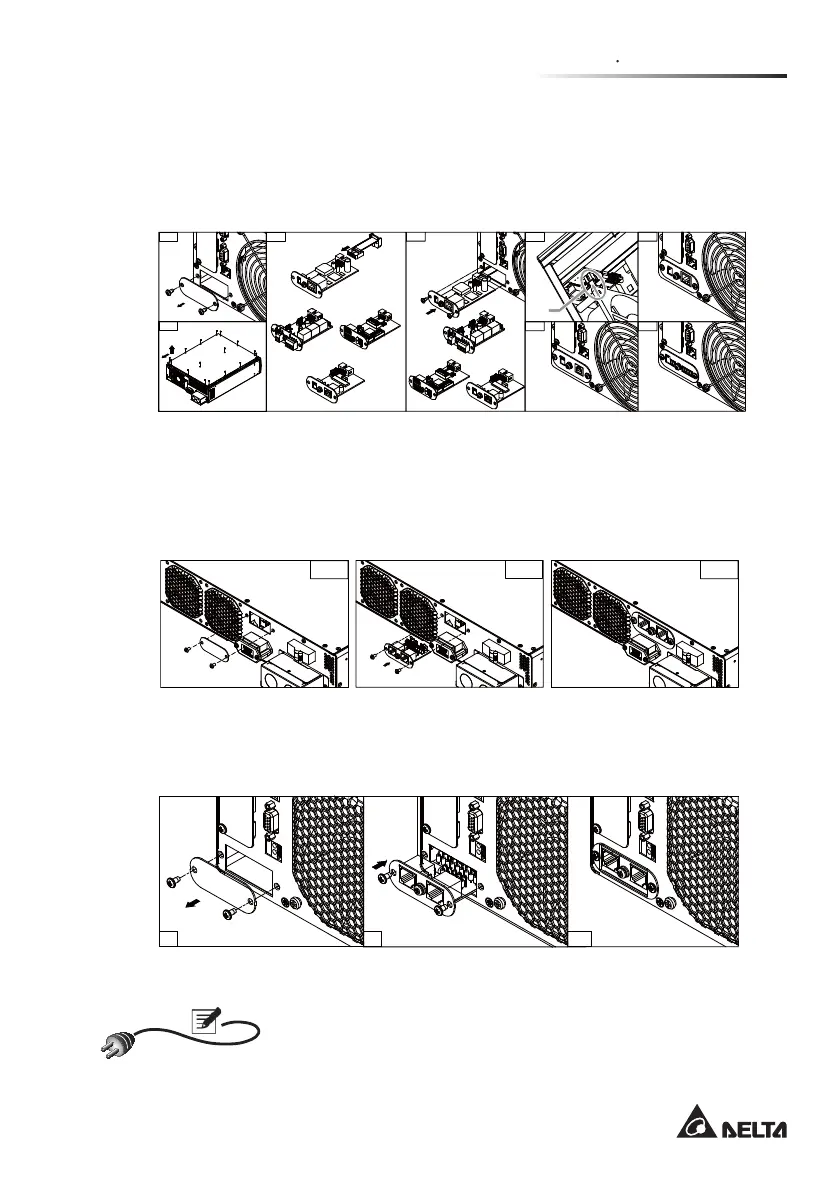

Chapter 6 Optional Accessories
25
4) Insert the Mini SNMP/ Mini Relay I/O/ Mini USB/ Mini ModBus card into the slot and
tighten the screws. (Picture 4)
5) Insert the other end of the at cable into CNG3. (Picture 5)
6) Replace the top cover and tighten the screws. (Picture 6/ 6-1/ 6-2)
z
Mini TVSS Card Installation:
1. For 5kVA/ 6kVA UPS:
1) Remove the SMART SLOT cover from the rear panel. (Picture 1)
2) Insert the Mini TVSS card into the slot and tighten the screws. (Picture 2/ 2-1)
2. For 10kVA UPS:
1) Remove the SMART SLOT cover from the rear panel. (Picture 1)
2) Insert the Mini TVSS card into the slot and tighten the screws. (Picture 2/ 2-1)
TVSS
1
2
2-1
1
2 2-1
NOTE:
Please contact your local dealer for more information about the optional cards.
1
2
3
MINI SNMP CARD
MINI RELAY CARD
MINI USB CARD
4 5
6
6-1 6-2
MINI RELAY CARD
MINI SNMP CARD
MINI USB CARD
MINI MODBUS CARD
CNG3
To Next Page
