9

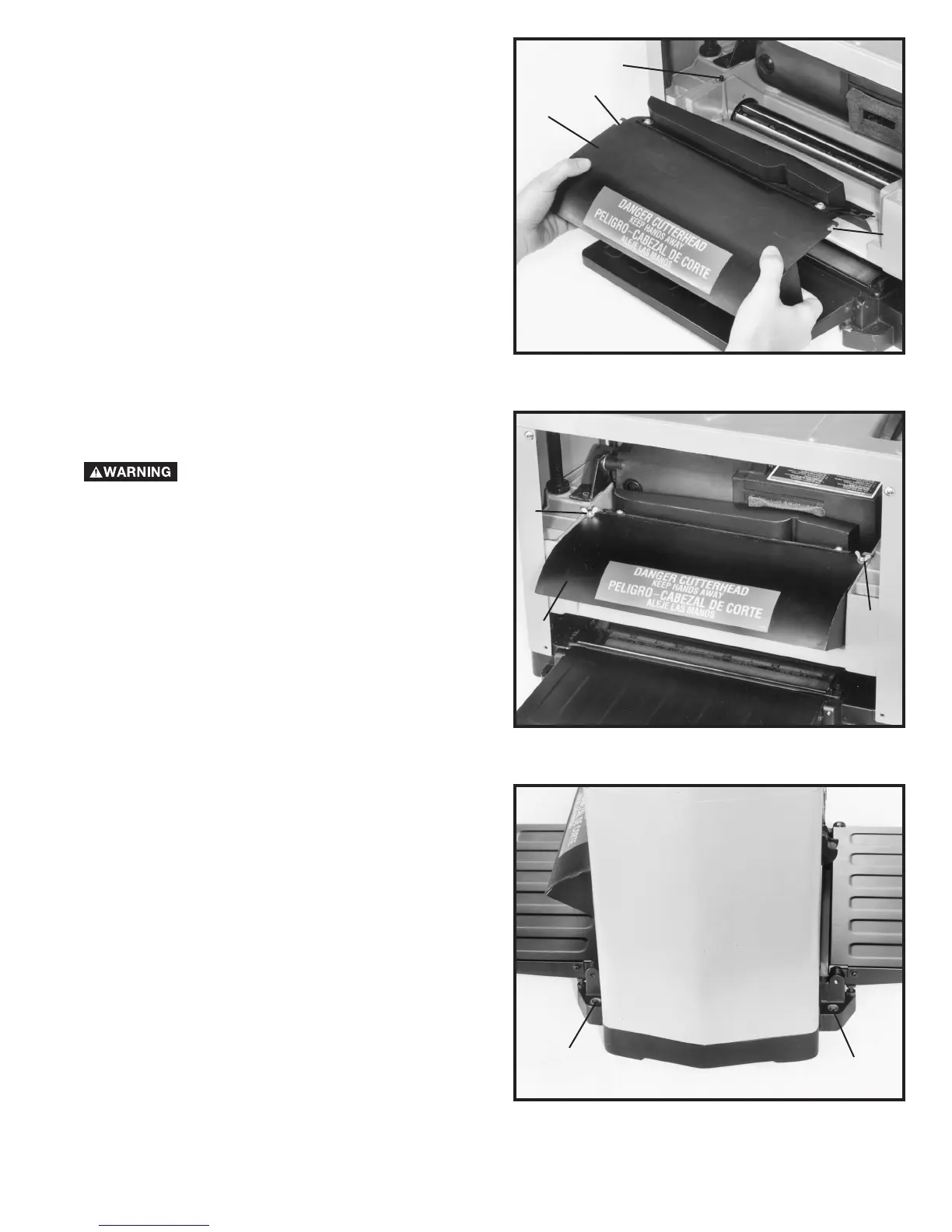

Fig. 7
Fig. 8
Fig. 9
CHIP DEFLECTOR
1. Assemble chip deflector (A) Fig. 7, to the planer by
inserting end of chip deflector over the top of the
cutterhead. Make certain the two screws, one of which
is shown at (B) are inserted upward through the two
slots (C) in the chip deflector.
2. Fasten chip deflector (A) Fig. 8, to planer using two
M5 flat washers and M5 wing nuts (D).
MAKE SURE THAT THE CHIP
DEFLECTOR IS PROPERLY SECURED WITH THE
WING NUTS BEFORE OPERATING THE TOOL.
FASTENING PLANER TO
SUPPORTING SURFACE
During operation, if there is any tendency for the planer
to tip over, slide or “walk” across the supporting surface,
the planer must be secured to the supporting surface
through the four holes in the base, two of which are
shown at (A) Fig. 9.
D
D
C
C
B
A
A
A
A
