16

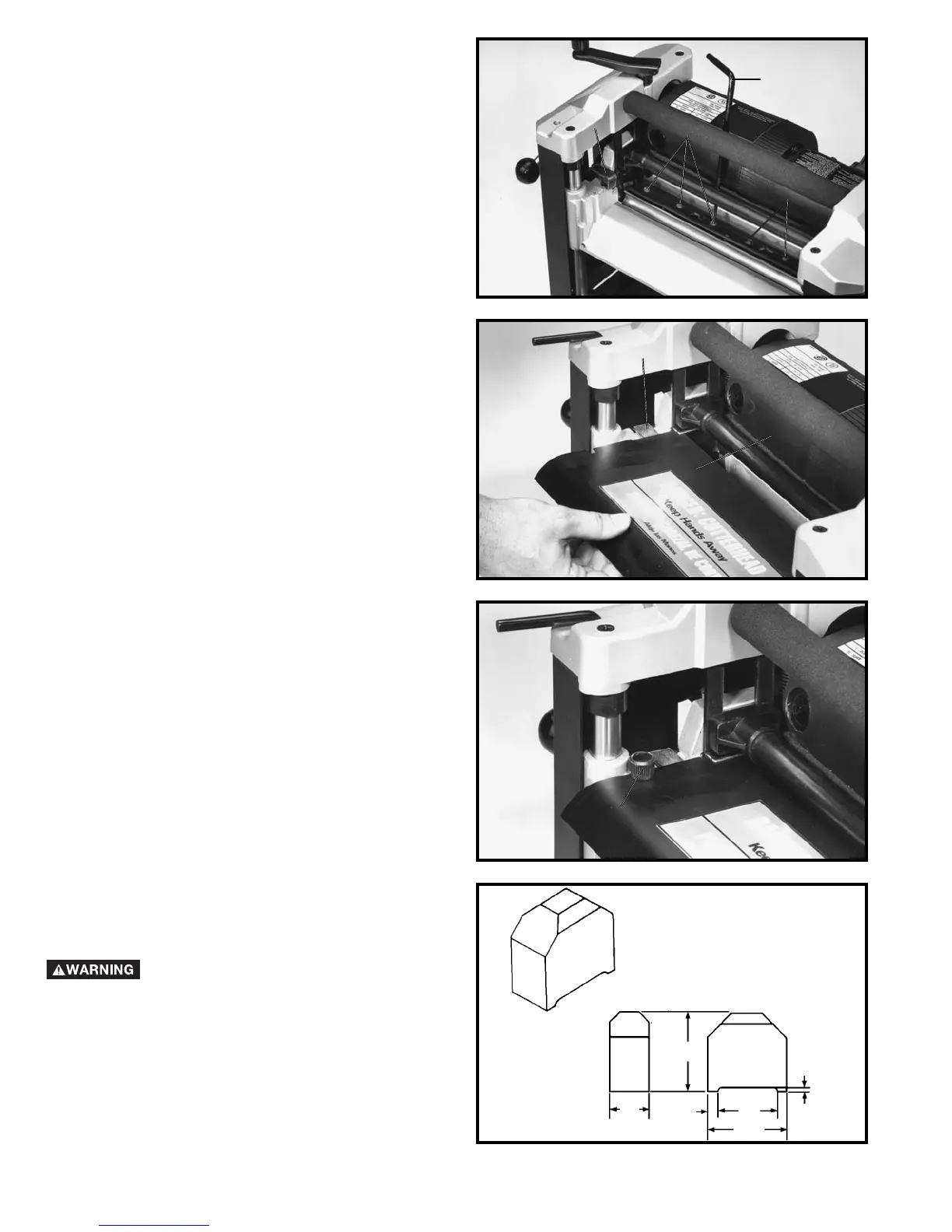

9. Remove knife transfer tool and tighten the six
screws, five of which are shown at (F) Fig. 30, using
wrench (E) supplied.
10. Replace other knife by rotating head 180 degrees and
repeat STEPS 5 THROUGH 10.
11. Replace cutterhead guard (B) Fig. 31, making sure
cutterhead lock (D) is depressed and underneath guard
as shown. Slide guard in as far as possible and replace
two screws, one of which is shown at (A) Fig. 32. These
screws were removed in STEP 3.
ADJUSTING HEIGHT
OF OUTFEED ROLLER
DISCONNECT MACHINE FROM
POWER SOURCE.
1. The outfeed roller is adjusted at the factory to be
0.020" below the cutting circle. In order to check and
adjust the outfeed roller, you will need a homemade
gage block made of hardwood. This gage block can be
constructed by following the dimensions shown in
Fig. 33. NOTE: Make sure that the height of the block
is exactly 4 ".
Fig. 30
Fig. 31
Fig. 32
Fig. 33
2"
1
/
2
"
1
/
4
"
4"
3"
4"
E
F
F
D
D
B
A
