FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE
ENTIRE INSTRUCTION MANUAL.

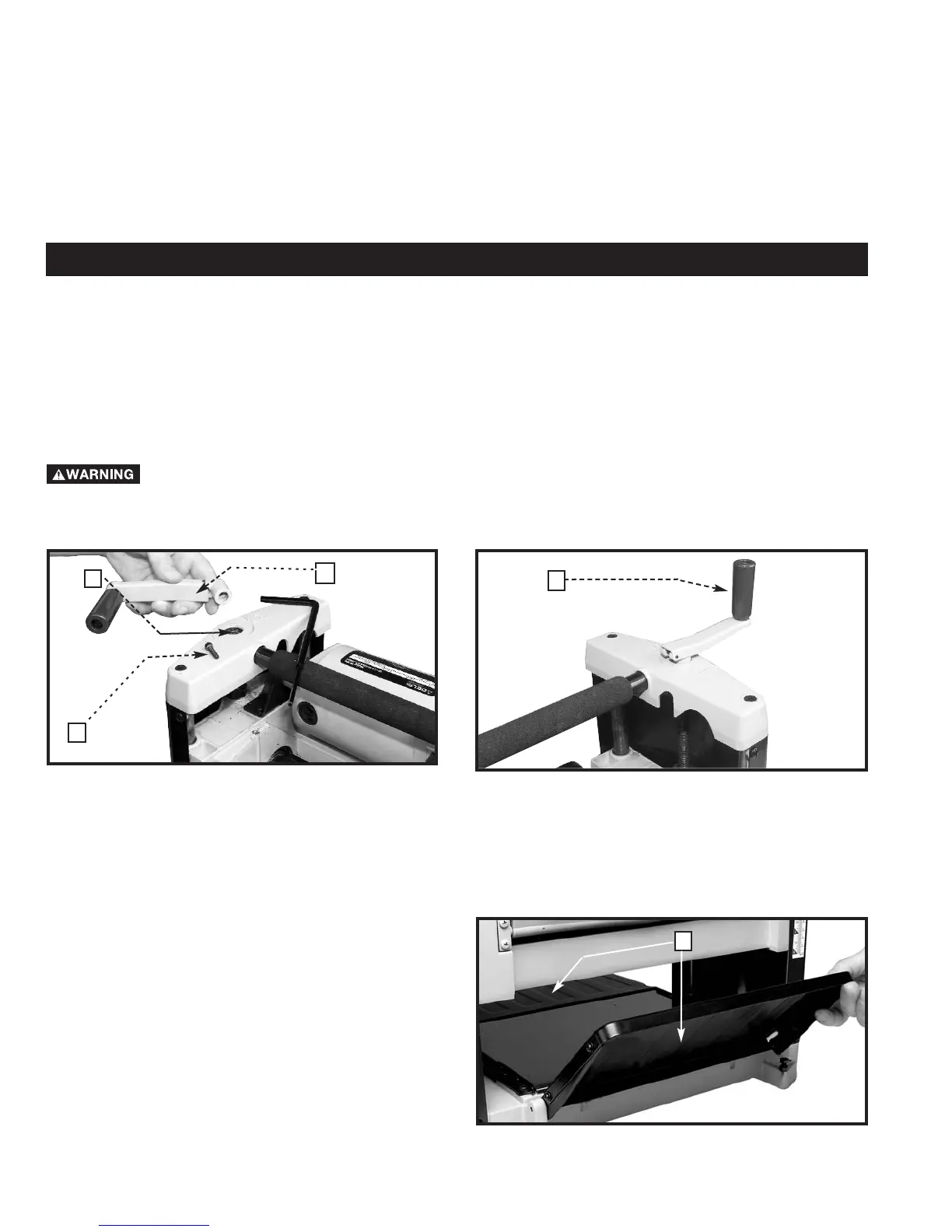

Fig. 4 Fig. 5
RAISING AND LOWERING HANDLE
Attach the raising and lowering handle (A) Fig. 4 to the shaft (B) and fasten in place with M5x20mm screw (C). NOTE:
Ensure that the flats of the handle and the flats on the shaft are aligned. Flip handle (A) upward as shown in Fig. 5.
B
C
A
A
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
ASSEMBLY TIME ESTIMATE - 30 minutes
Fig. 6
LOWERING EXTENSION TABLES
The infeed and outfeed extension tables (A) Fig. 6 are
shipped attached to the machine in the raised position.
Lower the tables (A) on both sides of the planer
(Fig. 6). The top surface of extension tables should be
level with the planer table. To check and adjust, refer to
the section “LEVELING EXTENSION TABLES” in this
manual.
A
* 5mm wrench (included)
