Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-02-18
Factory Setting: 0.000
Settings 0.000~65.000 sec

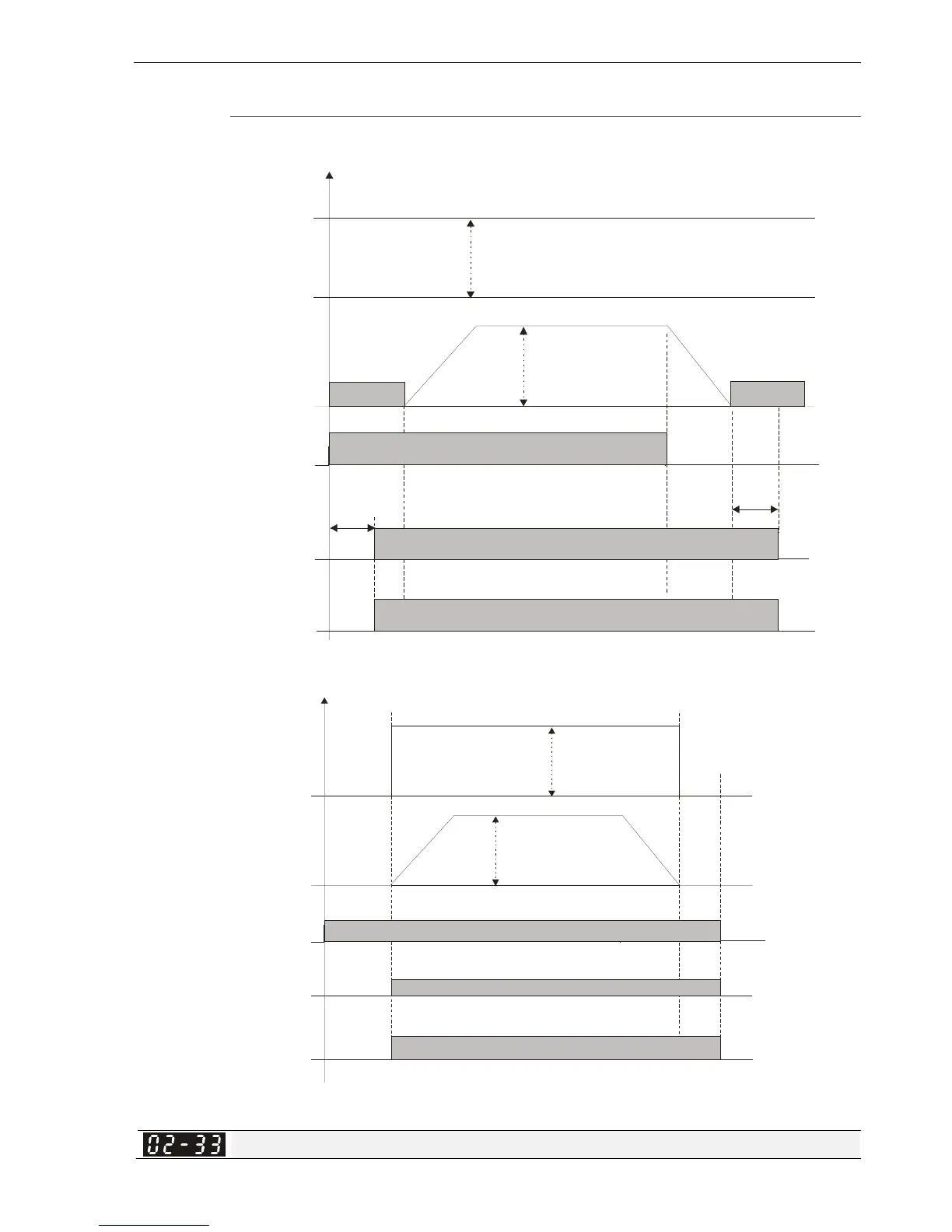

 When the AC motor drive runs after Pr.02-32 delay time, the corresponding multi-function output
terminal (12: mechanical brake release) will be ON. It has to use this function with DC brake.
RUN
STOP
A
B=A
Multi-function output
(mechanical brake release)
Pr.02-11 to 02-14=d12
Output
frequency
DC brake
07-02
DC brake
time during
start-up
07-03
DC brake
time during
stopping
Mechanical brake
02-32 brake delay time
bounce time of mechanical brake
RUN/STOP
braked
release
frequency
command
braked
DC brake
Time
 If this parameter is used without DC brake, it will be invalid. Refer to the following operation
timing.
Multi-function output
(mechanical brake
release)
Pr.02-11 to 02-14=d12
RUN
STOP
A
B=A
zero
speed
zero
speed
Time
frequency
command
output
frequency
RUN/STOP
mechanical brake
brake
brake
release

Output Current Level Setting for Multi-function Output Terminals
