Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-03-25
 The 3 parameters (Pr03-51, Pr03-53 and Pr03-53) must meet the following argument: P03-51 <
P03-53 < P03-55. The 3 proportional points (Pr03-52, Pr03-54 and Pr03-56) doesn’t have any
limit. Between two points is a linear calculation. The ACI and AVI2 are same as AVI1.
 The output % will become 0% when the AVI input value is lower than low point setting.

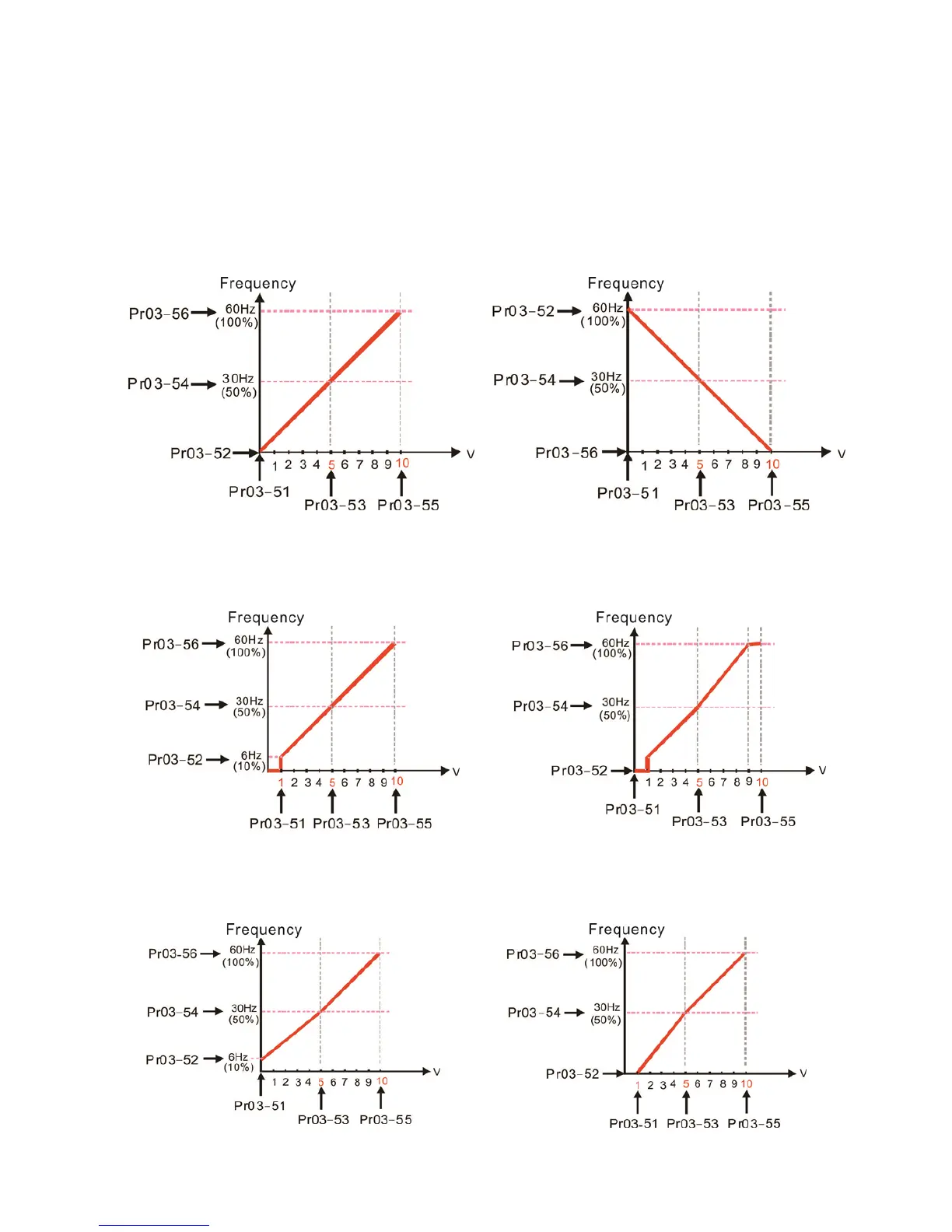

For example:
Pr 03-51=0V；Pr 03-52=0%
Pr 03-53=5V；Pr 03-54=50%
Pr 03-55=10V；Pr 03-56=100%
Pr 03-51=0V；Pr 03-52=100%
Pr 03-53=5V；Pr 03-54=50%
Pr 03-55=10V；Pr 03-56=0%
Pr 03-51=1V；Pr 03-52=10%
Pr 03-53=5V；Pr 03-54=50%
Pr 03-55=10V；Pr 03-56=100%
Pr 03-51=1V；Pr 03-52=10%
Pr 03-53=5V；Pr 03-54=50%
Pr 03-55=9V；Pr 03-56=100%
Pr 03-51=0V；Pr 03-52=10% Pr 03-51=1V；Pr 03-52=0%
Pr 03-53=5V；Pr 03-54=50% Pr 03-53=5V；Pr 03-54=50%
Pr 03-55=10V；Pr 03-56=100% Pr 03-55=10V；Pr 03-56=100%
