Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-03-27
Positive AVI2 Voltage Mid Point
Factory Setting: 5.00
Settings 0.00~10.00V
Positive AVI2 Voltage Proportional Mid Point
Factory Setting: 50.00
Settings 0.00%~100.00%
Positive AVI2 Voltage High Point
Factory Setting: 10.00
Settings 0.00~10.00V
Positive AVI2 Voltage Proportional High Point
Factory Setting: 100.00
Settings 0.00%~100.00%
When AVI2 Selection (Pr03-28) is AVI1, the setting range of Pr03-51, Pr03-52, Pr03-55 have to
be 0.00~10.00 or 0.00~20.00.
When ACI Selection (Pr03-29) is AVI1, the setting range of Pr03-57, Pr03-59 and Pr03-61 have to
be 0.00~10.00 or 0.00~20.00.

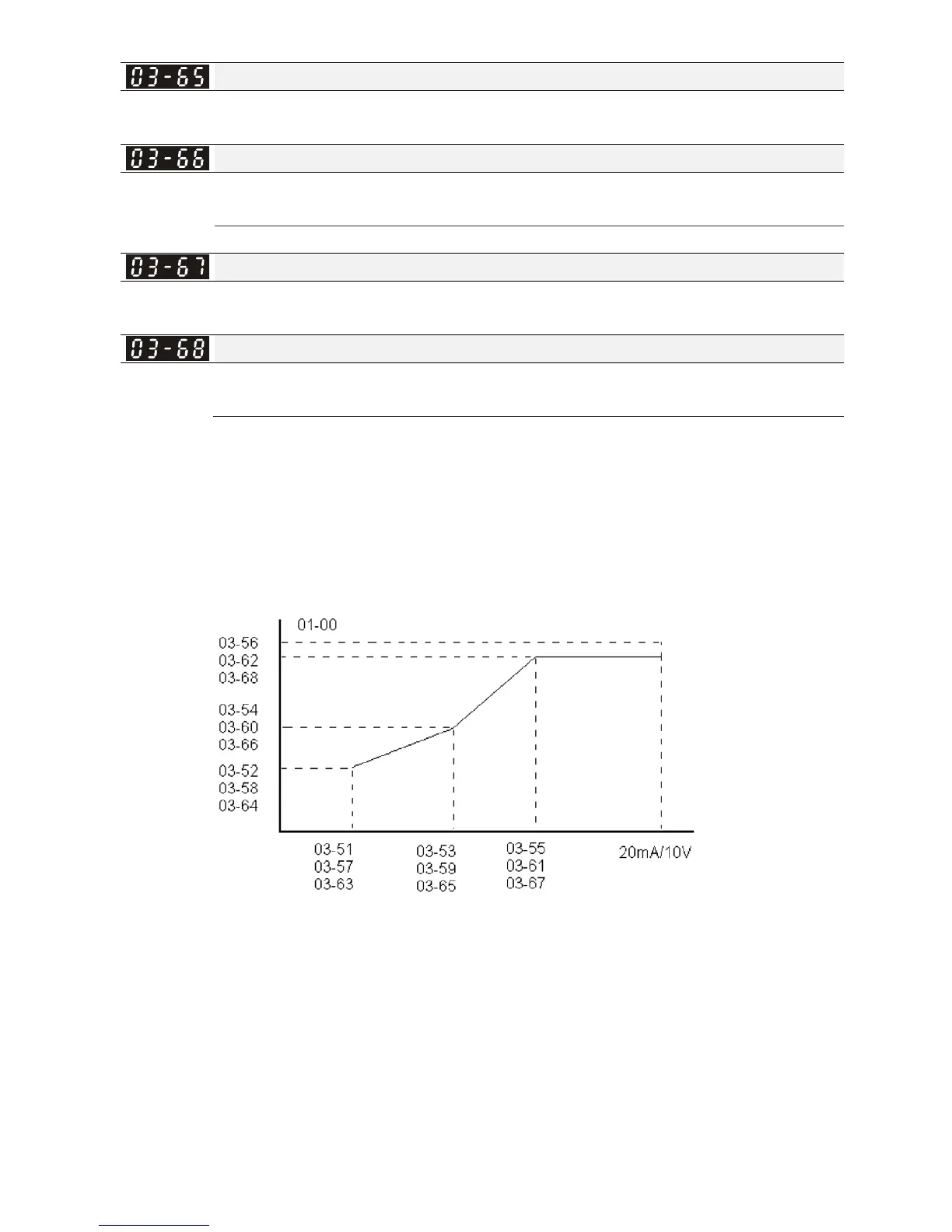

The analog input values can be set at Pr03-51 ~ Pr03-68 and the maximum operating frequency
can be set at Pr01-00. The corresponding functions of open-loop control are shown as image
below.
