Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-04-1
04 Multi-Step Speed Parameters This parameter can be set during operation.

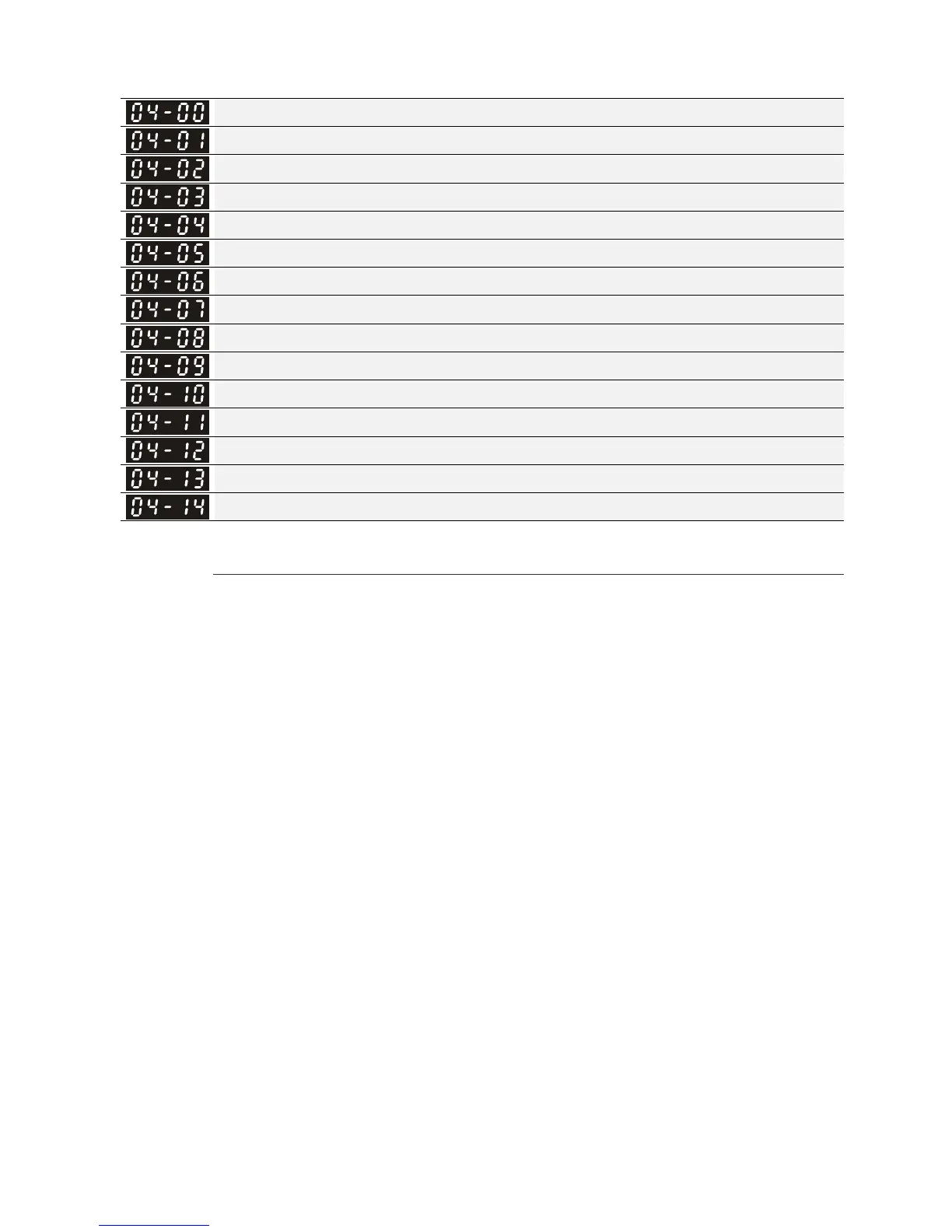

1st Step Speed Frequency
2nd Step Speed Frequency
3rd Step Speed Frequency
4th Step Speed Frequency
5th Step Speed Frequency
6th Step Speed Frequency
7th Step Speed Frequency
8th Step Speed Frequency
9th Step Speed Frequency
10th Step Speed Frequency
11th Step Speed Frequency
12th Step Speed Frequency
13th Step Speed Frequency
14th Step Speed Frequency
15th Step Speed Frequency
Factory Setting: 0.00
Settings 0.00~599.00Hz
The Multi-function Input Terminals (refer to setting 1~4 of Pr.02-01~02-08 and 02-26~02-31) are
used to select one of the AC motor drive Multi-step speeds (max. 15 speeds). The speeds
(frequencies) are determined by Pr.04-00 to 04-14 as shown in the following.
The run/stop command can be controlled by the external terminal/digital keypad/communication
via Pr.00-21.
Each one of multi-step speeds can be set within 0.00~600.00Hz during operation.
Explanation of the timing diagram for multi-step speeds and external terminals
The Related parameter settings are:
1. Pr.04-00~04-14: setting multi-step speeds (to set the frequency of each step speed)
2. Pr.02-01~02-08, 02-26~02-31: setting multi-function input terminals (multi-step speed 1~4)
Related parameters: 01-22 JOG Frequency, 02-01 Multi-function Input Command 1 (MI1),
02-02 Multi-function Input Command 2 (MI2), 02-03 Multi-function Input Command 3 (MI3),
02-04 Multi-function Input Command 4 (MI4)
