Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-06-5
4: Stop after Over-torque detection during RUN
 When Pr.06-06 and Pr.06-09 are set to 1 or 3, it will display a warning message and won’t have
an abnormal record.
 When Pr.06-06 and Pr.06-09 are set to 2 or 4, it will display a warning message and will have an
abnormal record.

Over-torque Detection Level (OT1)
Factory Setting: 120
Settings 10 to 200% (100%: drive’s rated current)

Over-torque Detection Level (OT1)
Factory Setting: 0.1
Settings 0.1~60.0 sec

Over-torque Detection Level (OT2)
Factory Setting: 120
Settings 10 to 200% (100%: drive’s rated current)

Over-torque Detection Time (OT2)
Factory Setting: 0.1
Settings 0.1~60.0 sec

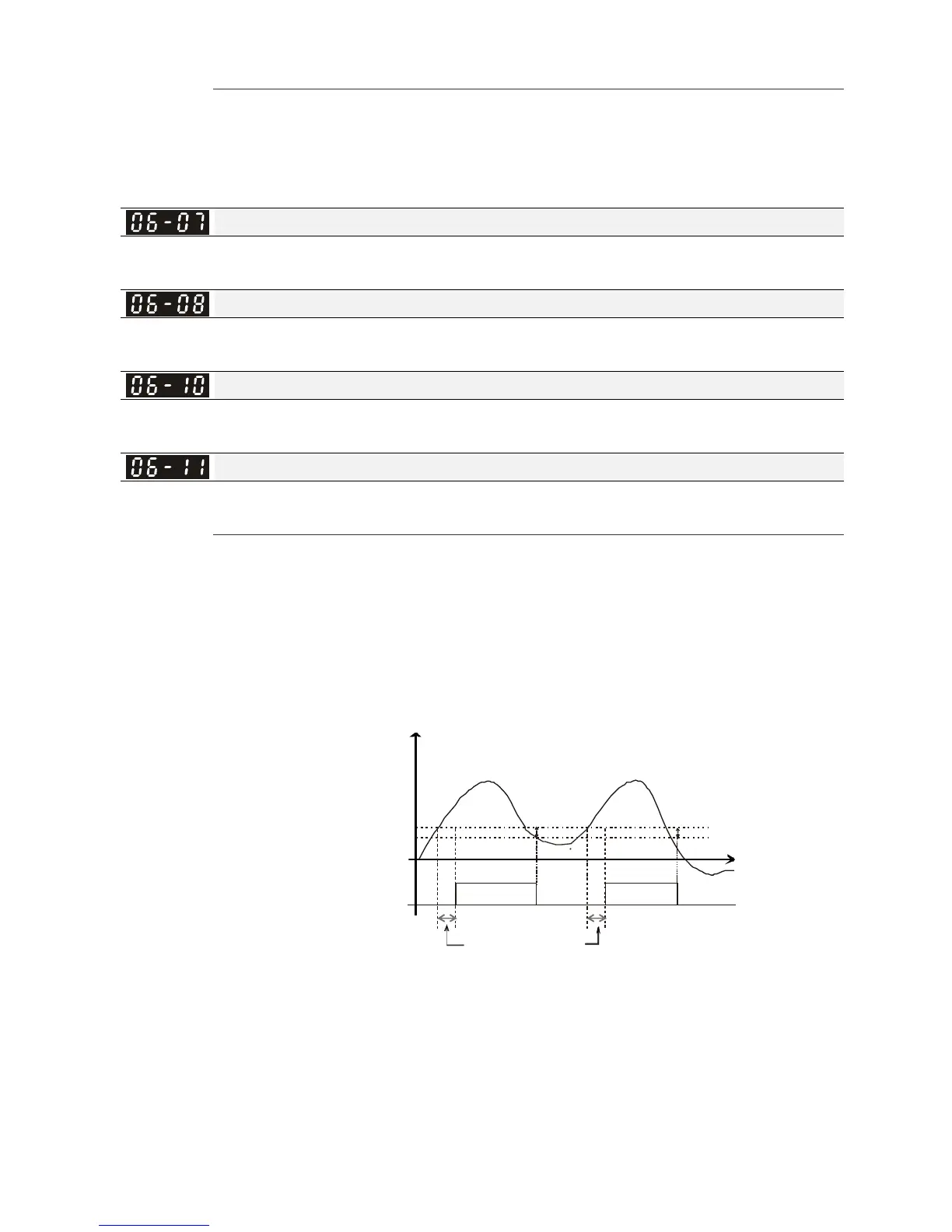

 When the output current exceeds the over-torque detection level (Pr.06-07 or Pr.06-10) and also
exceeds Pr.06-08 or Pr.06-11, the over torque detection will follow the setting of Pr.06-06 and
Pr.06-09.
 When Pr.06-06 or Pr.06-09 is set to 1 or 3, the motor drive will have the ot1/ot2 warning after
Over Torque Detection, while the motor drive will keep running. The warning will be off only until
the output current is smaller than the 5% of the over-torque detection level (Pr.06-07 and
Pr.06-10).
06-07(06-10)
ON O N
06- 07(0 6-10)* 9 5%
Output current
Over-torque
detection level
Multi-function output
terminal=7 or 8
Over-torque
detection time
06-08(06-11)
 When Pr.06-06 or Pr.06-09 is set to 2 or 4, the motor drive will have the ot1/ot2 fault after Over
Torque Detection. Then the motor drive stop running until it is manually reset.
