Chapter 12 Description of Parameter Settings|CFP2000 Series
12.1-06-15


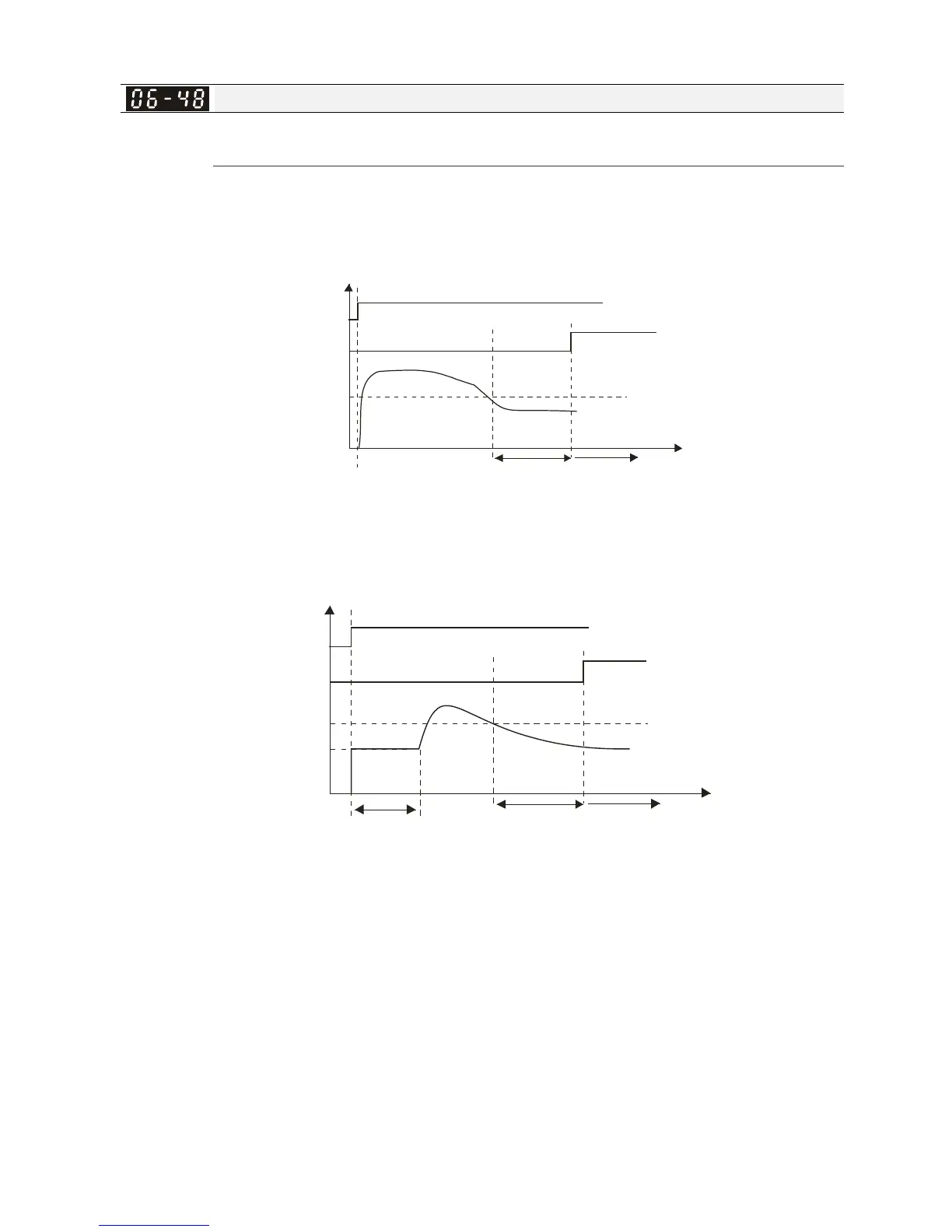

Output phase loss detection function executing time before run
Factory Setting:0.000
Settings 0.000~65.535 sec
 When Pr.06-48 is 0, OPHL detection function will be disabled
 Status 1：Motor drive is in operation
Any phase is less than Pr.06-47 setting level, and exceeds Pr.06-46 setting time, motor drive
will perform Pr.06-45 setting.
Pr.06-46
Pr.06-47
OPHL
D
ri
v
e
’
s s
t
a
t
u
s
OPHL detection
Outpu t current Time
Operation command
When OPHL, Pr06-45 acts
 Status 2：Motor drive is in stop; Pr.06-48=0 ; Pr.07-02≠0
After motor drive starts, DC brake will be applied in accord to Pr.07-01 and Pr.07-02. During this
period, OPHL detection will not be conducted. After DC brake, motor drive starts to run, and
conducts the OPHL protection as mentioned in status 1.
Pr.06-46
Pr.06-4 7
OPHL
Pr.07-0 1
P
r
.
0
7
-
0
2
D
r
ive
’
s s
t
a
t
u
s
Operation command
OPHL detection
Output current Time
When OPHL, Pr06-45 acts
 Status 3: Motor drive is in stop; Pr.06-48≠0 ; Pr.07-02≠0
When motor drive starts, it will perform Pr.06-48 and then Pr.07-02 (DC brake). DC brake
current level in this status includes two parts, one is 20 times of Pr.06-47 setting value in
Pr.06-48 setting time, and Pr.07-02 setting value in Pr.07-01 setting time. Total DC brake time is
T=Pr.06-48+Pr.07-02.
In this period, if OPHL happens, motor drive starts to count Pr.06-48/2 time, motor drive will
perform Pr.06-45 setting.
