Chapter 5 Main Circuit Terminals|CFP2000 Series
5-7

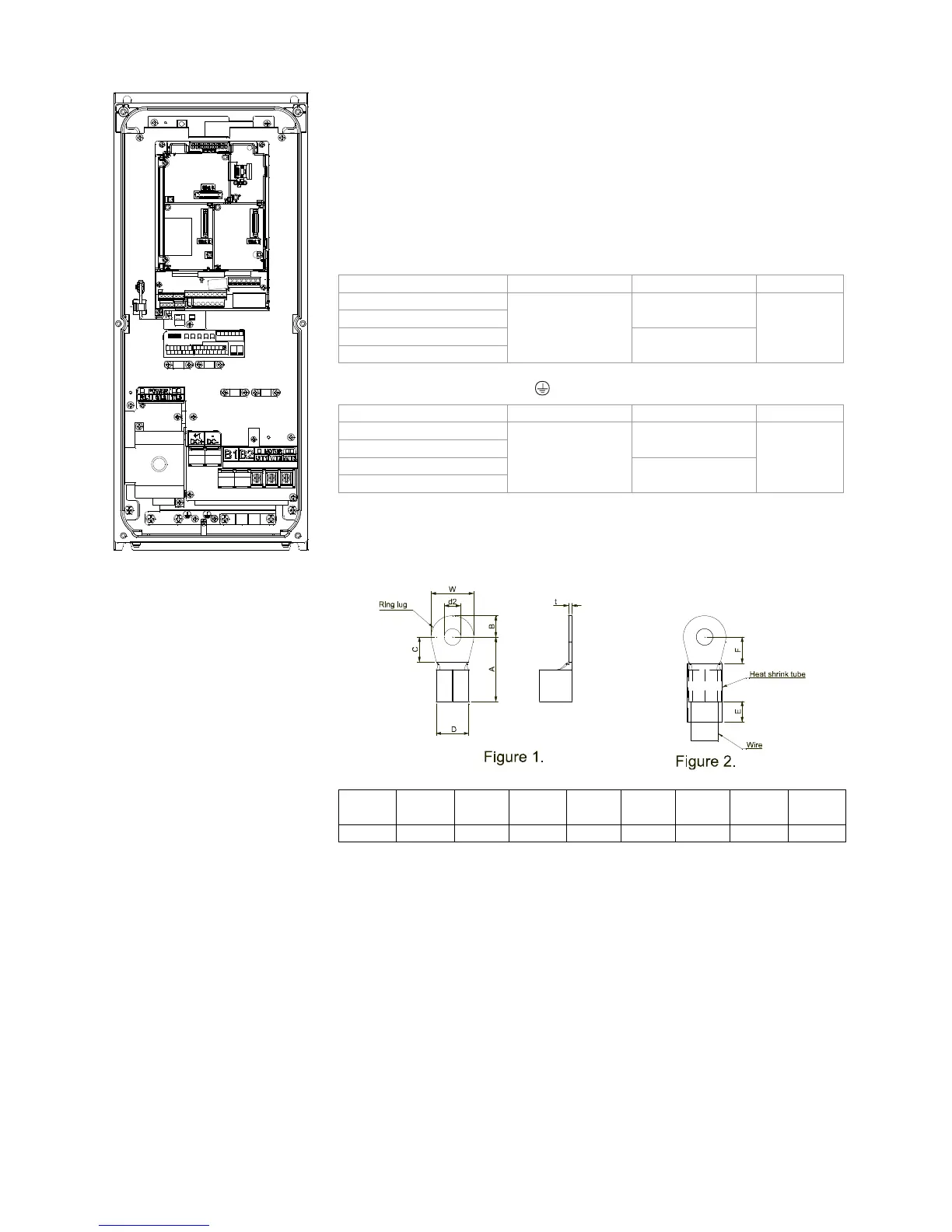

Frame B
Main circuit terminals:
z If you install at Ta 40°C above environment, please select copper wire
which have voltage rating 600V and temperature resistant 90°C or above.
z If you install at Ta 40°C environment, please select copper wire which
have voltage rating 600V and temperature resistant 75°C or 90°C.
z For UL installation compliant, you have to use copper wires when
installation, the wire gauge is based on temperature resistant 75°C which
is according to the requirements and recommendations from UL. Do not
reduce the wire gauge when using higher temperature wire.
R/L1, S/L2, T/L3,
Models Max. Wire Gauge Min. Wire Gauge Torque
VFD110FP4EA-52S
6 AWG [13.3mm
2
]
8 AWG
[8.4mm
2
]
21kg-cm
[18.2lb-in.]
[2.06Nm]
VFD150FP4EA-52S
VFD185FP4EA-52S
6 AWG
[13.3mm
2
]
VFD220FP4EA-52S
U/T1, V/T2, W/T3, B1, B2, ，DC-，DC+
Models Max.
ire Gauge Min. Wire Gauge Torque
VFD110FP4EA-52S
6 AWG [13.3mm
2
]
8 AWG
[8.4mm
2
]
M5.0
25kg-cm
[21.7lb-in.]
[2.45Nm]
VFD150FP4EA-52S
VFD185FP4EA-52S
6 AWG
[13.3mm
2
]
VFD220FP4EA-52S
; It needs following additional terminal when wiring. The additional
terminal dimension should comply with the following figure 1.
; After crimping the wire to the ring lug (must UL approved), UL and CSA
approved R/C(YDPU2) heat shrink tubing rated min 600Vac insulation
shall be install over the live part.
A
(MAX)
B
(MAX)
C
(min)
D
(MAX)
d2
(min)
E
(min)
F
(min)
W
(MAX)
T
(MAX)
23.8 6.0 13.3 9.0 5.3 11.0 13.3 12.0 1.5
Unit: mm
