Chapter 10 Digital KeypadMS300 (High Speed Model)
10-7

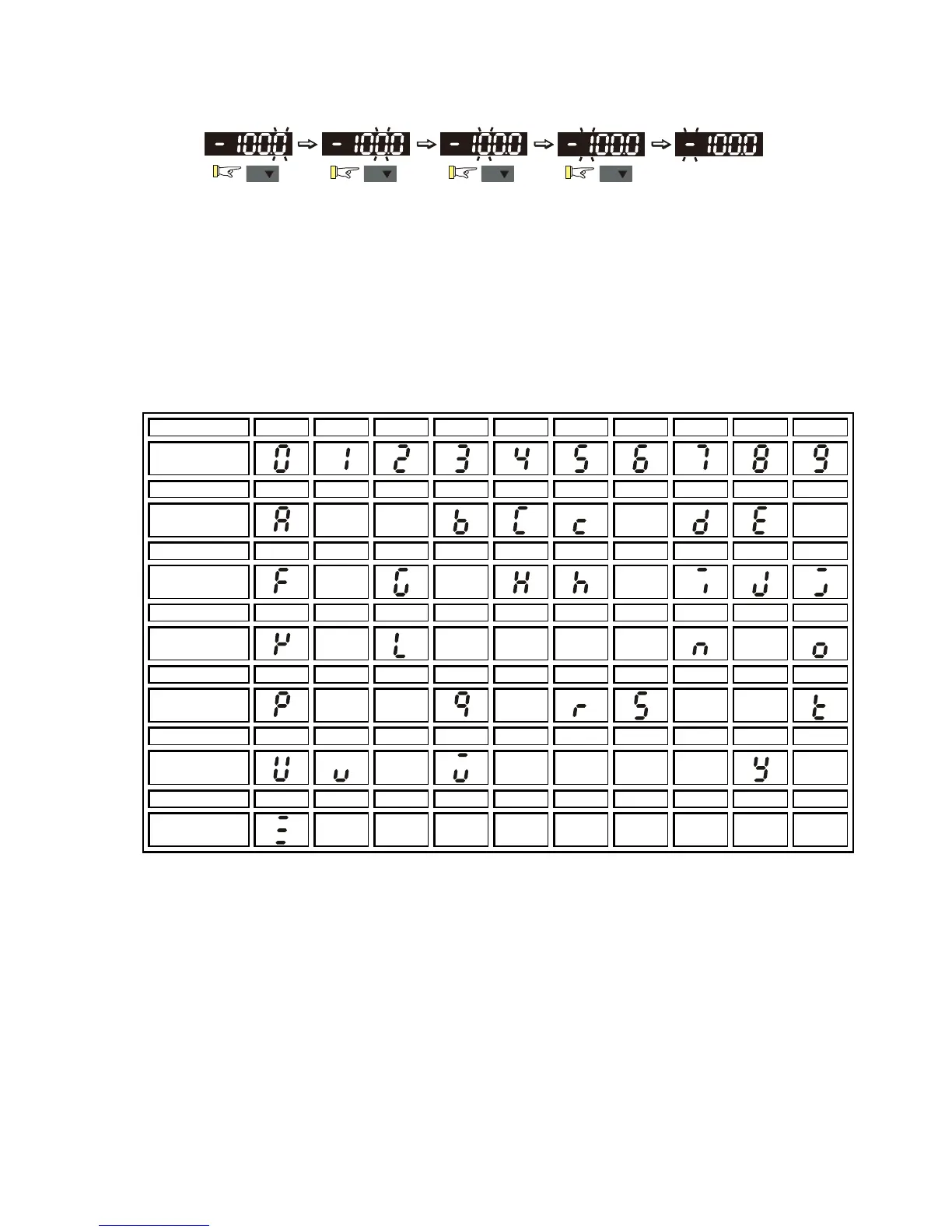

E.g.: The default setting of Pr. 03-74 is -100.0. After pressing MODE key for >2 seconds to
enable the left shift function, pressing LEFT/DOWN key will be as shown below:
<
/
<
/
<
/
<
/
If the parameter is adjusted upwards, the display will show [-99.99].
The upper setting limit of Pr. 03-74 is 100.0 and lower limit is -100.0. If a value >100.0 or
<-100.0 is set, the display will show [Err] after ENTER, and then the display will show the
upper limit [100.0] or lower limit [-100.0] for a second to remind user of exceeding the upper
or lower limit. Then the original value will kept unchanged. The cursor will return to the last
digit.
Reference Table for the 7-segment LED Display of the Digital Keypad
Number 0 1 2 3 4 5 6 7 8 9
Display
Number A a B b C c D d E e
Display
－ －
－
－
Number F f G g H h I i J j
Display
－
－ －
Number K k L l M m N n O o
Display
－
－ － － －
－
Number P p Q q R r S s T t
Display
－ －
－ － －
Number U u V v W w X x Y y
Display
－
－ － － － －
Number Z z
Display
－
