Chapter 10 Digital KeypadMS300 (High Speed Model)
10-6

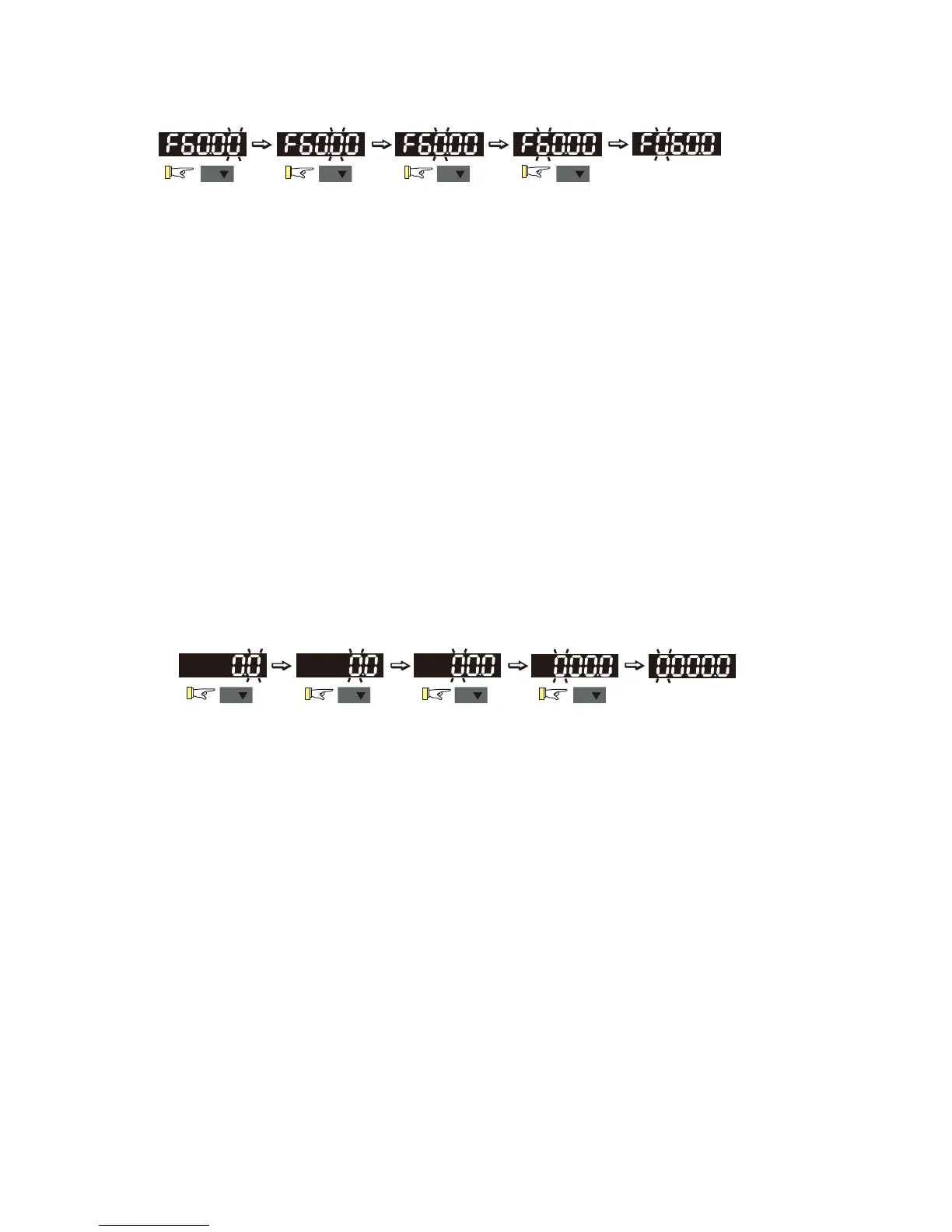

E.g.: The default setting of Pr. 01-00 is 60.00. After pressing MODE key for >2 seconds to enable
the left shift function, pressing LEFT/DOWN key will be as shown below:
<
/
<
/
<
/
<
/
The upper setting limit of Pr. 01-00 is 599.00. If a value >599.00 is set, the display will show
[Err] after ENTER, and then the display shows the upper limit [599.00] for a second to remind
user of exceeding the maximum setting. Then the original value will kept unchanged. The
cursor will return to the last digit.
D-2. Signed parameter setting status 1
(parameter setting range has no or one decimal place, e.g. Pr. 03-03)
1. Left shift key function disabled: Press UP or LEFT/DOWN key to adjust the value
2. Left shift key function enabled: Last digit blinks. Press UP key to increase the value of this
digit. Back to 0 after 9
3. Press LEFT/DOWN key, the blinking digit will shift left one digit. When shifting to the first
digit and pressing the UP key, the digit “0” will change to “minus”
4. After the parameter is set, the left shift key function will not be disabled automatically. It
has to be disabled by the user
E.g.: The default setting of Pr. 03-03 is 0.0. After pressing MODE key for >2 seconds to
enable the left shift function, pressing LEFT/DOWN key will be as shown below:
<
/
<
/
<
/
<
/
The upper setting limit of Pr.03-03 is 100.0 and the lower limit is -100.0. If a value >100.0 or
<-100.0 is set, the display will show [Err] after ENTER, and then the display will show the
upper limit [100.0] or lower limit [-100.0] for a second to remind user of exceeding the upper or
lower limit. Then the original value will kept unchanged. The cursor will return to the last digit.
D-3. Signed parameter setting status 2
(parameter setting range has two decimal places, e.g. Pr. 03-74)
1. Left shift key function disabled: Press UP or LEFT/DOWN key to adjust the value
2. Left shift key function enabled: Last digit blinks. Press UP key to increase the value of this
digit. Back to 0 after 9
3. Press LEFT/DOWN key, the blinking digit will shift left one digit. When shifting to the first
digit and pressing the UP key, the digit “0” will change to “minus”
4. For parameters in 2 decimals and a positive/negative setting range, values >99.99 or
<-99.99 will be shown in 1 decimal, e.g. 100.0 or -100.0
5. After the parameter is set, the left shift key function will not be disabled automatically. It
has to be disabled by the user
