Chapter 16 PLC Function ApplicationsMS300 (High Speed Model)
16-5
16-3 Turn on
16-3-1 Connect to PC

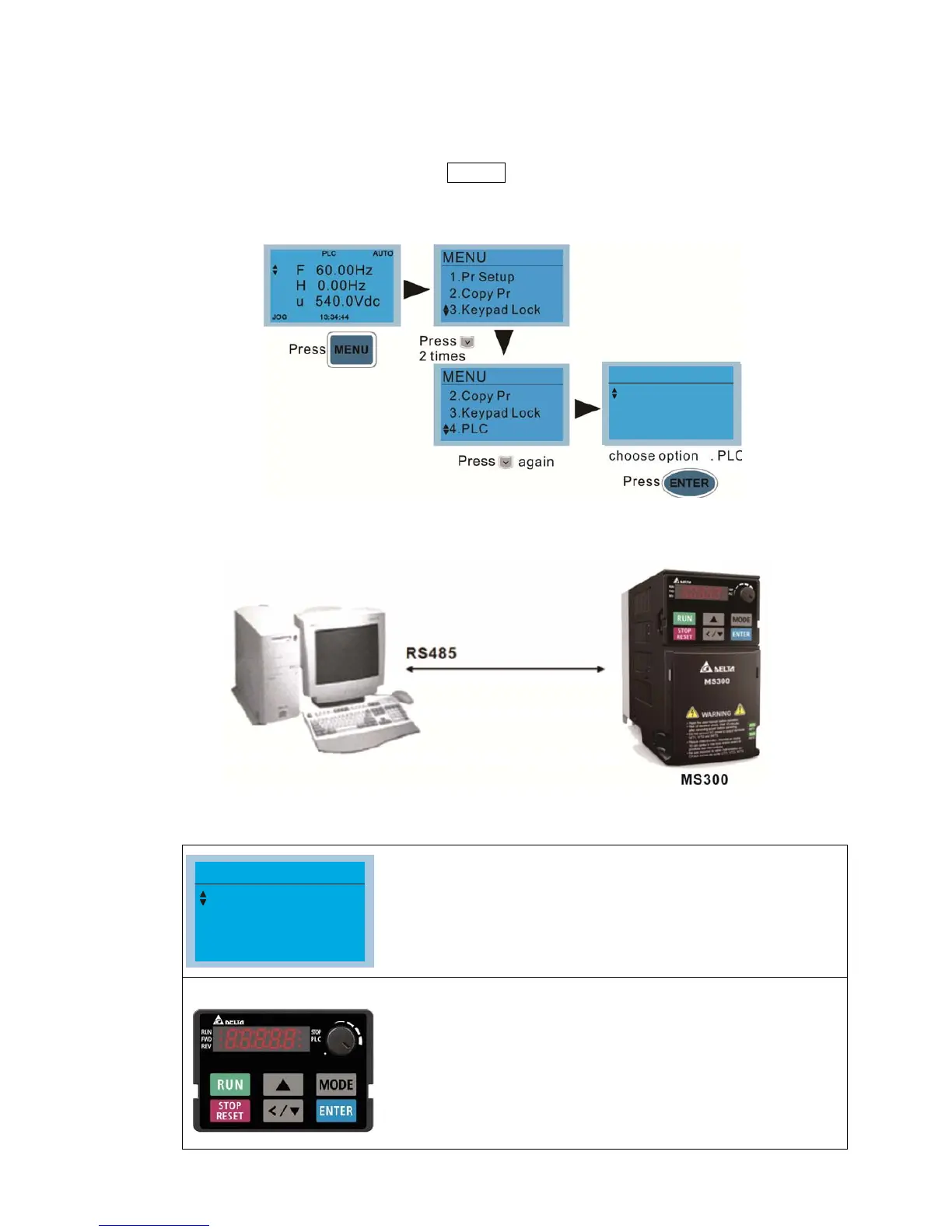

Start operation of PLC functions in accordance with the following four steps
After pressing the Menu key and selecting 4: PLC on the KPC-CC01 digital keypad (optional),
press the Enter key (see figure below).
PLC
1.Disable
2.PLC Run
3.PLC Stop
2
1. Wiring: Connect the drive's RJ-45 communications interface to a PC via the RS485
2. PLC function usage
PLC
1.Disable
2.PLC Run
3.PLC Stop
PLC functions are as shown in the figure on the left;
select item 2 and implement PLC functions.
1: No function (Disable)
2: Enable PLC (PLC Run)
3: Stop PLC functions (PLC Stop)
Digital keypad (KPMS-LE01)
PLC 0: Do not implement PLC functions
PLC 1: Initiate PLC Run
PLC 2: Initiate PLC Stop
