Delta VFD9A0MS43ANSHA User Manual

Chapter 7 Optional AccessoriesMS300 (High Speed Model)
7-9

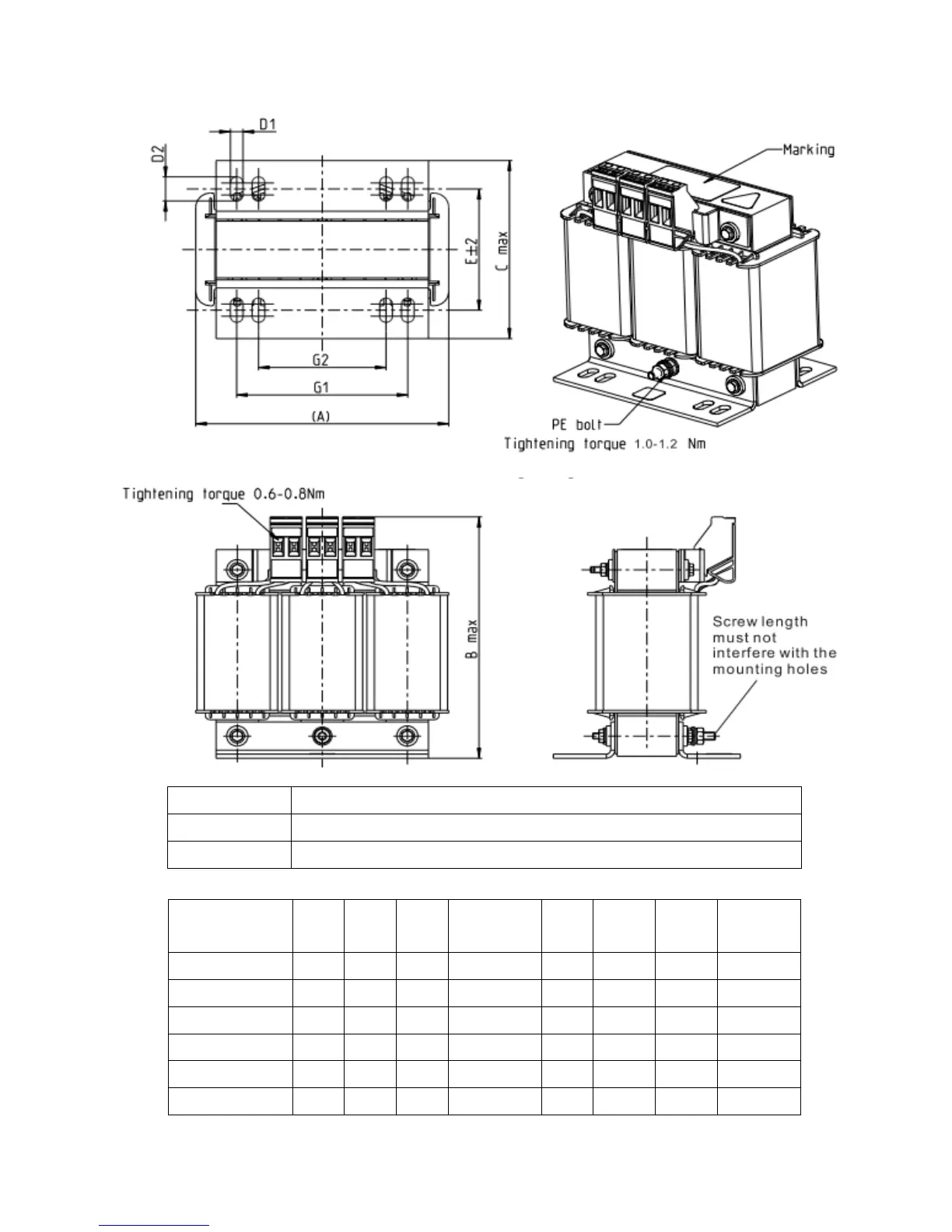

AC input reactor dimension and specification:
Screw Location Torque
Terminal 5.32~7.09 kg-cm / [6.12~8.16 lb-in.] / [0.6~0.8 Nm]
PE bolt 8.86~10.63 kg-cm / [10.2~12.24 lb-in.] / [1.0~1.2 Nm]
Input AC reactor
Delta part #
A B C D1*D2 E G1 G2 PE D
DR005A0254
96 100 60 6*9 42 60 40 M4
DR008A0159
120 120 88 6*12 60 80.5 60 M4
DR011A0115
120 120 88 6*12 60 80.5 60 M4
DR017AP746
120 120 93 6*12 65 80.5 60 M4
DR025AP507
150 150 112 6*12 88 107 75 M4
DR033AP320
150 150 112 6*12 88 107 75 M4
Unit: mm
