Delta VFD9A0MS43ANSHA User Manual

Chapter 7 Optional Accessories  MS300 (High Speed Model)
7-12
Screw Location Torque
Terminal 5.32~7.09 kg-cm / [6.12~8.16 lb-in.] / [0.6~0.8 Nm]
PE bolt 8.86~10.63 kg-cm / [10.2~12.24 lb-in.] / [1.0~1.2 Nm]

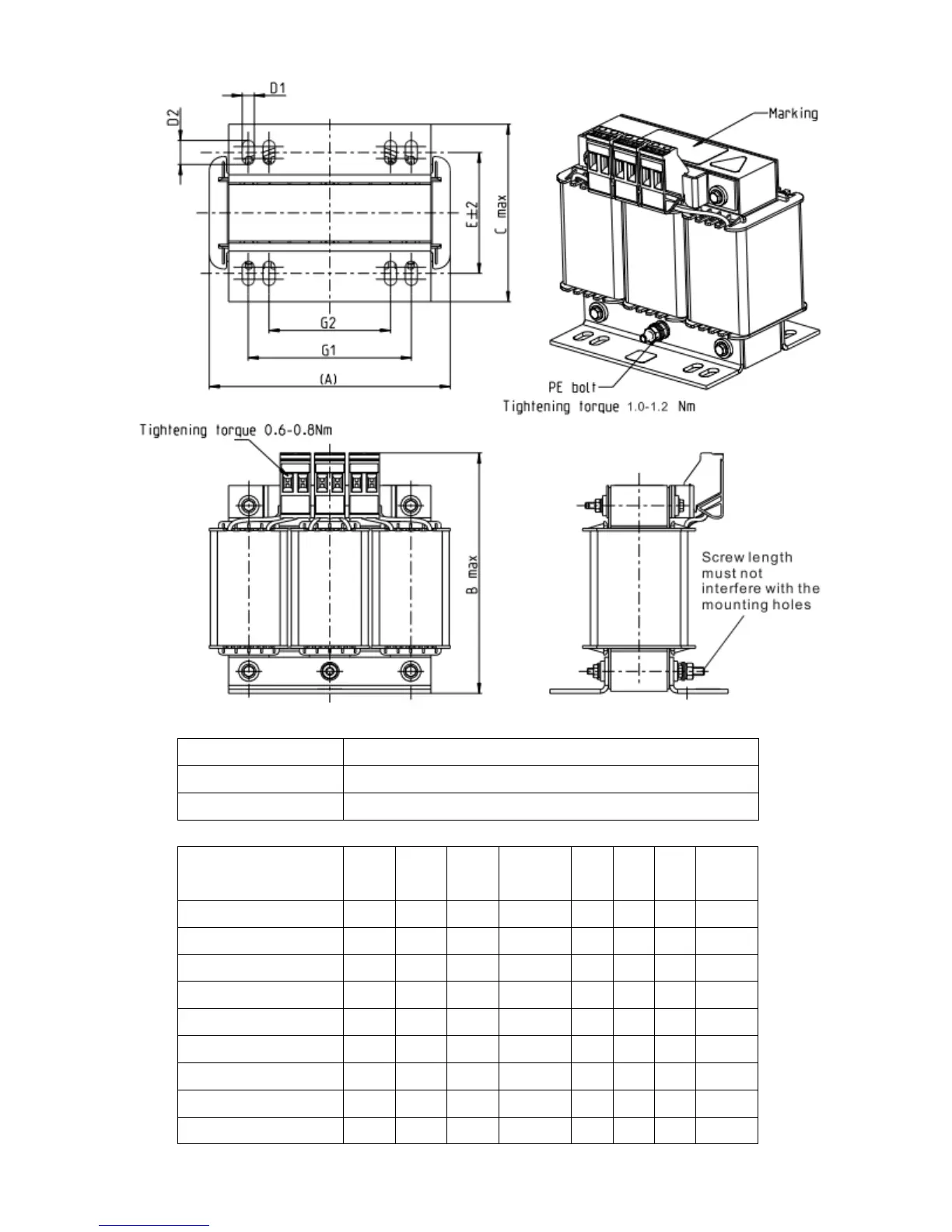

Input AC reactor
Delta part #
A B C D1*D2 E G1 G2 PE D
DR003A0810
96 100 60 6*9 42 60 40 M4
DR004A0607
120 120 88 6*12 60 80.5 60 M4
DR006A0405
120 120 88 6*12 60 805 60 M4
DR009A0270
150 150 88 6*12 74 107 75 M4
DR010A0231
150 150 112 6*12 88 107 75 M4
DR012A0202
150 150 112 6*12 88 107 75 M4
DR018A0117
150 155 112 6*12 88 107 75 M4
DR024AP881
150 155 112 6*12 88 107 75 M4
DR032AP660
180 175 138 6*12 114 122 85 M6
Unit: mm
