A DC reactor can also, improve power factor, reduce input current, and reduce interference
generated from motor drive. A DC reactor stabilizes the DC-bus voltage. Compared to an AC input reactor,
the advantages are smaller size, lower price and lower voltage drop (lower power dissipation)
Installation
DC reactor is installed between terminals +1 and +2. The jumper, which is shown as below, needs to
be removed before installation.

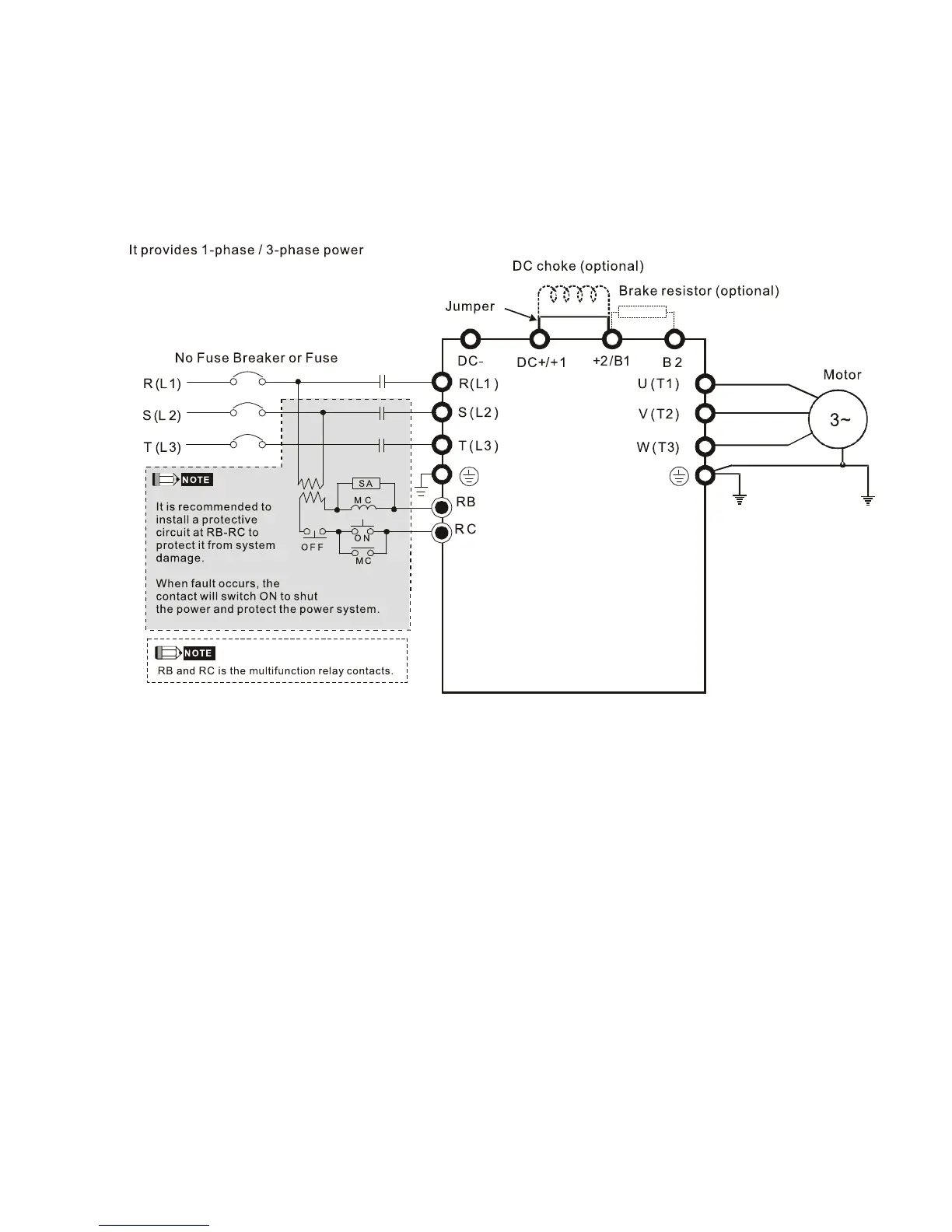

Wiring of DC reactor
