Delta VFD9A0MS43ANSHA User Manual

Chapter 7 Optional Accessories  MS300 (High Speed Model)
7-16

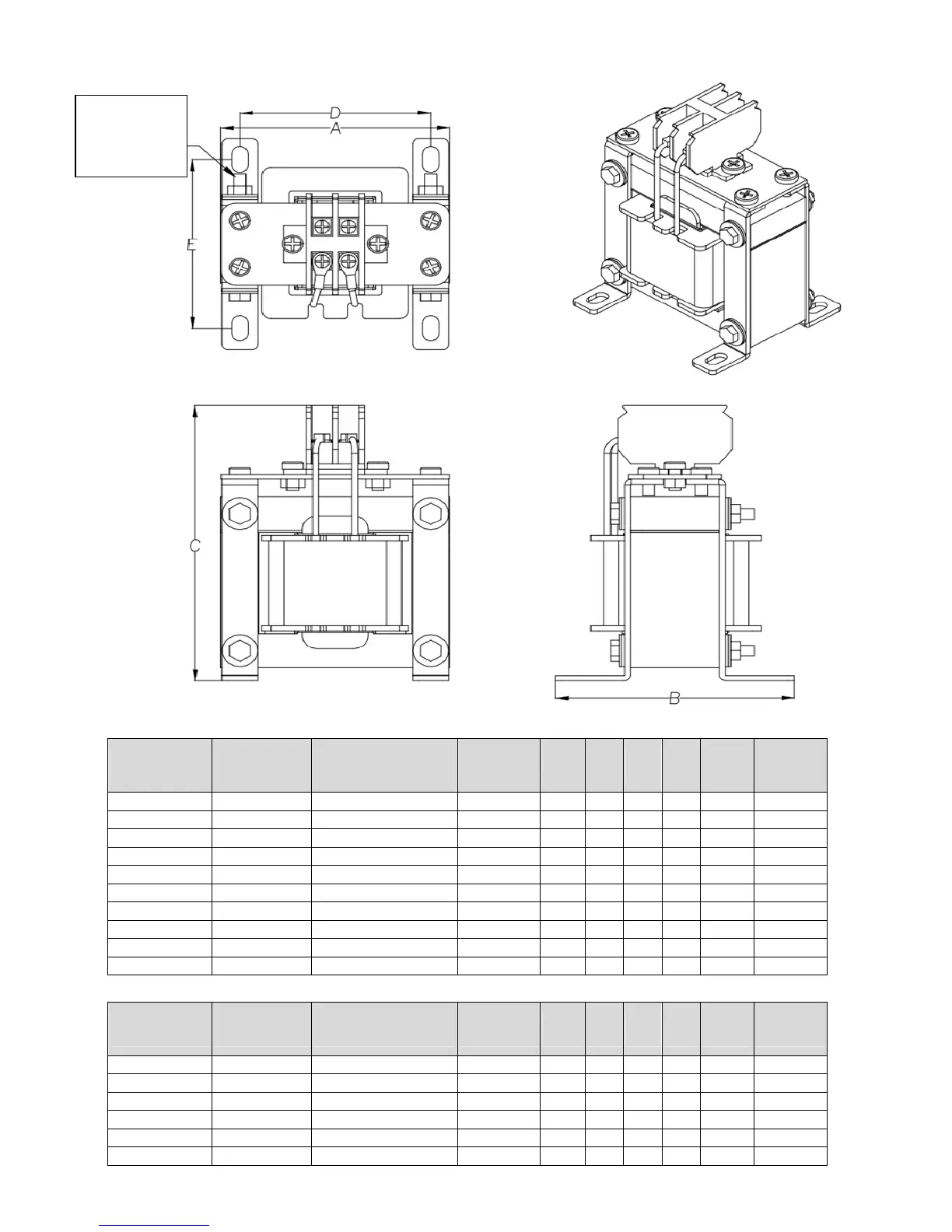

DC reactor dimension and specification:
DC reactor
Delta Part #
Rated Current
(Arms)
Saturation current
(Arms)
DC reactor
(mH)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
Dimension
(mm)
DR005D0585 5 8.64 5.857 79 78 107 64 59 9.5*5.5
DR008D0366 8 12.78 3.660 79 82 107 63.5 63.5 9.5*5.5
DR011D0266 11 18 2.662 99 96 128 80 72.5 9*6
DR017D0172 17 28.8 1.722 99 102 128 80 80 9*6
DR025D0117 25 43.2 1.172 117 107 154 95 86 12*8
DR033DP851 33 55.8 0.851 117 113 154 95 92 12*8
DR049DP574 49 84.6 0.574 136 123 170 111 100 12*8
DR065DP432 65 111.6 0.432 136 133 170 111 110 12*8
DR075DP391 75 127.8 0.391 153 150 191 125 127 12*8
DR090DP325 90 154.8 0.325 153 154 191 125 131 12*8
DC reactor
Delta Part #
Rated Current
(Arms)
Saturation current
(Arms)
DC reactor
(mH)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
Dimension
(mm)
DR003D1870 3 5.22 18.709 79 82 107 63.5 64 9.5*5.5
DR004D1403 4 6.84 14.031 79 87 107 63.5 68.5 9.5*5.5
DR006D0935 6 10.26 9.355 99 92 128 80 68.5 9*6
DR009D0623 9 14.58 6.236 99 104 128 80 81.5 9*6
DR010D0534 10.5 17.1 5.345 99 108 128 80 85 9*6
DR012D0467 12 19.8 4.677 99 119 128 80 96 9*6
The length of
screw should
keep away
from the hole.
