Chapter 8 Optional Cards MS300 (High Speed Model)
8-3
5. Wiring after the option card fixed fitting is clipped with the holes (see
NOTE
).
Fasten the screw to fix the option card before wiring (shown in Fig. 8-3). Torque:4~6 kg-cm
[3.5~5.2 lb-in] / [0.39~0.59 Nm]. While the wiring is finished, the front cover cannot put it back
on directly but needs to assembly the option card reversely. Please refer to the subsequent
steps to complete the installation.

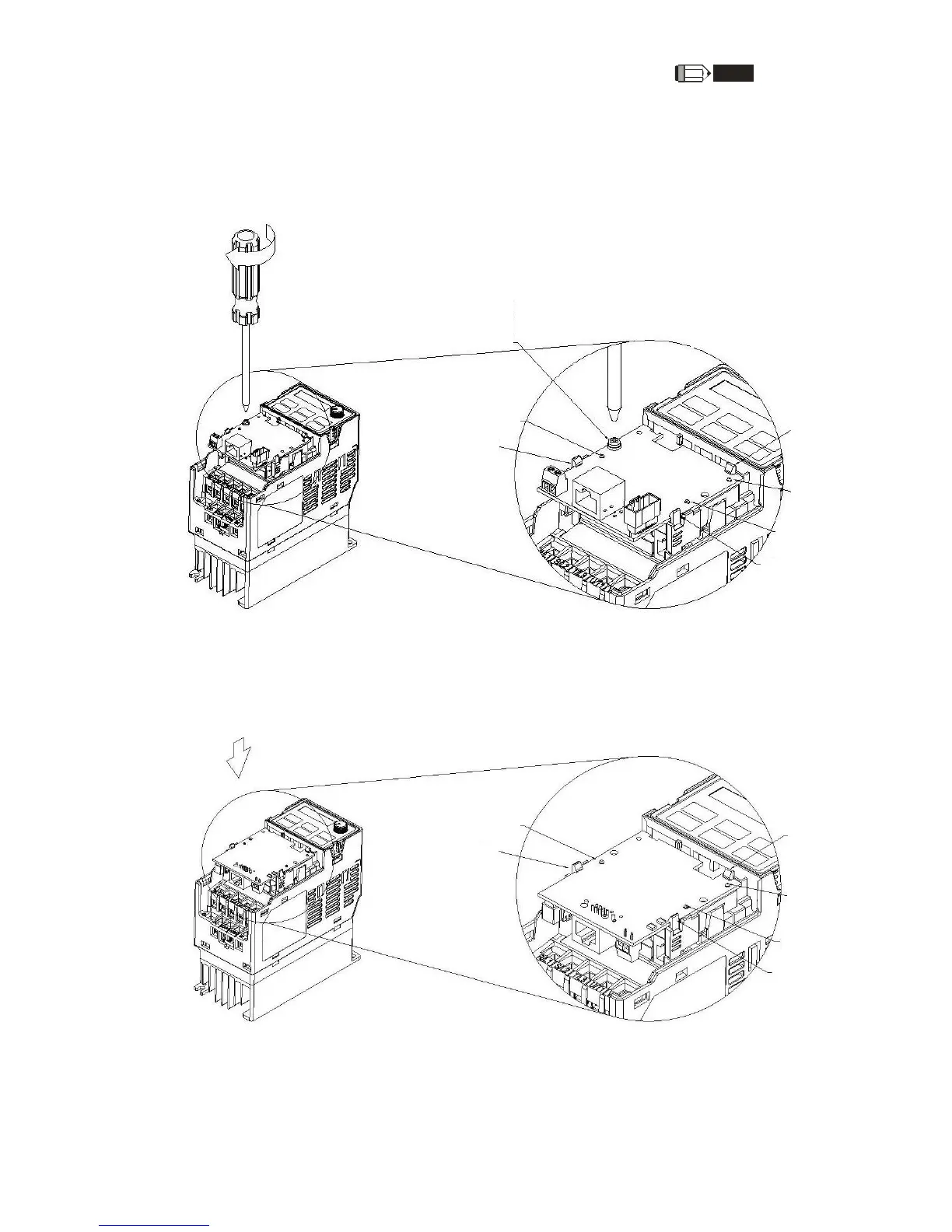

Fig. 8-3
6. After the wiring is completed, loosen the option card of the front mountingand
reverse-mounted, aim the three holes at the positioning pin, press the pin to clip the holes with
the option card. (shown in Fig. 8-4)
Fig. 8-4
Torque:
4~6 kg-cm
[3.5~5.2 lb-in.]
[0.39~0.59 Nm]
Position pin
Position pin
Position pin
Clip
Clip
Clip
Clip
Position pin
Position pin
Position pin
Clip
Clip
