Delta VFD9A0MS43ANSHA

Chapter 8 Optional Cards MS300 (High Speed Model)
8-4

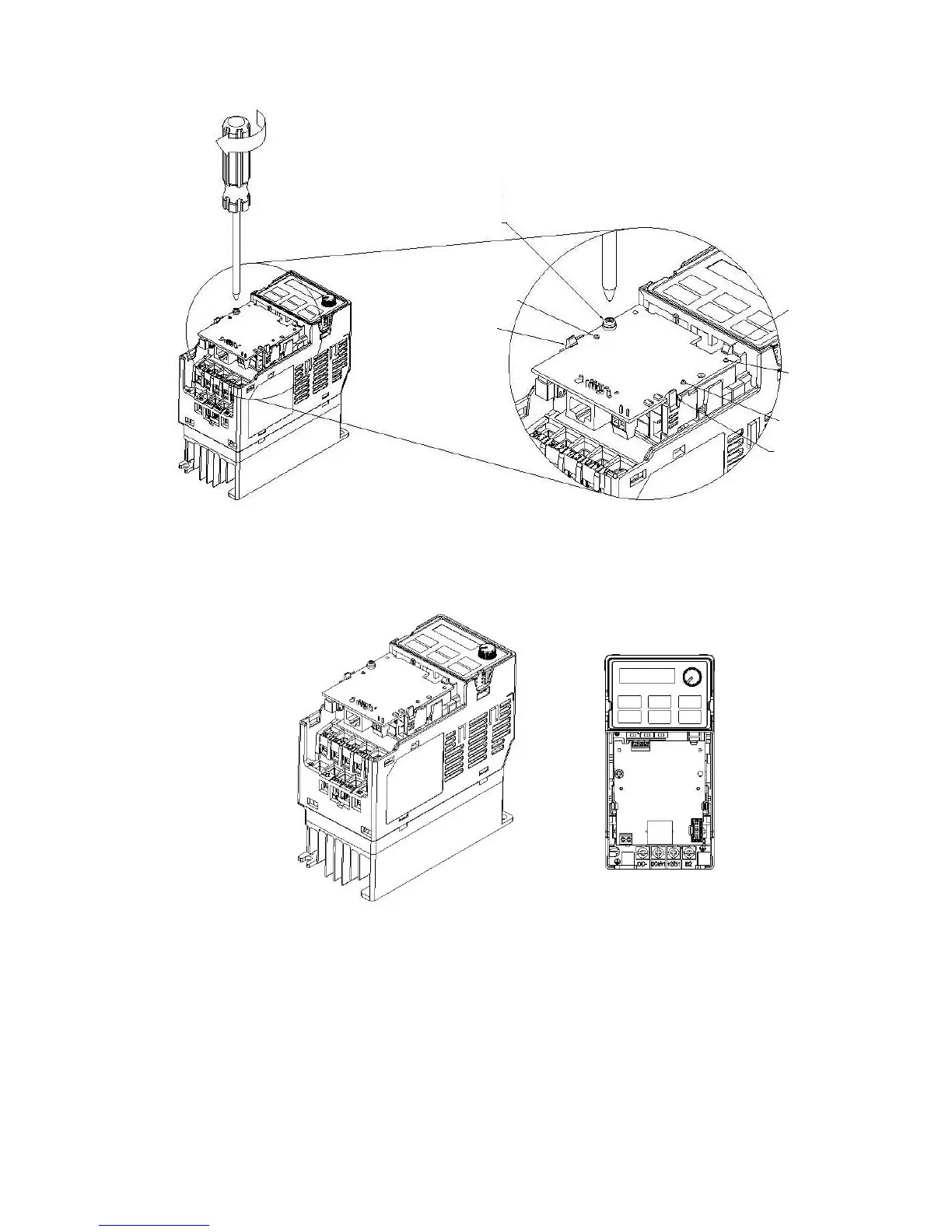

7. Fasten the screw after the option card fixed fitting is clipped with the holes. (shown in Fig. 8-5)
Fig. 8-5
8. Installation is completed (shown in Fig. 8-6). Put the front cover back on.
Fig. 8-6
Torque:
4~6 kg-cm
[3.5~5.2 lb-in.]
[0.39~0.59 Nm]
Clip
Position pin
Position pin
Position pin
Clip
Clip
