Chapter 8 Optional Cards MS300 (High Speed Model)
8-5
NOTE

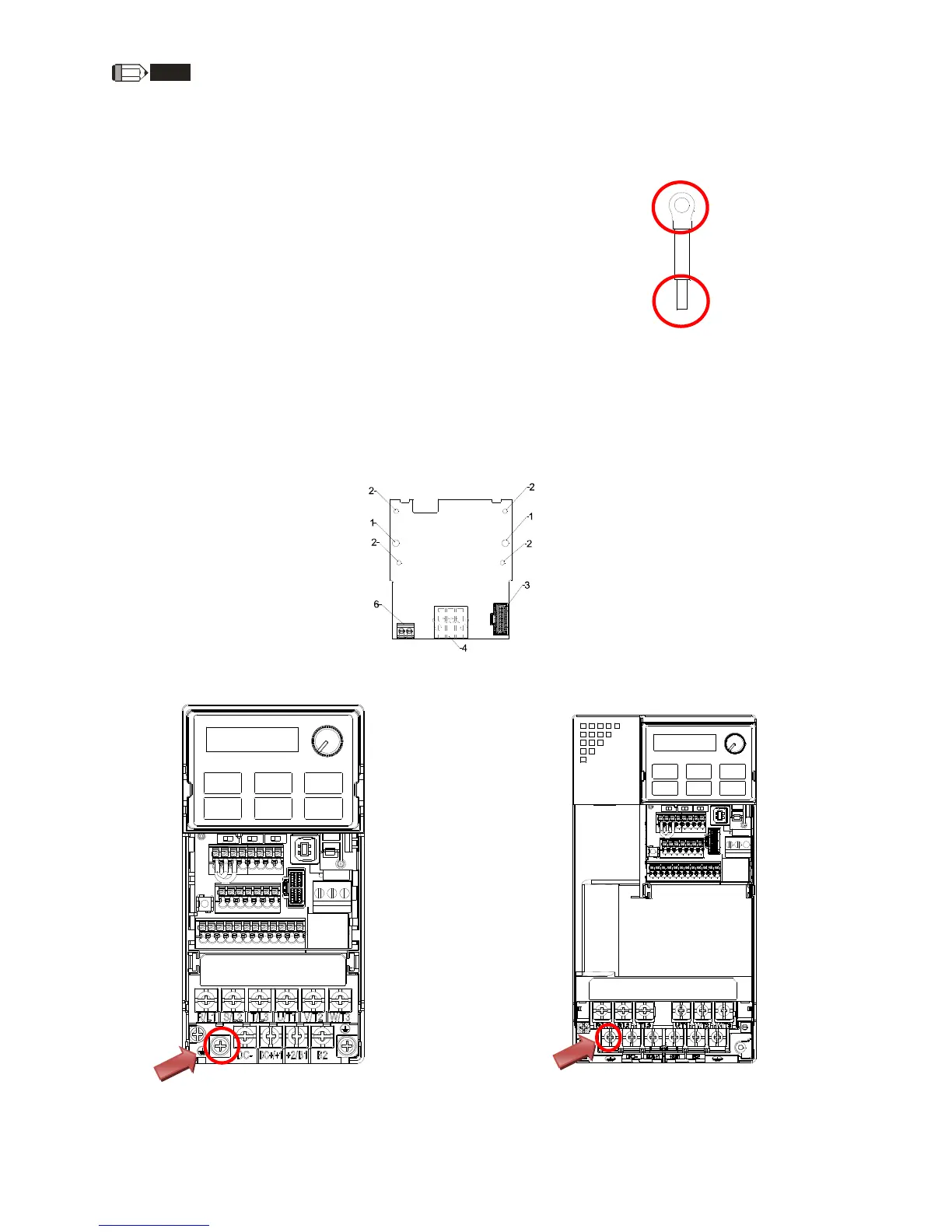

1. Ground terminal installation of optional card
The option cards listed below must connect to ground when wiring. The ground terminal is enclosed
with option card as shown in Fig. 8-7.
a. CMM-MOD01
b. CMM-PD01
c. CMM-DN01
d. CMM-EIP01
e. CMM-COP01
f. EMM-BPS01
Installation:
B side of the ground terminal connects to the ground terminal block on option card as No.6 of
CMM-MOD01 shown in Fig. 8-8, and see each section in Chapter 8 for ground terminal blocks of
other option cards; A side of the ground terminal connects to the PE on the drive as red circles
shown in Fig. 8-9 ~ 8-11.
Frame B~C Frame D~E
Torque (±10%)
Frame B: 15 kg-cm [13.0 Ib-in.] [1.47 Nm]
Frame C: 20 kg-cm [17.4 Ib-in.] [1.96 Nm]
Torque (±10%)
Frame D: 20 kg-cm [17.4 Ib-in.] [1.96 Nm]
Frame E: 25 kg-cm [21.7 Ib-in.] [2.45 Nm]
Fig. 8-8
Fi
g
. 8-9
Fi
g
. 8-10
Fig. 8-7
Ground terminal
A
B
