Deltech SPX FLOW - Models HGEN1000 A through HGEN1200 A

10
SPECIFICATIONS: AIR-COOLED UNITS

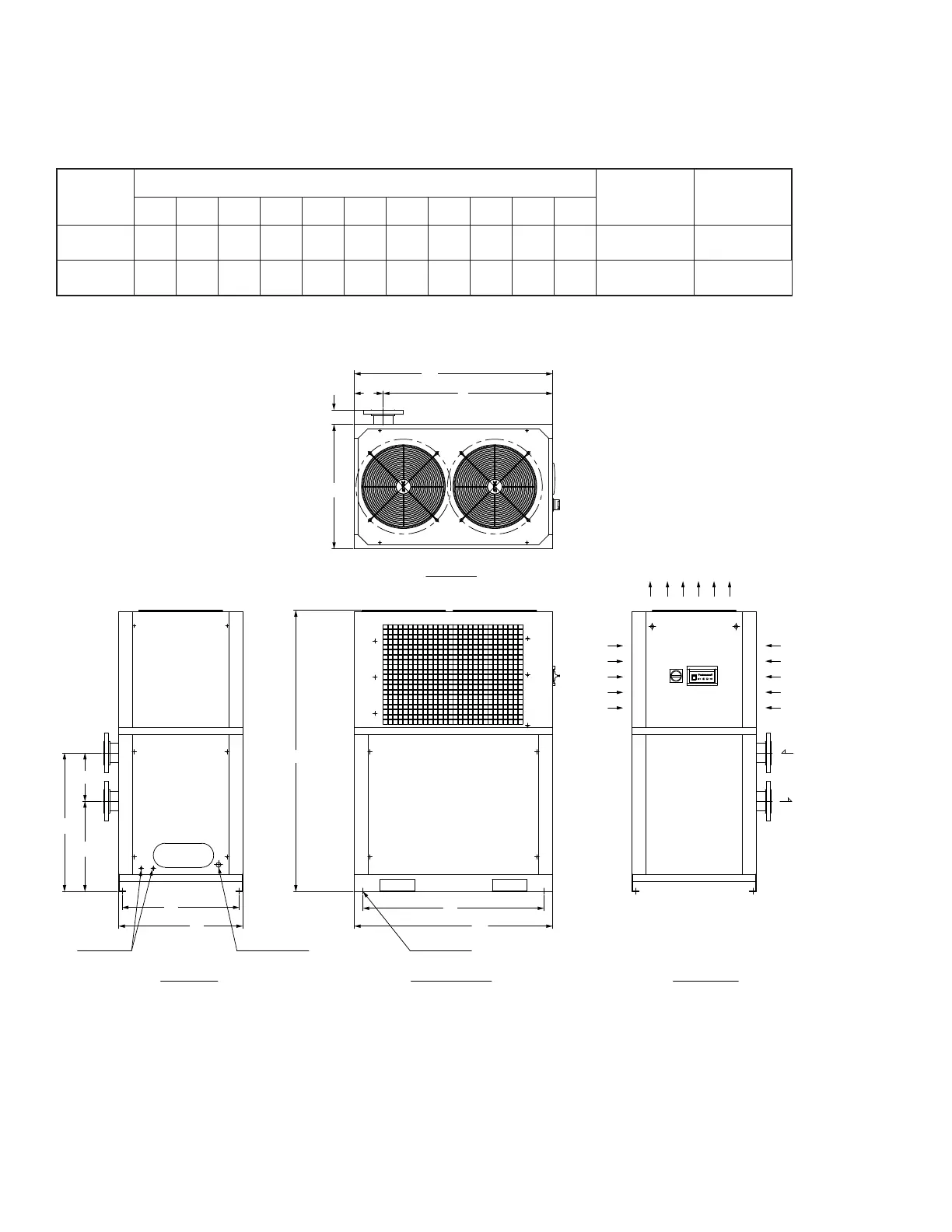

General Arrangement Drawing:
Models HGEN1000A through HGEN1200A
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H J K L
HGEN1000A
31.60
(802.7)
20.60
(523.3)
11.00
(279.4)
26.77
(680)
28.35
(720)
41.34
(1050)
45.28
(1150)
64.16
(1629.6)
38.68
(982.5)
6.59
(167.5)
3.35
(85)
4" ANSI Flange
744
(337)
HGEN1200A
31.60
(802.7)
20.60
(523.3)
11.00
(279.4)
26.77
(680)
28.35
(720)
41.34
(1050)
45.28
(1150)
64.16
(1629.6)
38.68
(982.5)
6.59
(167.5)
3.35
(85)
4" ANSI Flange
816
(370)
WETTED AIR INLET
DRIED AIR OUTLET
COOLING AIR FLOW
REAR VIEW FRONT VIEWLEFT SIDE VIEW
TOP VIEW
G
F
E
D
J
K
L
E
DRAIN OUTLET (2)
NPT3/8"
HOLE FOR MAIN POWER
A
C
B
4-Ø10 [0.394] HOLES
H
G
