SPECIFICATIONS: WATER-COOLED UNITS

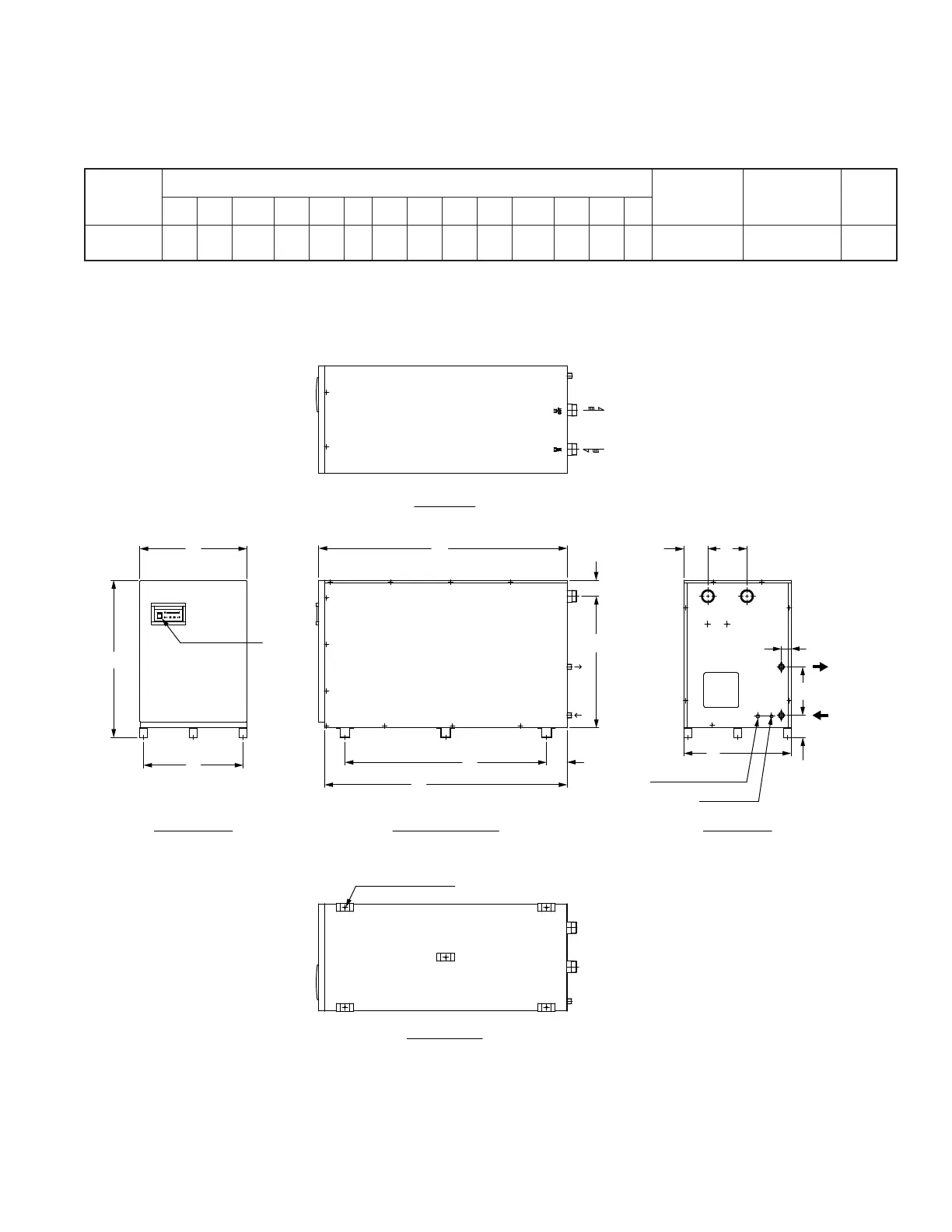

General Arrangement Drawing:
Model HGEN600W
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
COOLING WATER
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H J K L M N O
HGEN600W
31.94
(811.2)
21.75
(552.4)
50.44
(1281.3)
4.86
(123.5)
7.94
(201.6)
3.23
(82)
26.74
(679.2)
20.24
(514)
4.18
(106.2)
40.94
(1040)
49.26
(1251.2)
4.52
(114.8)
9.84
(250)
1.97
(50)
2" NPT 3/4" NPT
358
(162)
DRIED AIR OUTLET
WETTED AIR INLET
COOLING
WATER
OUTLET
COOLING
WATER
INLET
DRAIN OUTLET
5-Ø10 MOUNTING HOLES
D E
G
B
A
H
F
ON/OFF SWITCH, PCB
HOLE FOR MAIN POWER
B
O
M
N
C
JK
L
FRONT VIEW
REAR VIEWRIGHT SIDE VIEW
TOP VIEW
FOOT PRINT
