Deltech SPX FLOW - Models HGEN1000 W through HGEN1200 W

17
SPECIFICATIONS: WATER-COOLED UNITS

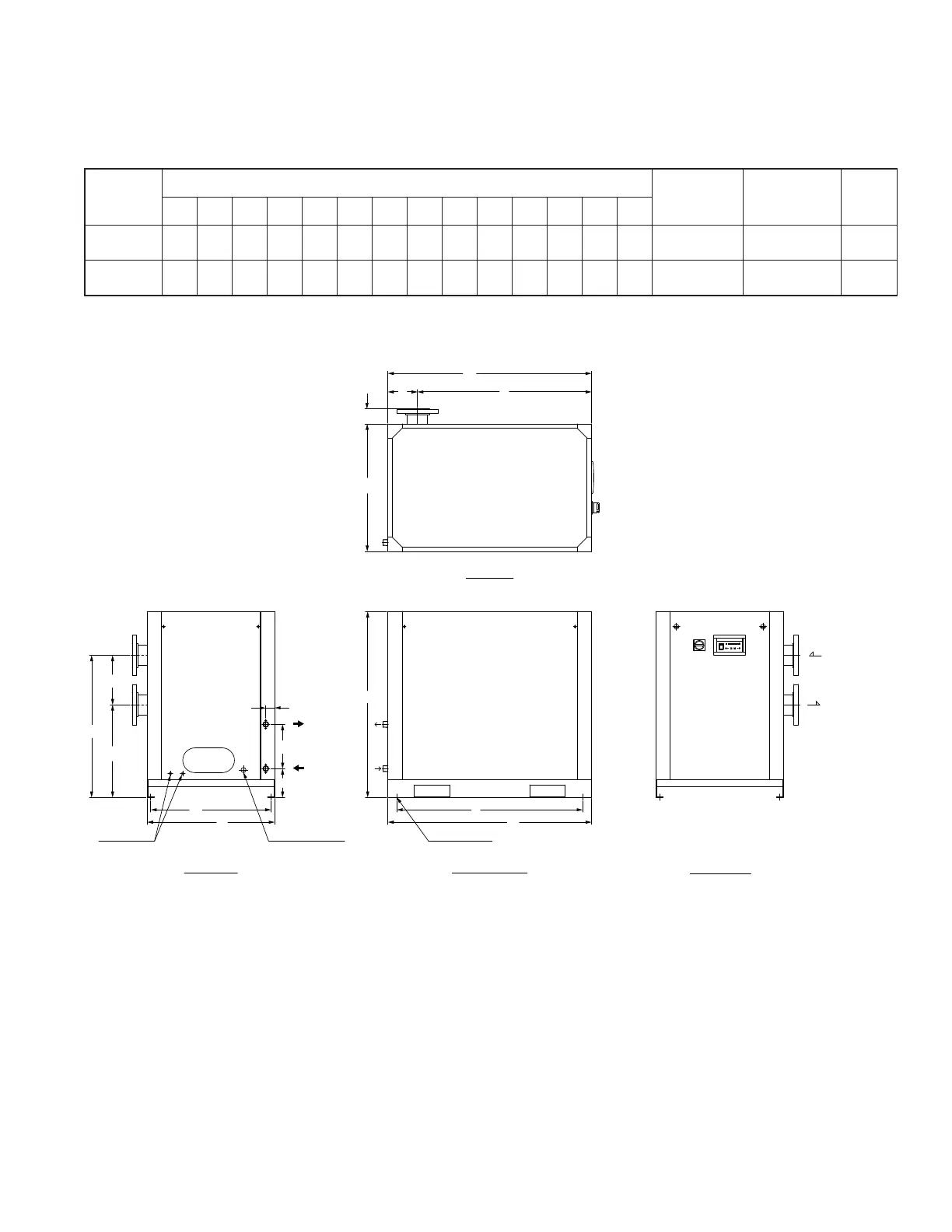

General Arrangement Drawing:
Models HGEN1000W through HGEN1200W
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
COOLING WATER
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H J K L M N O
HGEN1000W
31.60
(802.7)
20.60
(523.3)
11.00
(279.4)
26.77
(680)
28.35
(720)
41.34
(1050)
45.28
(1150)
41.34
(1050)
38.68
(982.5)
6.59
(167.5)
3.35
(85)
6.40
(162.5)
9.84
(250)
1.97
(50)
4" ANSI Flange 1" NPT
582
(264)
HGEN1200W
31.60
(802.7)
20.60
(523.3)
11.00
(279.4)
26.77
(680)
28.35
(720)
41.34
(1050)
45.28
(1150)
41.34
(1050)
38.68
(982.5)
6.59
(167.5)
3.35
(85)
6.40
(162.5)
9.84
(250)
1.97
(50)
4" ANSI Flange 1" NPT
626
(284)
WETTED AIR INLET
DRIED AIR OUTLET
COOLING
WATER
OUTLET
COOLING
WATER
INLET
G
F
E
D
E
H
2–DRAIN OUTLET
3/8" NPT
HOLE FOR MAIN POWER
4-Ø10 [0.394] HOLES
G
J
K
L
A
C
B
O
M
N
REAR VIEW
FRONT VIEW
LEFT SIDE VIEW
TOP VIEW
