Deltech SPX FLOW - Model HGEN800 W

16
SPECIFICATIONS: WATER-COOLED UNITS

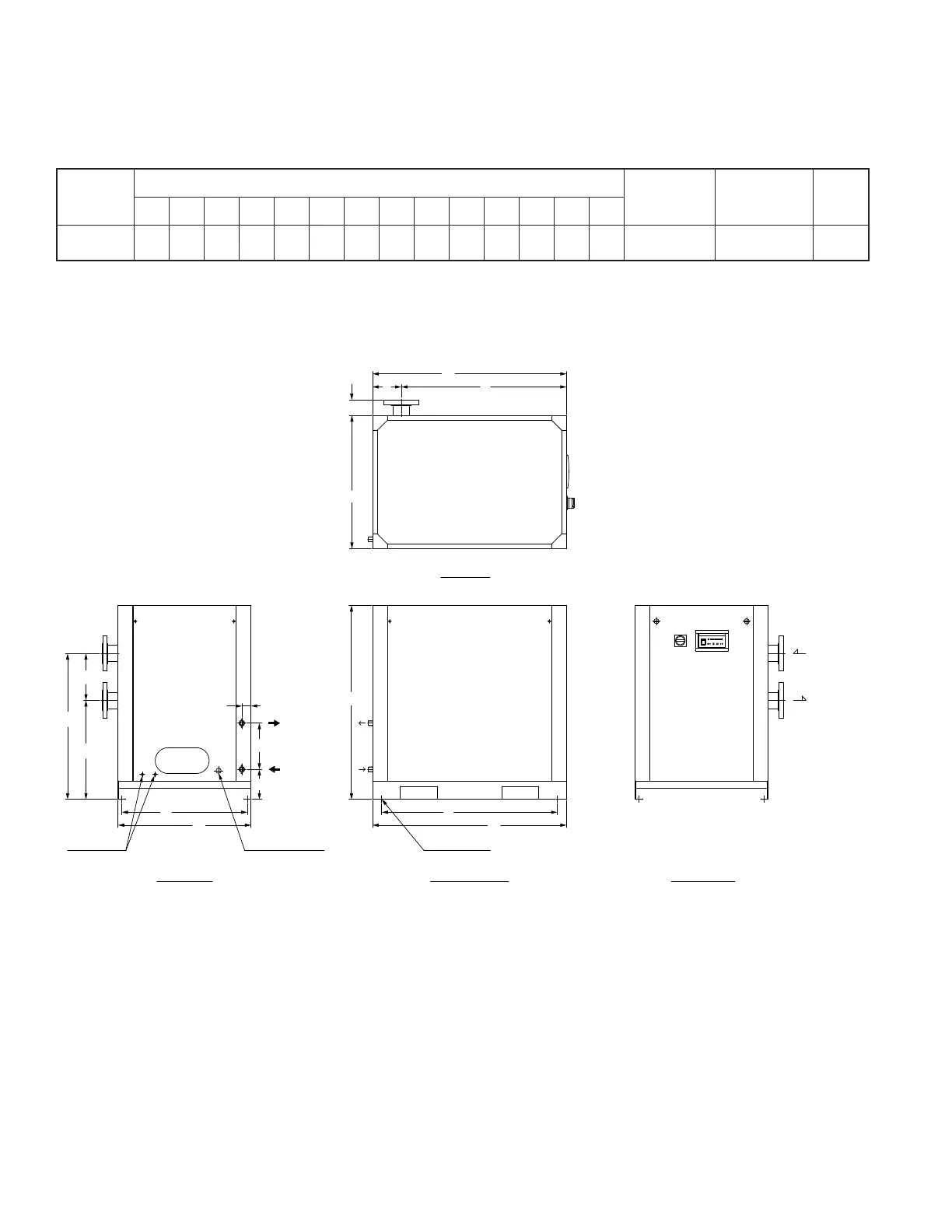

General Arrangement Drawing:
Model HGEN800W
MODEL
DIMENSIONS, INCHES (MM)
INLET/OUTLET
CONNECTIONS
COOLING WATER
INLET/OUTLET
CONNECTIONS
WEIGHT
Lb. (kg)
A B C D E F G H J K L M N O
HGEN800W
31.10
(790)
21.10
(536)
10.00
(254)
26.77
(680)
28.35
(720)
37.40
(950)
41.34
(1050)
41.34
(1050)
35.22
(894.5)
6.12
(155.5)
3.35
(85)
6.40
(162.5)
9.84
(250)
1.97
(50)
3" ANSI Flange 3/4" NPT
534
(242)
AIR INLET
AIR OUTLET
COOLING
WATER
OUTLET
COOLING
WATER
INLET
REAR VIEW FRONT VIEWLEFT SIDE VIEW
TOP VIEW
G
F
E
D
G
JK
L
E
H
A
B
C
DRAIN OUTLET (2)
3/8” NPT
HOLE FOR MAIN POWER
4-Ø10 [0.394] HOLES
O
M
N
