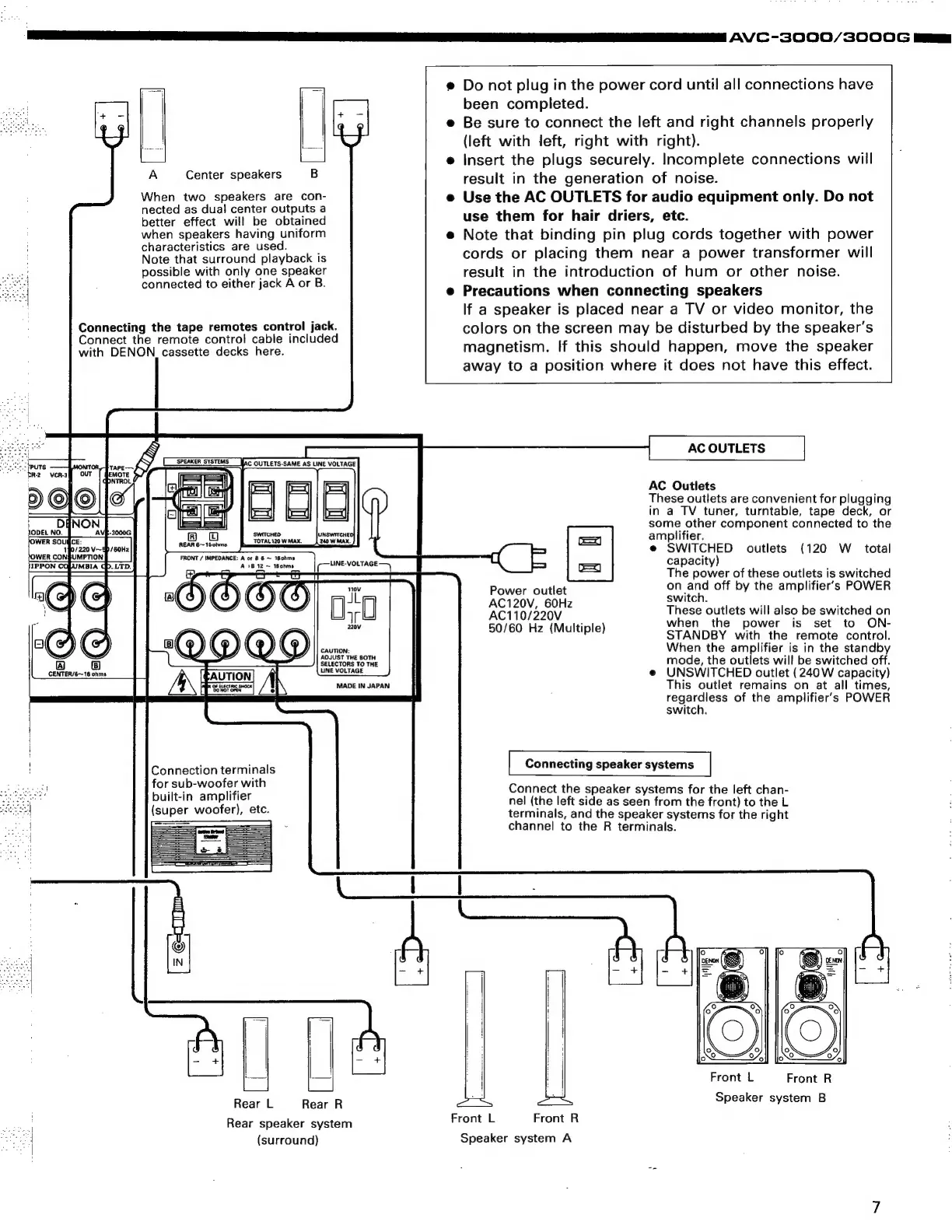

A Center speakers B
When two speakers are con-
nected as dual center outputs a
better effect will be obtained
when speakers having uniform
characteristics are used.
Note that surround playback is
possible with only one speaker
connected to either jack A or B.
Connecting the tape remotes control jack.
Connect the remote control cable included
with DENON cassette decks here.
JODEL wi
OWER sou
4
220 V~S/ 60Hz
OWER jour cn enon
peETP
Feicl ij
|
FRONT / IMPEDANCE: A or 8 6 ~ 160hms
A +B 12 ~ 160hms
a
CENTER/6~16 ohme
CAUTION:
ADJUST THE BOTH
SELECTORS TO THE
UNE VOLTAGE
MADE IN JAPAN
Ape a
Connection terminals
for sub-woofer with
built-in amplifier
(super woofer), etc.
Rear L Rear R
Rear speaker system
(surround)
AVC -3000/3000G Im
e Insert the plugs securely. Incomplete connections will
e Use the AC OUTLETS for audio equipment only. Do not
e Note that binding pin plug cords together with power
e Precautions when connecting speakers
@ Do not plug in the power cord until all connections have
been completed.
e Be sure to connect the left and right channels properly
(left with jeft, right with right).
result in the generation of noise.
use them for hair driers, etc.
cords or placing them near a power transformer will
result in the introduction of hum or other noise.
If a speaker is placed near a TV or video monitor, the
colors on the screen may be disturbed by the speaker's
magnetism. If this should happen, move the speaker
away to a position where it does not have this effect.
AC OUTLETS
AC Outlets
These outlets are convenient for plugging
in a TV tuner, turntable, tape deck, or
some other component connected to the
rez] amplifier.
= e SWITCHED outlets (120 W £ total
a = _ capacity)
The power of these outlets is switched
Power outlet on and off by the amplifier’s POWER
switch.
RET Gean These outlets will also be switched on
50/60 Hz (Multiple) when _ the power is set to ON-
STANDBY with the remote control.
When the amplifier is in the standby
mode, the outlets wil! be switched off.
e UNSWITCHED outlet (240W capacity)
This outlet remains on at all times,
regardless of the amplifier’s POWER
switch.
[ Connecting speaker systems
Connect the speaker systems for the left chan-
nel (the left side as seen from the front) to the L
terminals, and the speaker systems for the right
channel to the R terminals.
Front L Front R
ae Speaker system B
Front L Front R
Speaker system A
