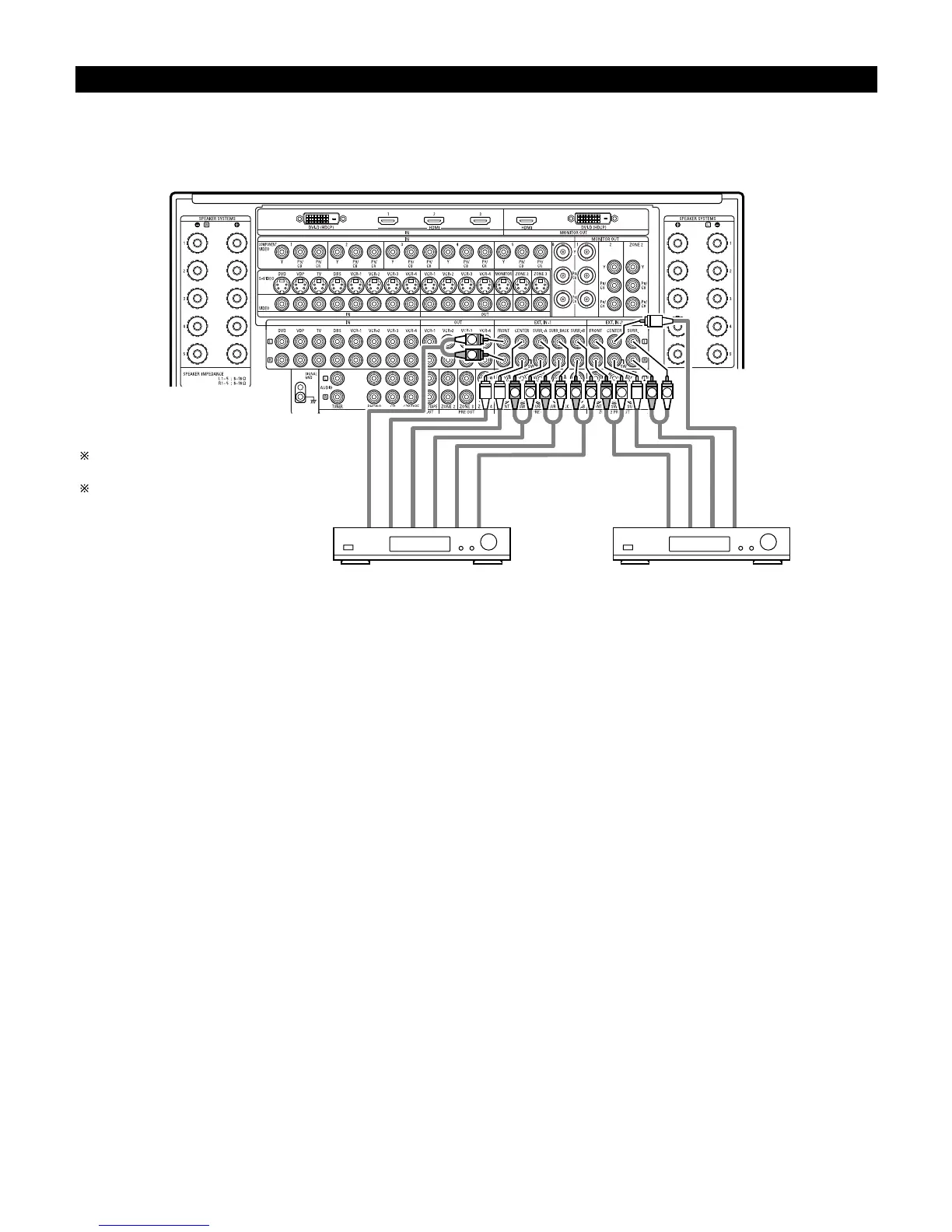

Connecting the external input (EXT. IN) jacks
•AVC-A1XV is equipped with two analog external input terminals for 9.1 channels and 5.1 channels.
• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel
decoder, such as a DVD Audio player, or a multi-channel SACD player, or other future multi-channel sound format decoder.
• When making connections, also refer to the operating instructions of the other components.
L
R
L
R
L
R
L
R
L
R
L
R
Decoder with 10-, 8- or 6-channel analog output
Front
Surround back
Surround A
Subwoofer
Center
For instructions on playback using the
external input (EXT. IN) jacks, see page 123.
See pages 59, 60 for “Setting the EXT.IN
Setup”.
Surround B
Surround
Subwoofer
Front Center
Decoder with 6-channel analog output
