ENGLISH
Getting Started
Playback Remote Control Information Troubleshooting
SpecificationsSettings
NOTE
Insert the AC plugs securely. Incomplete connections could cause
noise.
Wait until all connections have been completed before connecting the
power cord.
To household
power outlet
(AC 120 V, 60 Hz)
Power cord
Once Connections are
Completed
Turning the Power On
1
Press .
The power indicator lights red and the
power is set to the standby mode.
2
Press .
The power indicator flashes green and the
power turns on.
b Also press when in
standby mode, the power turns on.
When has been pressed, the input
source set with the is set.
If a
has been pressed, the input source stored
in the memory for the quick select function is set (vpage 45
“Saving frequently used settings (Quick Select Function)”).
NOTE
Power continues to be supplied to some of the circuitry even when
the power is in the standby mode. When leaving home for long periods
of time or when traveling, either press to turn off the power, or
unplug the power cord from the power outlet.
Turning the Power Off
1
Press .
The power is set to the standby mode.
2
Press .
The power indicator turns off, and so does
the power.
This operation can also be performed by
pressing a on the main unit.

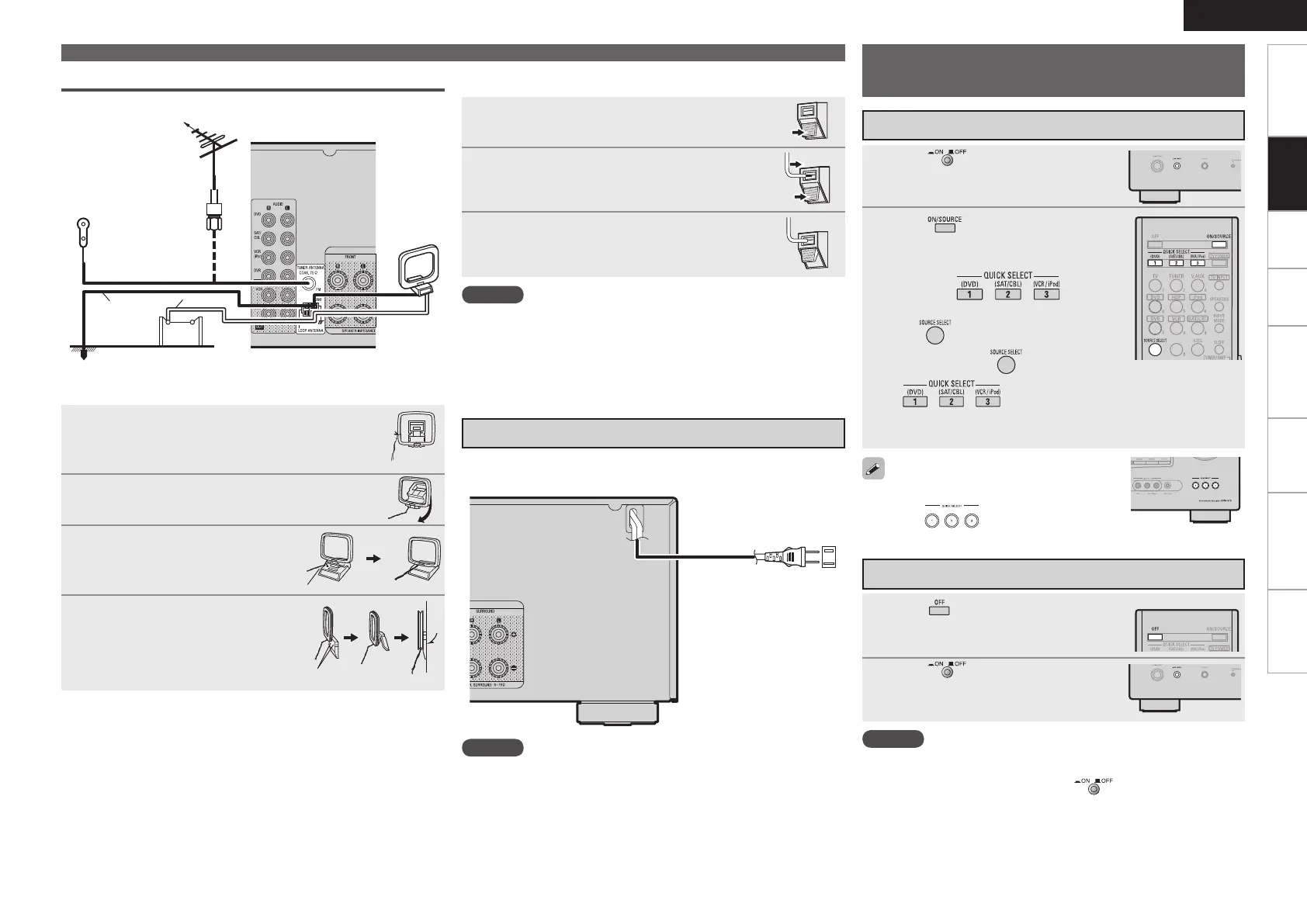

Connecting the Power Cord
Connecting Devices not Equipped with HDMI connectors
Direction of broadcasting station
AM loop
antenna
(supplied)
FM antenna
75 Ω/ohms
Coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor antenna
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
Antenna terminals
n AM loop antenna assembly
1
Remove the vinyl tie and take out the
connection line.
2
Bend in the reverse direction.
3
With the antenna on top of any
stable surface.
3
With the antenna attached to a
wall.
-1
-2
Mount
Installation hole Mount on wall, etc.
1
Push the lever.
2
Insert the conductor.
3
Return the lever.
n Connection of AM antennas
WhiteBlack
Connections
To Next Page
