Denon AVR-1612 Manual

34
Here we describe the installation, connection and
setup methods for speakers other than 5.1-channel
speakers. For the installation, connection and setup
methods for 5.1-channel speakers, see C page 4
“Setup wizard”.
Use Audyssey
®
Auto Setup function of this unit
to automatically detect the number of connected
speakers and perform optimal settings for the
speakers to be used.
Procedure for speaker settings
Install
Connect (vpage36)
Set up speakers (vpage40)

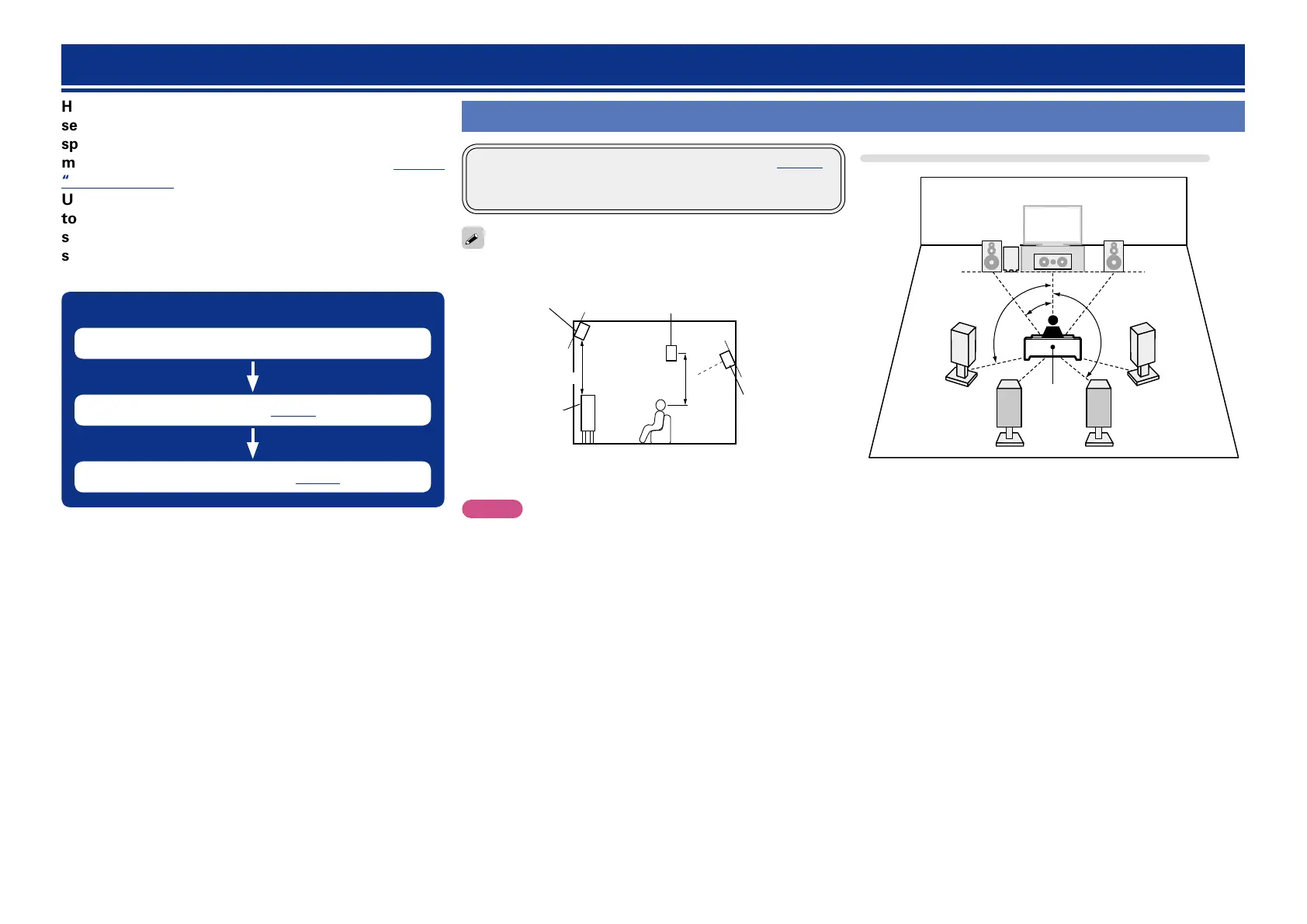

Install
This unit is compatible with Dolby Pro Logic gz (vpage 89),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
•Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
•Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Surround back speaker) installed
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
GSpeaker abbreviationsH
FL Front speaker (L) SBL Surround back speaker (L)
FR Front speaker (R) SBR Surround back speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Speaker installation/connection (Advanced connection)
Basic version
Advanced version
Information
Advanced version
vSee overleaf

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
