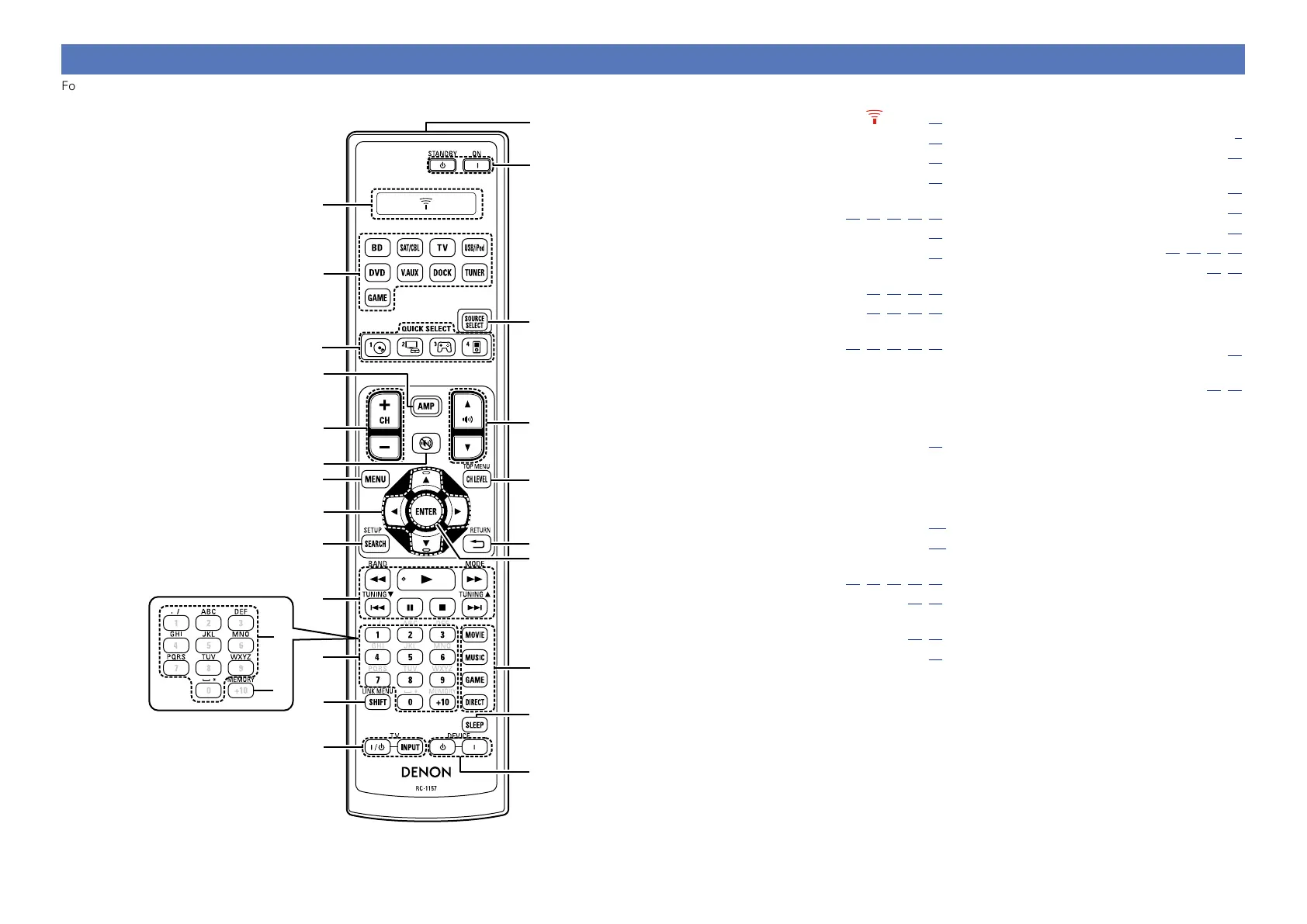

Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
Q1
Q2
q
w
e
r
t
y
u
i
o
Q0
Q3
Q5
Q4
W5
W4
W3
Q9
Q8
Q7
Q6
W0
W1
W2
q Signal transmission indicator ( ) ········· (76)
w Input source select buttons ······················· (18)
e QUICK SELECT buttons ····························· (45)
r AMP button ················································· (71)
t Channel buttons
(CH +, –) ······························· (25, 26, 72, 74, 75)
y Muting button (N) ···································· (19)
u MENU button ·············································· (51)
i Cursor buttons
(uio p) ···································· (48, 49, 50, 51)
o SEARCH button ························ (20, 23, 26, 49)
Q0 System buttons
············································· (23,24,28,74,75)
•Search buttons (6, 7)
•Skip buttons (8, 9)
•Play button (1)
•Pause button (3)
•Stop button (2)
Tuner system buttons ································ (26)
•FM/AM band switching button (BAND)
•Tuning mode button (MODE)
•Tuning up / Tuning down buttons
(TUNING df)
Q1 Character buttons ······································ (50)
Q2 MEMORY buttons ······································ (25)
Q3 Number buttons
············································· (25,72,73,74,75)
Q4 SHIFT button ········································· (25, 50)
Q5 TV operation buttons
(TV Z / X / INPUT) ································ (74, 75)
Q6 Remote control signal transmitter ··········· (82)
Q7 Power buttons
(ON / STANDBY) ·································· (C 5)
Q8 SOURCE SELECT button ··························· (18)
Q9 Master volume control buttons
(M df) ······················································· (19)
W0 Channel level button (CH LEVEL) ············· (44)
W1 RETURN button (B) ································· (51)
W2 ENTER button ··························· (48, 49, 50, 51)
W3 Surround mode buttons ······················ (29, 32)
•MOVIE button
•MUSIC button
•GAME button
•DIRECT button
W4 SLEEP button ·············································· (43)
W5 DEVICE power buttons
(DEVICE X / DEVICE Z) ························· (74, 75)
Basic version
Advanced version
InformationInformation
vSee overleaf

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
