Denon AVR-1612 Manual

2
ENGLISH

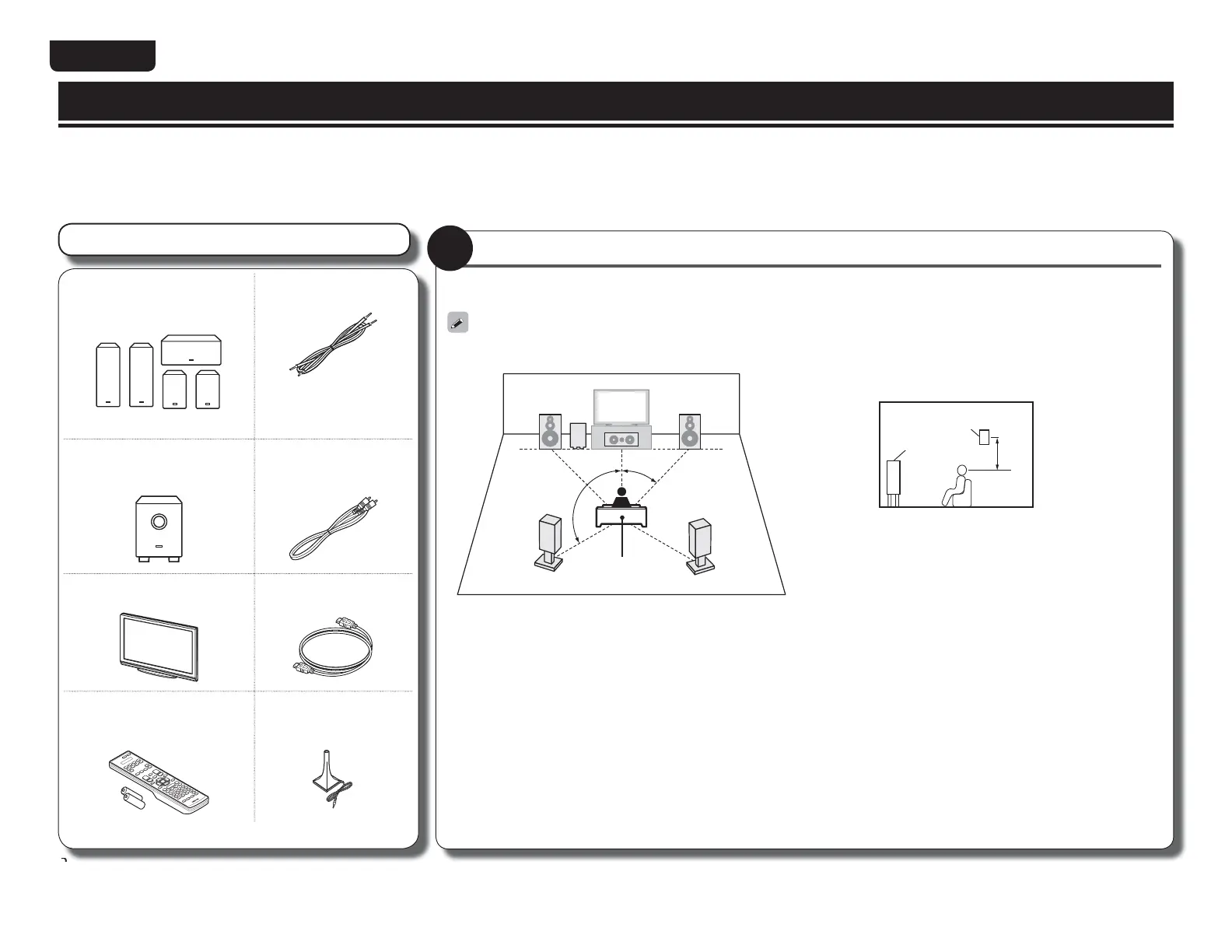

What you need for this step
2
Speaker
(sold separately)
Speaker cable
(sold separately)
FL FR
SL SR
C
tPrepare enough for the
number of speakers you
will use.
Subwoofer
(with built-in amplifier)
(sold separately)
Audio cable
(sold separately)
TV
(sold separately)
HDMI cable
(sold separately)
Remote control unit /
R6/AA batteries
(supplied)
Setup microphone
(supplied)
Place and layout speakers
Before installing the speakers, connect the speaker cables to the speakers. For details on how to connect the speaker cables, see the
speaker instruction manual.
Connect the speaker cables to the main unit using the Setup Wizard.
n When 5.1-channel installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
tInstall the surround speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
Front
speaker
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
FL Front speaker (L)
FR Front speaker (R)
C Center speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
1
This section describes how to prepare the Setup Wizard before use.
n Do not plug the power plug of the main unit into the wall socket until these preparations are complete.
n Speaker connections are performed using the Setup Wizard. Do not connect the speakers yet.
Preparing the Setup Wizard

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
