Denon AVR-1612 Manual

36
Connect
•For the method of connecting 5.1-channel speakers, see C page
6 “Connecting the speakers”.
•For the method of connecting the TV, see C page 3 “Connect this
unit to the television using an HDMI cable (sold separately)”.

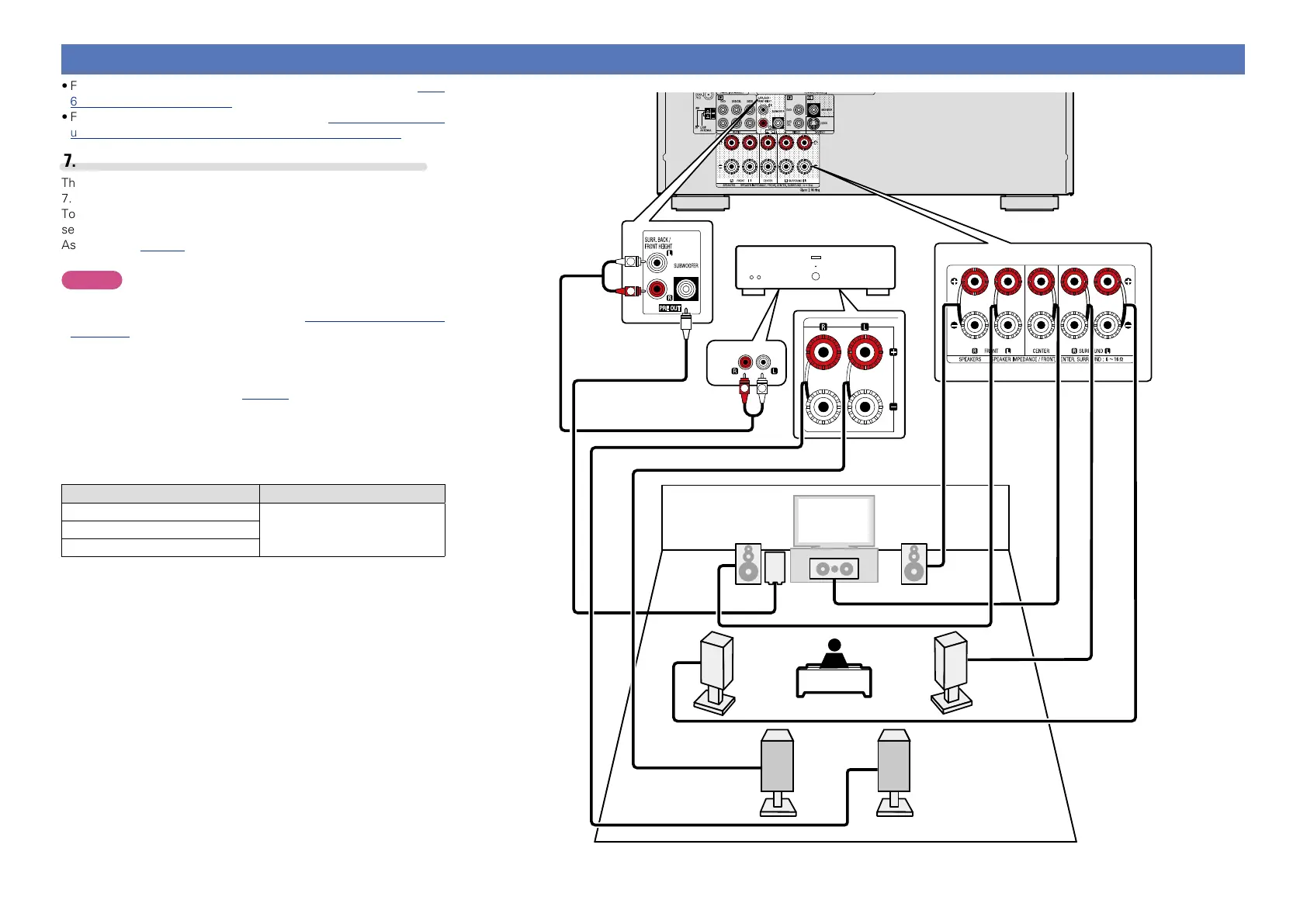

7.1-channel (Surround back speaker) connection
The illustration on the right shows a connection example for performing
7.1-channel playback using the surround back speakers.
To perform 7.1-channel playback using the surround back speakers,
set “Pre Assign” to “NORMAL” in steps 3 and 4 for “Set up “Pre
Assign”” (vpage40).
NOTE
•A power amplifier (sold separately) is required for this connection.
•For speaker cable connections, see C page 6 “Connecting the
speakers”.
•Connect so that the speaker cable core wires do not protrude
from the speaker terminal. The protection circuit may be
activated if the core wires touch the rear panel or if the + and
– sides touch each other (vpage90 “Protection Circuit”).
•Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock (When the
Setup wizard is running, follow the instructions in the Setup
wizard screen for making connections.).
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 ΩCENTER
SURROUND
C
SBL SBR
SL
SR
IN
R
L
R
L
FL
FR
SW
Power amplifier
Basic version
Advanced version
Information
Advanced version

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
