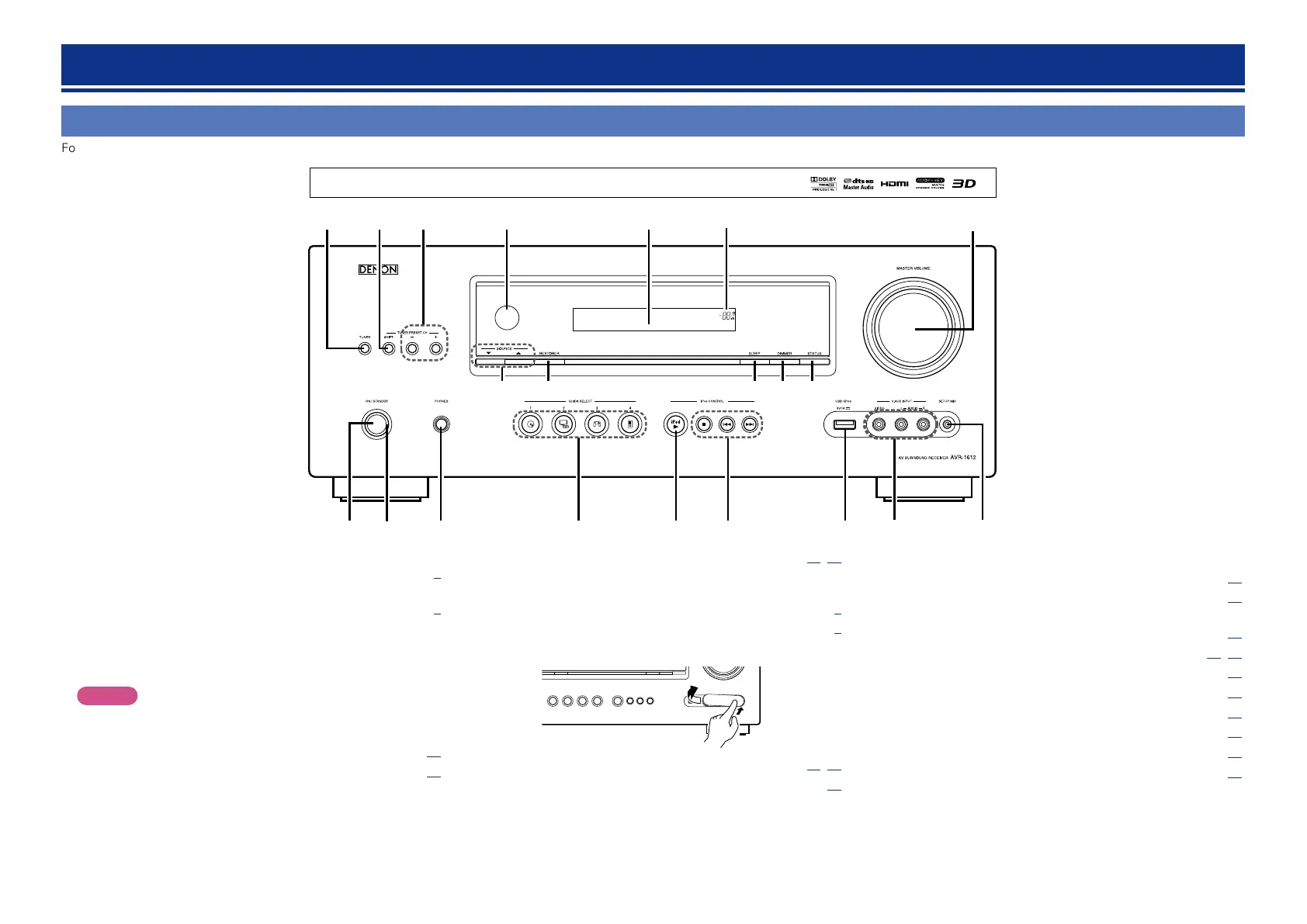

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q3Q4Q6
Q5
Q2 Q1
Q0
o
i
Q7 W0Q9Q8 W1
utr yewq
q Power operation button
(ON/STANDBY) ································································· (C 5)
Turns power to this unit on and off (standby).
w Power indicator ································································· (C 5)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers or from the PRE
OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r QUICK SELECT buttons ·························································· (45)
t iPod play button (iPod 1) ······················································· (24)
Q1 Master volume indicator
Q2 Display ······················································································ (79)
Q3 Remote control sensor ··························································· (82)
Q4 Tuner preset channel buttons
(TUNER PRESET CH +, –) ························································ (26)
Q5 SHIFT button ······································································ (25, 50)
Q6 TUNER button ········································································· (25)
Q7 Input source select buttons (SOURCE df) ··························· (18)
Q8 RESTORER button ··································································· (56)
Q9 SLEEP button ··········································································· (43)
W0 DIMMER button ······································································· (64)
W1 STATUS button ······································································· (57)
y iPod system buttons ························································· (23, 94)
•Stop button (2)
•Skip buttons (8, 9)
u USB/iPod port ··········································································· (9)
i V.AUX INPUT connectors ························································· (8)
Remove the cap covering the connectors when you want to use
them.
o SETUP MIC jack ································································· (13, 40)
Q0 MASTER VOLUME control knob ············································ (19)
Part names and functions
Basic version
Advanced version
InformationInformation

Denon AVR-1612 Specifications

General

Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	4
Composite video in	3
S-Video inputs quantity	1
Speakers connectivity type	-
Ethernet LAN	No
Radio Data System (RDS)	Yes
Preset stations quantity	56
Analog signal format system	NTSC, PAL
Display	LCD
HDMI version	1.4
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD
Apple docking compatibility	iPod
Graphical user interface (GUI) language	English, French, German
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	382 mm
Width	435 mm
Height	162 mm
Weight	9200 g
