12

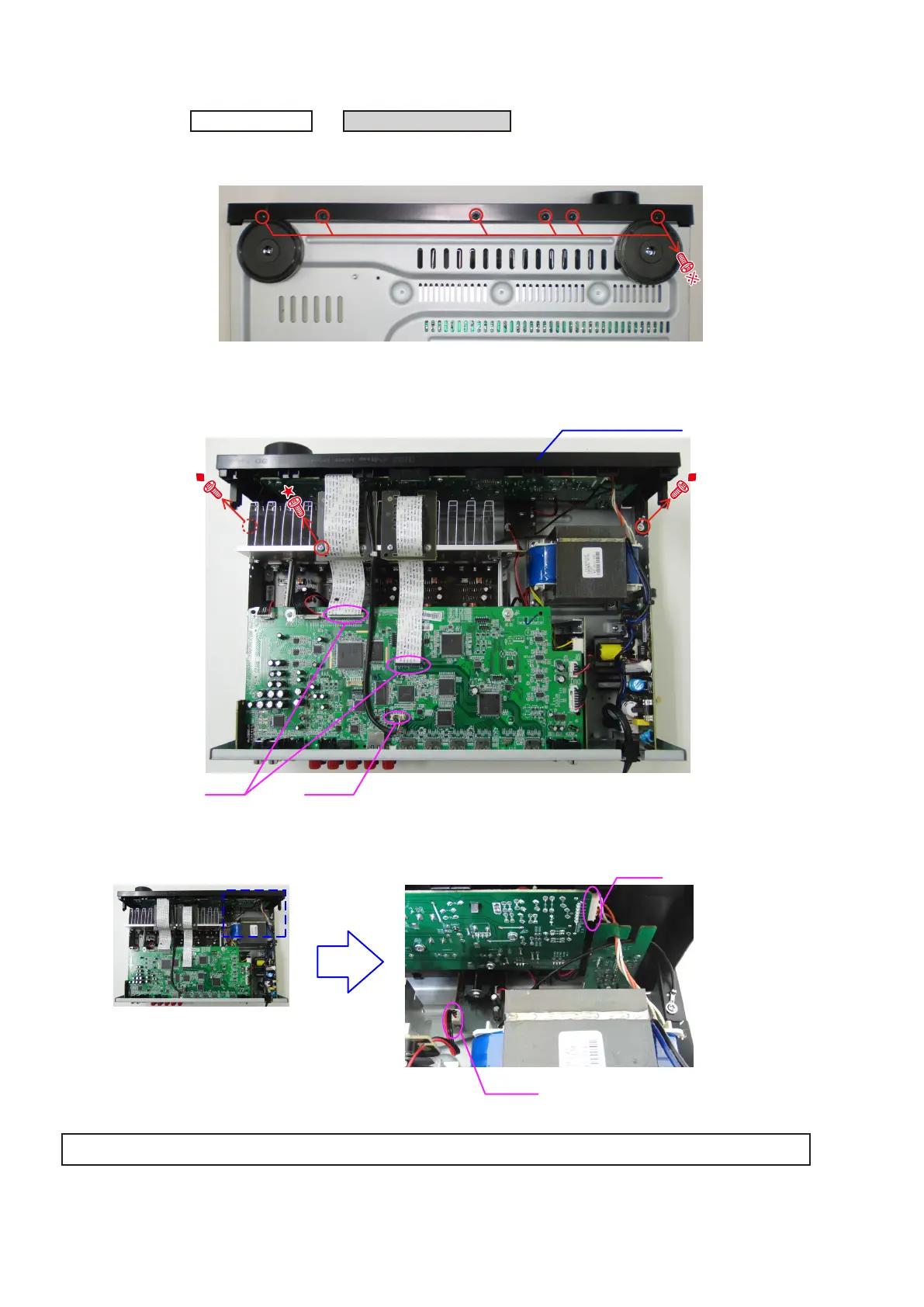

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Remove the screws and disconnect the FFC.
(3) Disconnect the connector wires.
CABINET TOP
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
CN851
FFC
FRONT PANEL ASSY
CN102
CN104
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
