Denon AVR-1613 Service Manual

8
TECHNICAL SPECIFICATIONS
n
Audio Section
• Poweramplier
Rated output :
Front : (for AVR-1613)
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Front : (for AVR-1713/1723)
80 W + 80 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
135 W + 135 W (6Ω, JEITA)
Center : (for AVR-1613)
75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center : (for AVR-1713/1723)
80 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
135 W (6Ω, JEITA)
Surround : (for AVR-1613)
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround : (for AVR-1713/1723)
80 W + 80 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
135 W + 135 W (6Ω, JEITA)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 98 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response: 5 Hz – 10 MHz — 0, –3 dB
n
Tuner section
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range
(for E3) :
[FM] 87.5 MHz – 107.9 MHz
Receiving Range
(for E2/E1C) :
[FM] 87.5 MHz – 108.0 MHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf)
50 dB Quieting Sensitivity :
[FM]MONO 2.8 μV (20.2 dBf)
S/N (IHF-A) :
[FM]MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
TotalharmonicDistortion(at1kHz):
[FM]MONO 0.7 %
STEREO 1.0 %
n
General
Power supply : (for E3) : AC 120 V, 60 Hz
(for E2) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
Power consumption : 360 W (for AVR-1613)
390 W (for AVR-1713/1723)
0.1 W (Standby)
Weight : 8.2kg (AVR-1613)
8.3kg (AVR-1713/1723)
344.0
434.0
136.0
151.0
15.0
60.0
45.045.0
288.5
329.0
18.5 22.0
198.043.5 47.0

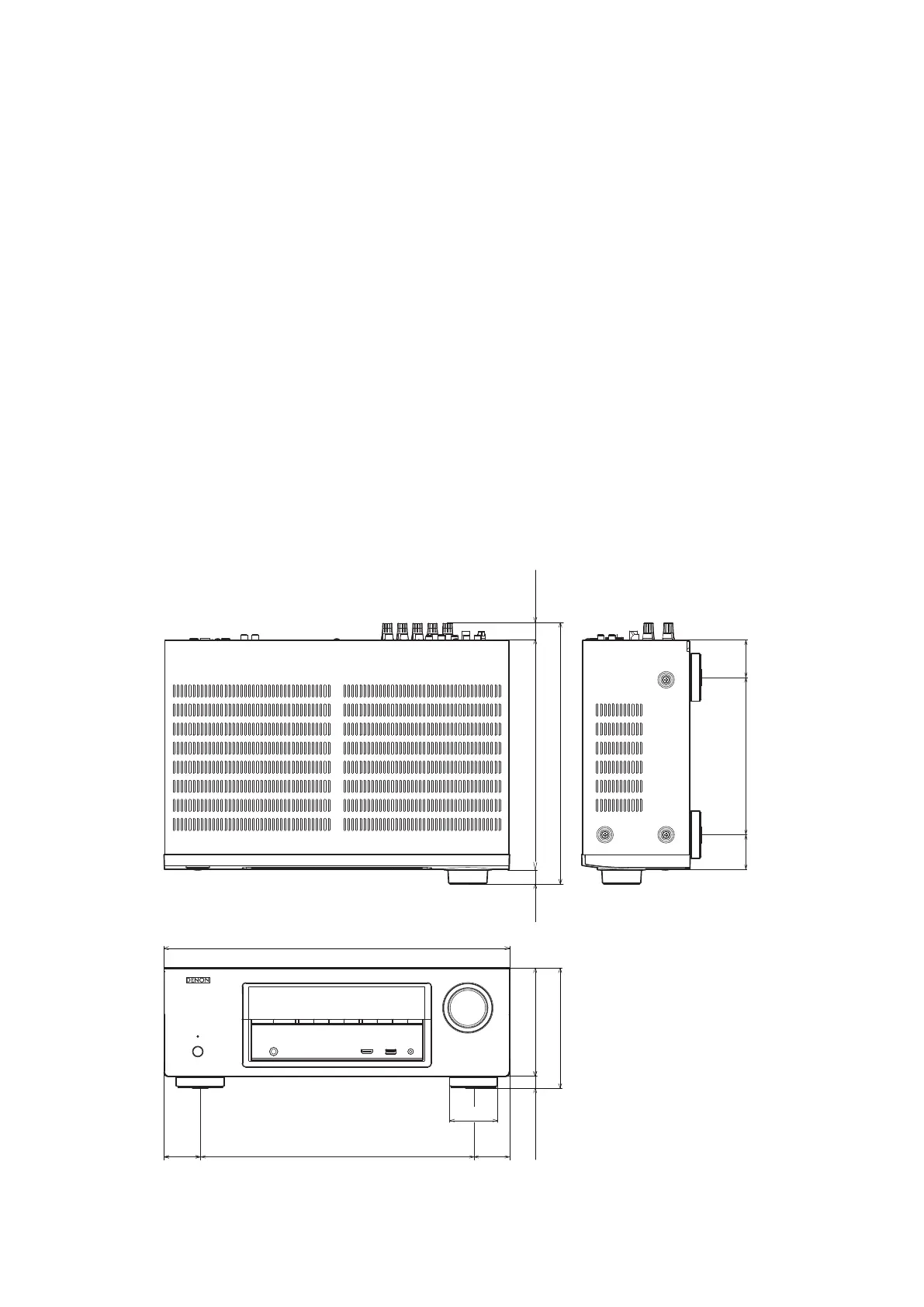

DIMENSION

Denon AVR-1613 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS Neo:6, DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	150.8 mm
Width	434.3 mm
Height	328.9 mm
Weight	8300 g
