3. RADIATOR ASSY

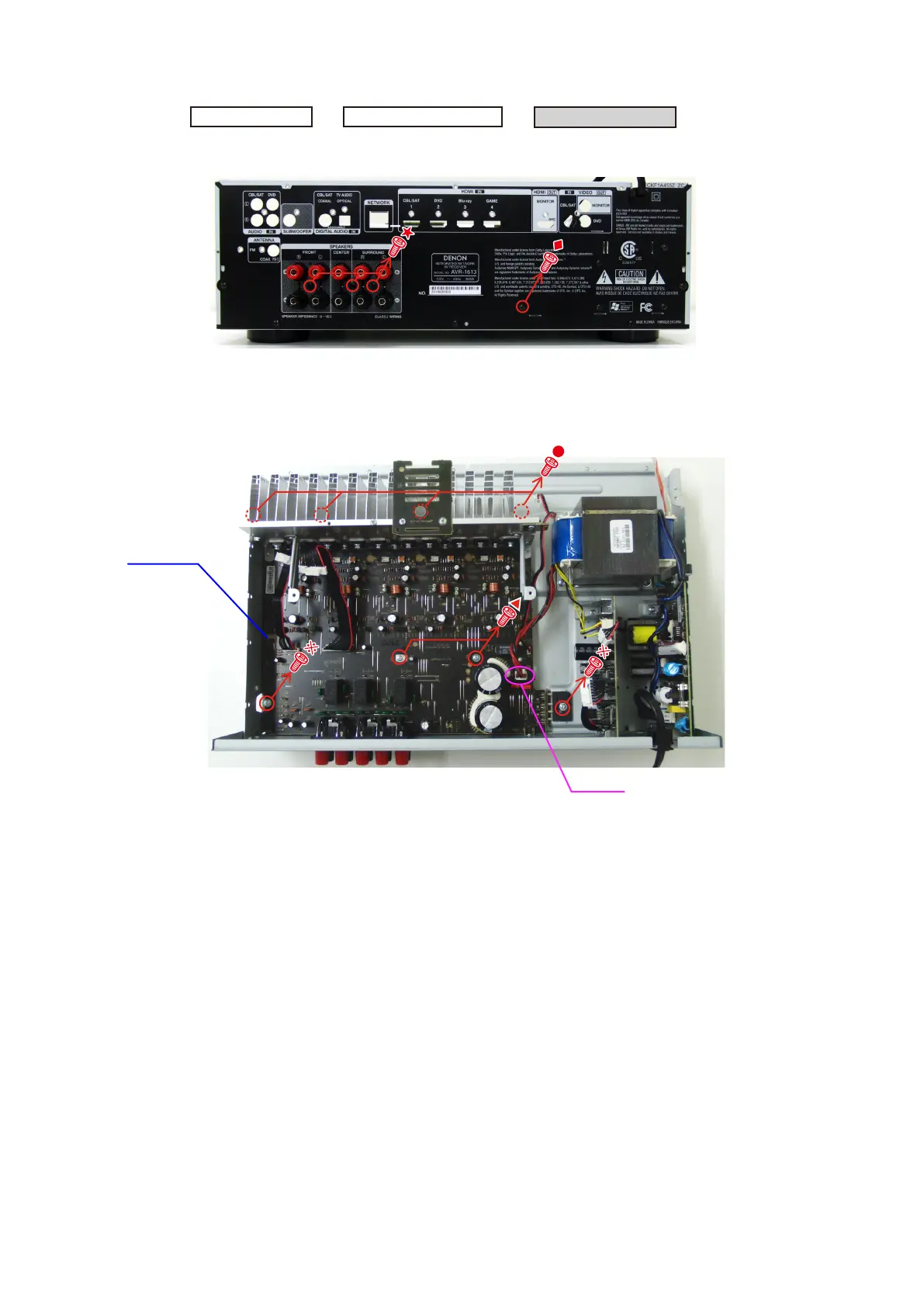

(1) Remove the screws.
(2) Remove the screws then disconnect the connector wire.
Remove the RADIATOR ASSY from the CHASSIS BOTTOM.
CABINET TOP
DIGITAL PCB ASSY
→
RADIATOR ASSY
→
Proceeding :
Shooting direction: A
CN503
MAIN PCB
