Denon AVR-1613 Service Manual

139
ADV3002BSTZ (DIGITAL : IC711)

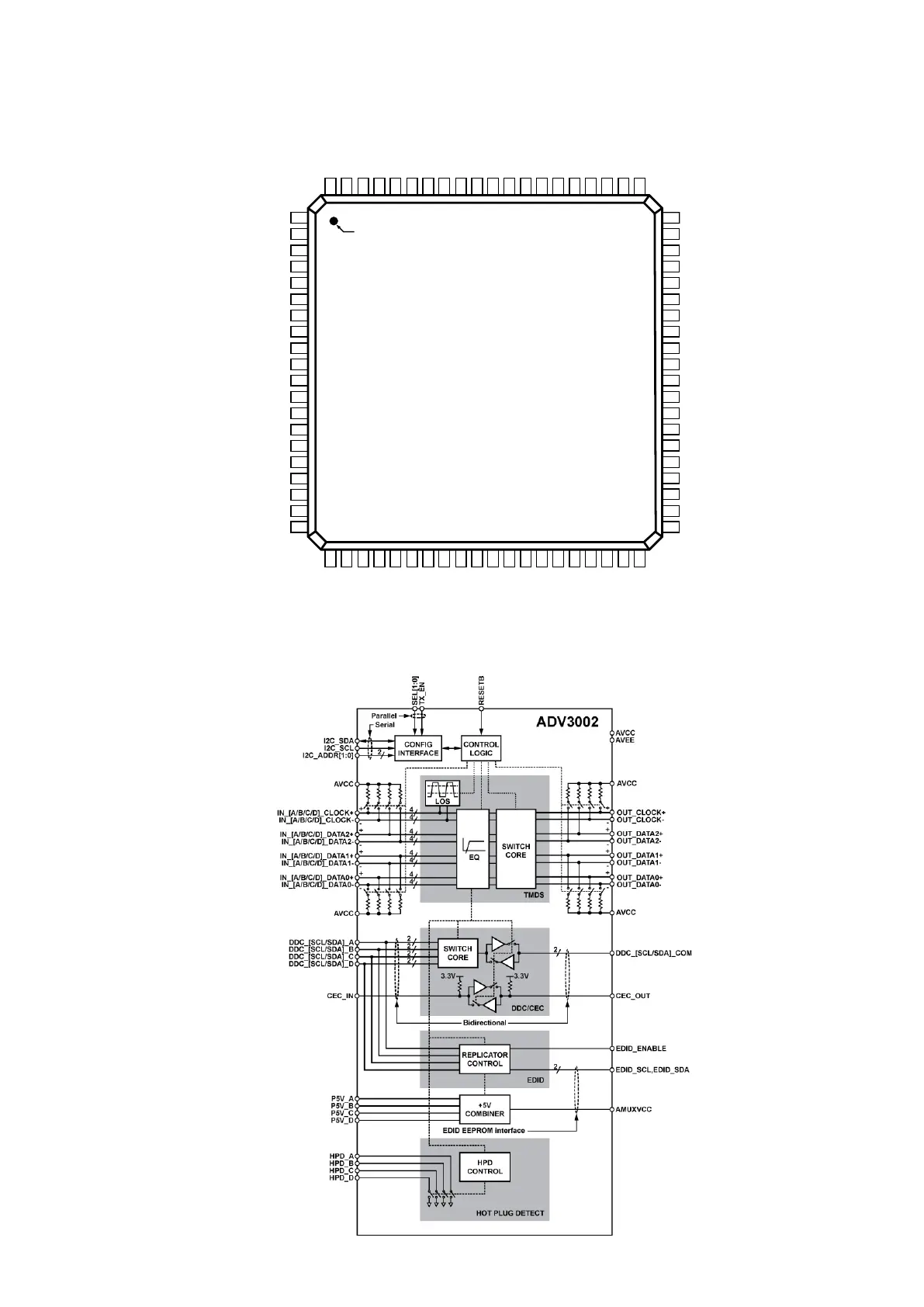

ADV3002BSTZ Block diagram
1IN_B_CLK-
2IN_B_CLK+
3HPD_B
4IN_B_DATA0-
5IN_B_DATA0+
6HPD_A
7IN_B_DATA1-
8IN_B_DATA1+
9AVCC
10IN_B_DATA2-
11IN_B_DATA2+
12SEL0
13IN_A_CLK-
14IN_A_CLK+
15SEL1
16IN_A_DATA0-
17IN_A_DATA0+
21AVEE
22IN_A_DATA2-
23IN_A_DATA2+
24TX_EN 25OUT_DATA2+
26OUT_DATA2-
27I2C_SCL
28OUT_DATA1+
29OUT_DATA1-
30AVEE
31OUT_DATA0+
32OUT_DATA0- 33AVCC
34OUT_CLK+
35OUT_CLK-
36RESETB
37IN_D_CLK- 38IN_D_CLK+ 39I2C_ADDR1
40I2C_SDA
80 P5V_A
79 P5V_B 78 P5V_C
77 P5V_D 76 DDC_SDA_A
75 DDC_SCL_A 74 DDC_SDA_B
73 DDC_SCL_B
72 DDC_SDA_C 71 DDC_SCL_C
70 DDC_SDA_D
69 DDC_SCL_D 68 DDC_SDA_CO
M
67 DDC_SCL_CO
M
66 CEC_IN
65 CEC_OUT
64 AMUXVCC
63 EDID_ENABLE
62 EDID_SDA
61 EDID_SCL
PIN 1
INDICATOR
ADV3002
TOP VIEW
(Not to Scale)
60
IN_C_DATA2+
59
IN_C_DATA2-
58
HPD_C
57
IN_C_DATA1+
56
IN_C_DATA1-
55
HPD_D
54
IN_C_DATA0+
53
IN_C_DATA0-
52
AVCC
51
IN_C_CLK+
50
IN_C_CLK-
49
I2C_ADDR0
48
IN_D_DATA2+
47
IN_D_DATA2-
46
AVEE
45
IN_D_DATA1+
44
IN_D_DATA1-
43
AVCC
18AVCC
19IN_A_DATA1-
42
IN_D_DATA0+
41
IN_D_DATA0-
20IN_A_DATA1+
