Denon AVR-1613 Service Manual

40
1.3. Turn on the AV receiver
Operate the following. Turn on the AV receiver.
(1) Connect the power cable to the AC outlet while simultaneously pushing the "SOURCE SELECT
0
"
, "SOURCE
SELECT
1
"
and the "ZONE2 SELECT"(only AVR-1713E3)/ "TUNER PRESET CH +"(expect AVR-1713E3) button of
the front panel.
(2) Conrm the power indicator is green and "WRITTING" is displayed in the front panel.
1.4. Run the DFW

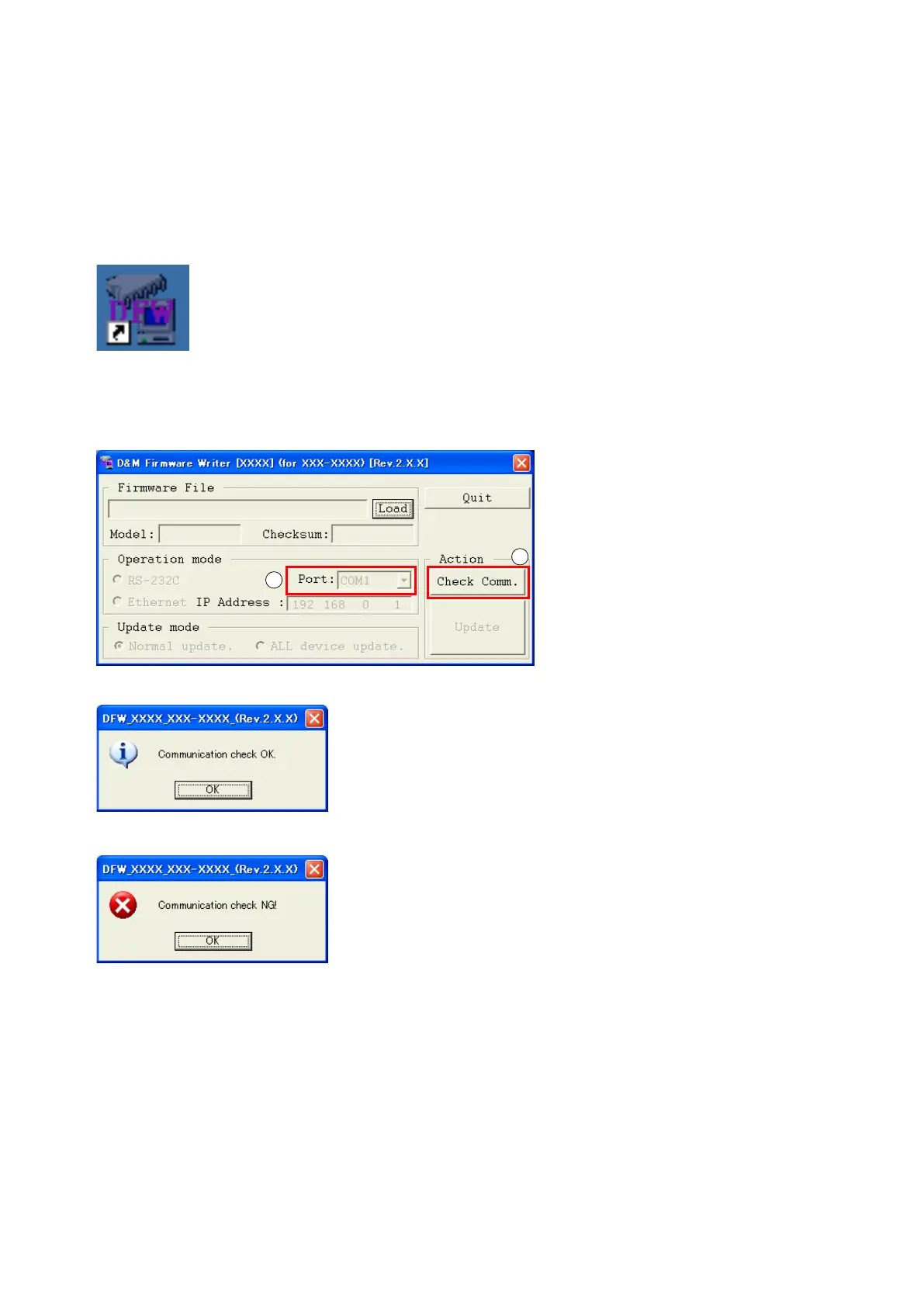

Run the "DFW_0057_AVR1713_1723_1613(Rev.2.1.5).exe" on desktop of PC.
1.5. Communication check
(1) Select the serial port number of RS-232C in PC.
(2) Click the "Check Comm." button.
(3) When connection is good, then you can see the "Communication check OK." message.
(4) If connection is not good, then you can see the "Communication check NG" message.
Please conrm the following
(a) Check the connection of the AV receiver and PC. (refer to "
1.2. Connection of the AV receiver" )
(b) Check the operation mode of the AV receiver. (refer to "
1.3.Turn on the AV receiver")
(c) Check the selection of the RS-232C port number of PC.
1
2

Denon AVR-1613 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	5
Composite video in	2
Digital audio optical in	1
Ethernet LAN	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby TrueHD, DTS Neo:6, DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	150.8 mm
Width	434.3 mm
Height	328.9 mm
Weight	8300 g
