3. PCB HDMI

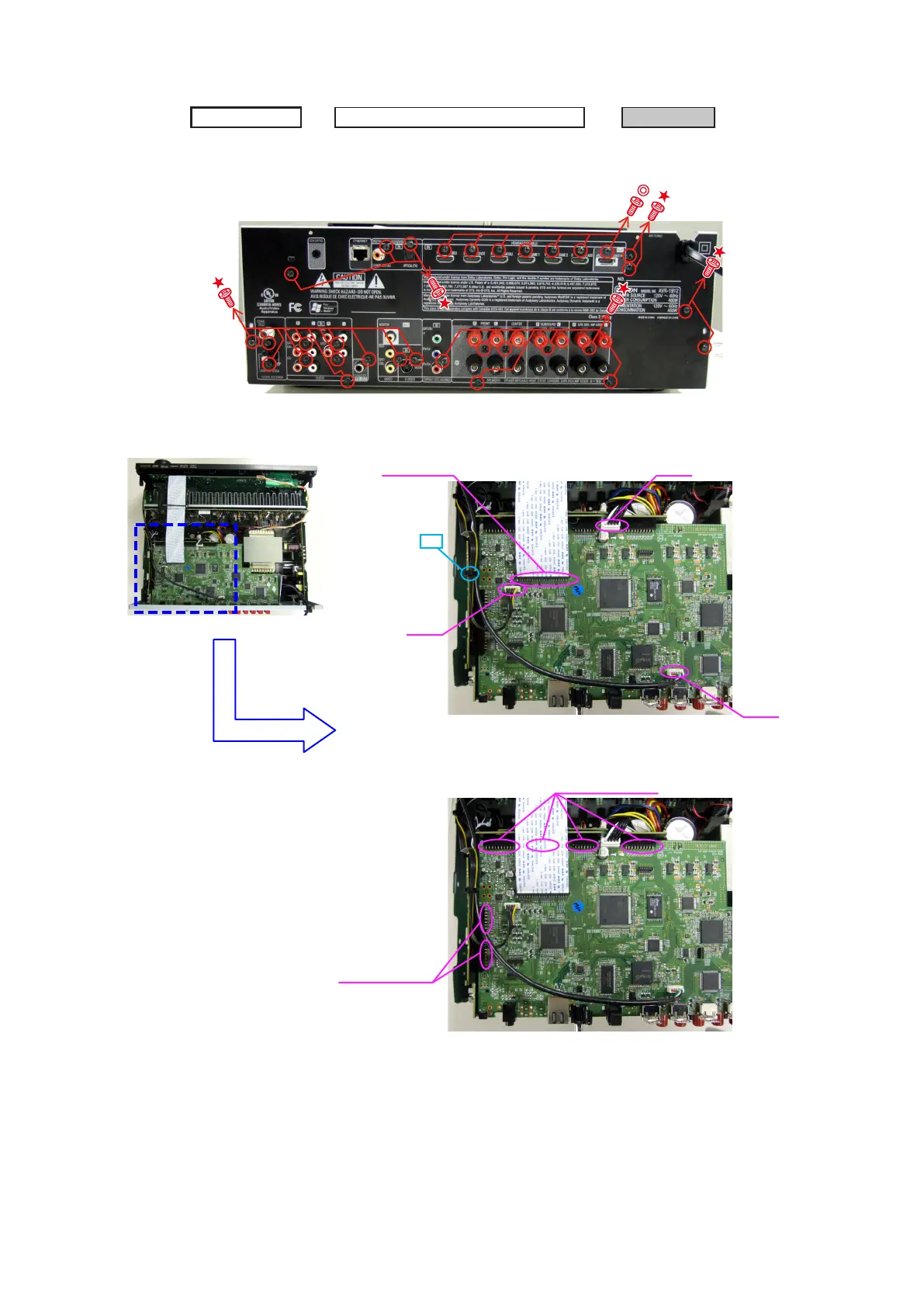

(1) Remove the screws.

(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable. Disconnect the connector board.

TOP

COVER

PCB RS232C (AVR-2112CI only)

→

PCB HDMI

→

Proceeding :

Shooting of photograph: A

CX1

CP1

CN8

Board to board

Board to board

cut

FFC cable
