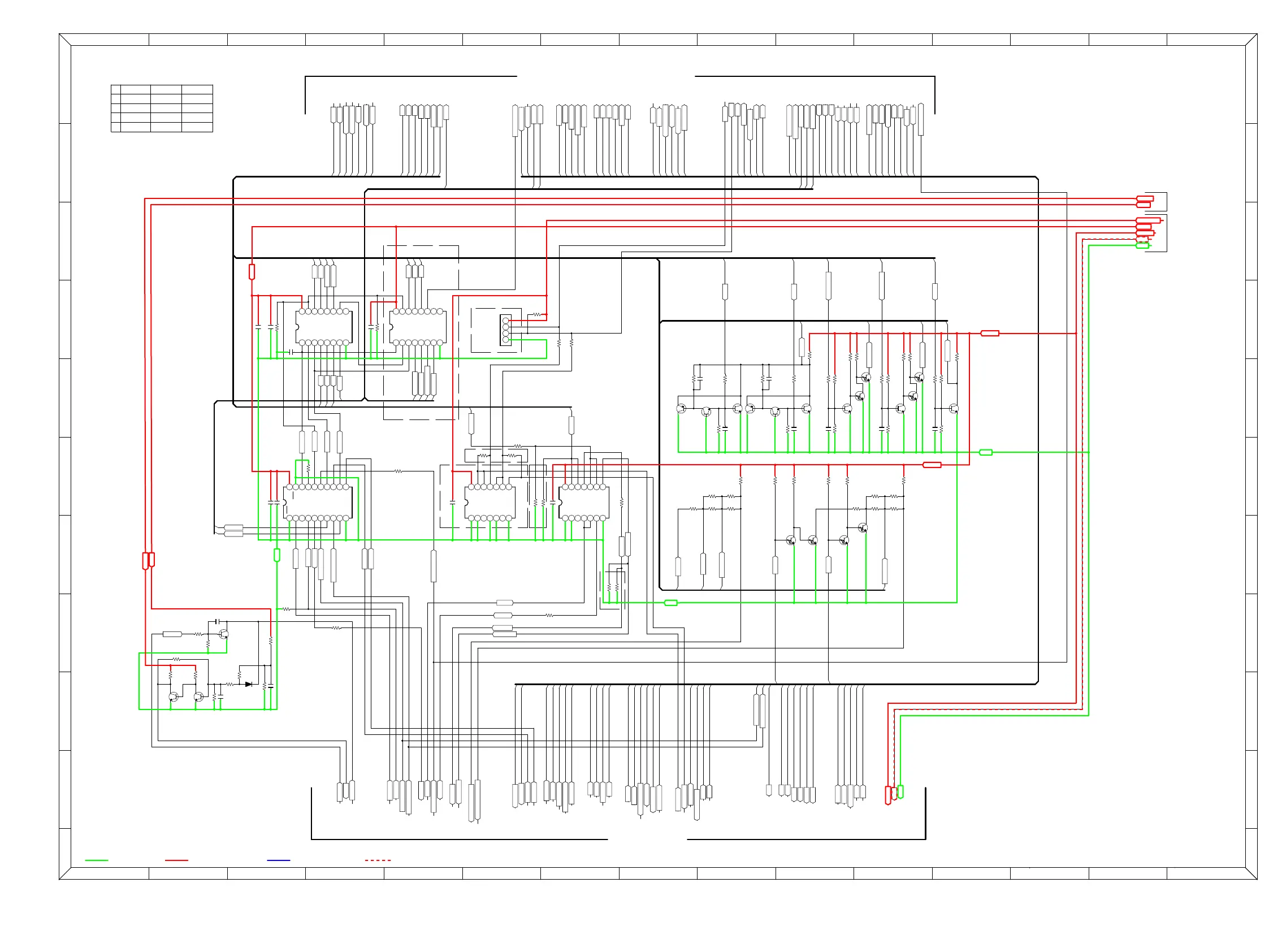

Denon AVR-1912

167
MC14094BDTR2G (HDMI : IC35)
MC14094BDTR2G Terminal Function
Device Pin Pin Name Symbol I/O Function
HDMI:IC35
4 EXP1 (Q1) VINA O CVBS input select control pin (TC4051)
5 EXP2 (Q2) VINB O CVBS input select control pin (TC4051)
6 EXP3 (Q3) VINC O CVBS input select control pin (TC4051)
7 EXP4 (Q4) P.SAVE O COMPONENT output MUTE control pin (NJM2586)
11 EXP5 (Q8) COMP SW2 O VIDEO SELECT IC(NJW2586)
12 EXP6 (Q7) COMP SW1 O VIDEO SELECT IC(NJW2586)
13 EXP7 (Q6) MONIB O CVBS monitor output signal control pin(TC4052)
14 EXP8 (Q5) MONIA O CVBS monitor output signal control pin(TC4052)
MC14094B
http://onsemi.com
2
13
14
15
16
9
10
11
125
4
3
2
1
8
7
6
Q7
Q6
Q5
OUTPUT
ENABLE
V
DD
Q
S
Q′
S
Q8
Q1
CLOCK
DATA
STROBE
V
SS
Q4
Q3
Q2
PIN ASSIGNMENT
TRUTH TABLE
Clock
Output
Enable
Strobe Data
Parallel Outputs Serial Outputs
Q1 Q
N
Q
S
* Q′
S
0 X X Z Z Q7 No Chg.
0 X X Z Z No Chg. Q7
1 0 X No Chg. No Chg. Q7 No Chg.
1 1 0 0 Q
N
−1 Q7 No Chg.
1 1 1 1 Q
N
−1 Q7 No Chg.
1 1 1 No Chg. No Chg. No Chg. Q7
Z = High Impedance X = Don’t Care
* At the positive clock edge, information in the 7th shift register stage is transferred to Q8 and Q
S
.
ORDERING INFORMATION
Device Package Shipping
†
MC14094BCP PDIP−16 500 Units / Rail
MC14094BCPG PDIP−16
(Pb−Free)
500 Units / Rail
MC14094BD SOIC−16 48 Units / Rail
MC14094BDG SOIC−16
(Pb−Free)
48 Units / Rail
MC14094BDR2 SOIC−16 2500 Units / Tape & Reel
MC14094BDR2G SOIC−16
(Pb−Free)
2500 Units / Tape & Reel
MC14094BDTR2 TSSOP−16* 2500 Units / Tape & Reel
MC14094BF SOEIAJ−16 50 Units / Rail
MC14094BFG SOEIAJ−16
(Pb−Free)
50 Units / Rail
MC14094BFEL SOEIAJ−16 2000 Units / Tape & Reel
MC14094BFELG SOEIAJ−16
(Pb−Free)
2000 Units / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*This package is inherently Pb−Free.
