Denon AVR-1912

15

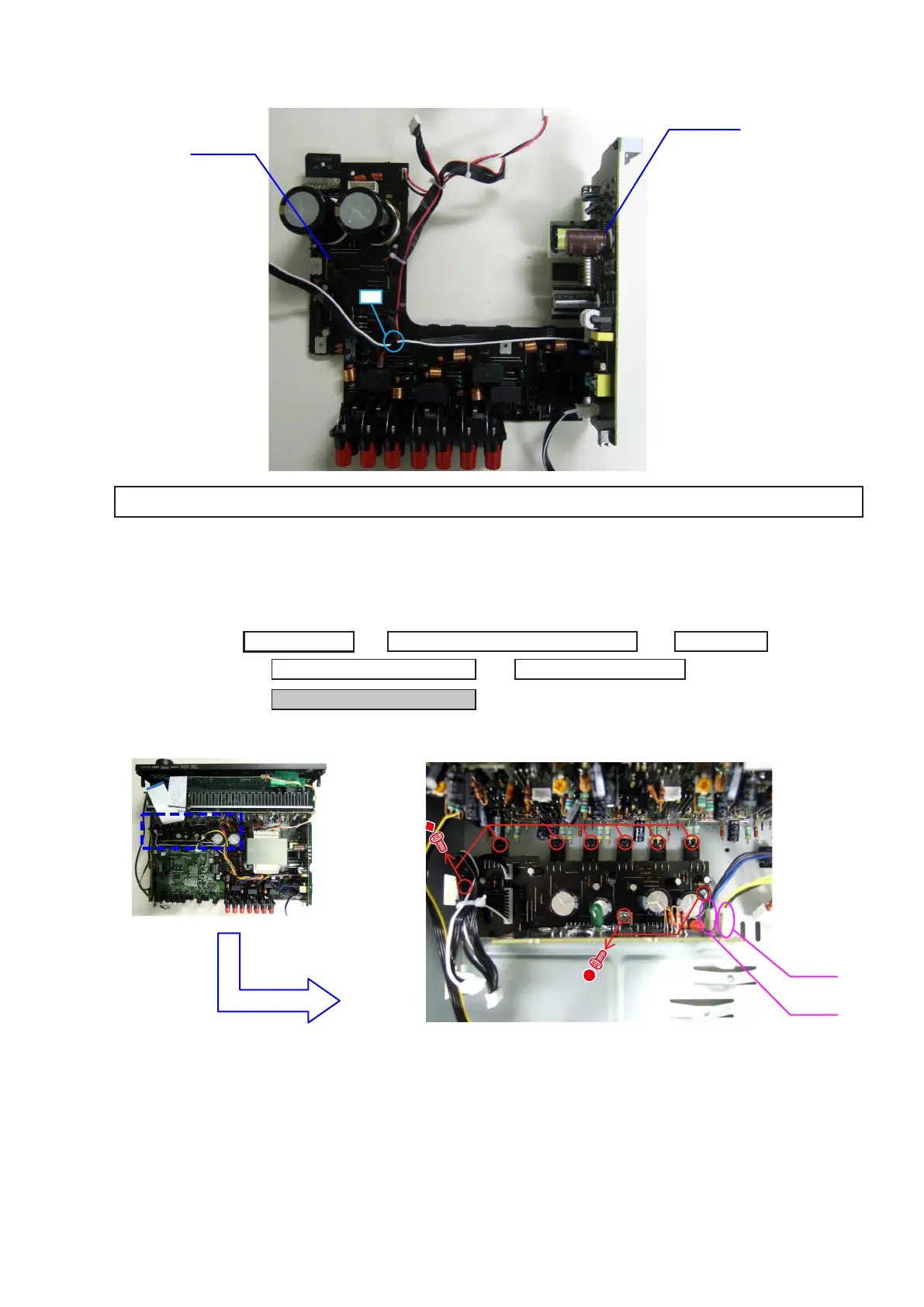

(3) Remove the PCB SMPS/PCB SPK from the CHASSIS, then cut the wire clamp band.
7. PCB REG/PCB REG_CNT
(1) Disconnect the connector wires, then remove the screws.
PCB SMPS
PCB SPK
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B.
PCB REG/PCB REG_CNT
→
PCB SMPS/PCB SPK
→
PCB AUDIO_VIDEO ASSY
→
TOP COVER
PCB RS232C (AVR-2112CI only)
→
PCB HDMI
→
Proceeding :
CP102
CP104
