PARTS LIST OF EXPLODED VIEW
z
Parts indicated by "nsp" on this table cannot be supplied.
z
P.W.B. ASS'Y indicated by "nsp" on this table cannot be supplied. When repairing the P.W.B. ASS'Y, check the board parts list and order replacement parts.
z
Parts indicated by the "
★
" mark are not illustrated in the exploded view.
z
The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
1912E3 : U.S.A. & Canada model 1912E2 : Europe model 1912EA : Australia model
1912E1C : China model 2311CIE3 : U.S.A. & Canada model
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
P4A nsp PCB FRONT ASSY 1912BKE3 7025HK1015063 1 *
P4A nsp PCB FRONT ASSY 2112CIBKE3 7025HK1015013 1 *
P4A nsp PCB FRONT ASSY 1912BKE2,1912BKEA 7025HK1015053 1 *
P4A nsp PCB FRONT ASSY 1912SPE1C 7025HK1015023 1 *
P1 - PCB H/P -
P2 - PCB FUNCTION -
P3 - PCB FUNCTION CNT -
P4 - PCB FRONT -
P5 - PCB V.AUX -
P6 - PCB USB -
P7 - PCB GUIDE R -
P9 - PCB GUIDE TOP -
P10 - PCB GUIDE L -
P8 nsp PCB 7CH_AMP ASSY 1912BKE3 7025HK1015060 1
P8 nsp PCB 7CH_AMP ASSY 2112CIBKE3 7025HK1015010 1
P8 nsp PCB 7CH_AMP ASSY 1912BKE2,1912BKEA 7025HK1015050 1
P8 nsp PCB 7CH_AMP ASSY 1912SPE1C 7025HK1015020 1

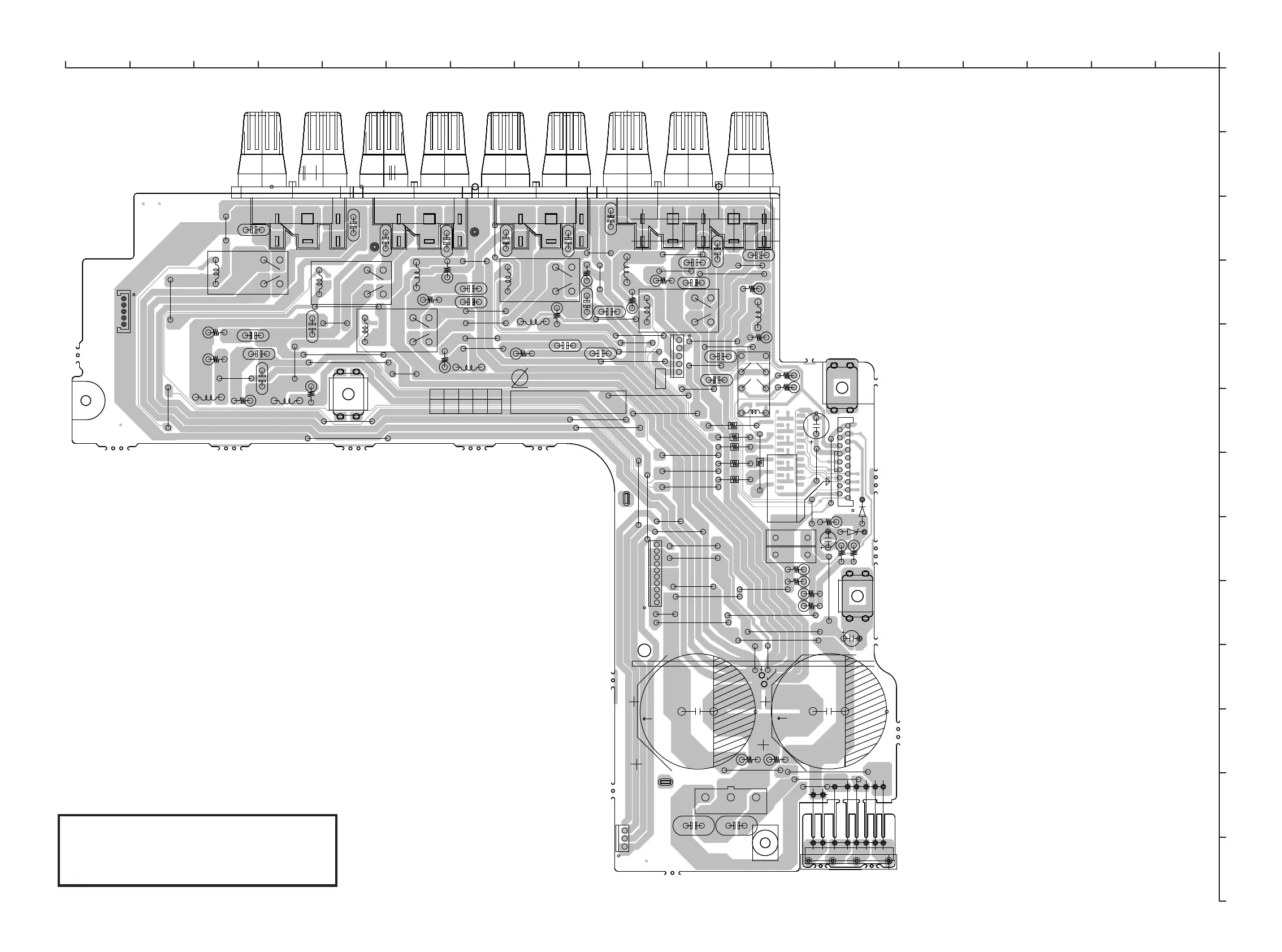

P19A nsp PCB SPK ASSY 1912BKE3 7025HK1015061 1 *
P19A nsp PCB SPK ASSY 2112CIBKE3 7025HK1015011 1 *
P19A nsp PCB SPK ASSY 1912BKE2,1912BKEA 7025HK1015051 1 *
P19A nsp PCB SPK ASSY 1912SPE1C 7025HK1015021 1 *
P19 - PCB SPK -
P18 - PCB SMPS -
P12A nsp PCB REG_CNT ASSY 1912BKE3
7025HK1015062 1 *
P12A nsp PCB REG_CNT ASSY 2112CIBKE3 7025HK1015012 1 *
P12A nsp PCB REG_CNT ASSY 1912BKE2,1912BKEA 7025HK1015052 1 *
P12A nsp PCB REG_CNT ASSY 1912SPE1C 7025HK1015022 1 *
P11 - PCB REG -
P12 - PCB REG_CNT -
P14 - PCB SIDE_CNT -
P15 - PCB RS232C ASSY 2112CIBKE3 - *
P17 - PCB SIRIUS ASSY 2112CIBKE3 - *
P20 - PCB FRONT_CNT -
P13 nsp PCB AUDIO_VIDEO ASSY 1912BKE3 7025HK1015064 1 *
P13 nsp PCB AUDIO_VIDEO ASSY 2112CIBKE3 7025HK1015014 1 *
P13 nsp PCB AUDIO_VIDEO ASSY 1912BKE2,1912BKEA 7025HK1015054 1 *
P13 nsp PCB AUDIO_VIDEO ASSY 1912SPE1C 7025HK1015024 1 *
P16 8U6331008300D PCB HDMI ASSY AVR1912BKE3 7025HK1015065 1 *
P16 8U6331008400D PCB HDMI ASSY AVR2112CIBKE3 7025HK1015015 1 *
