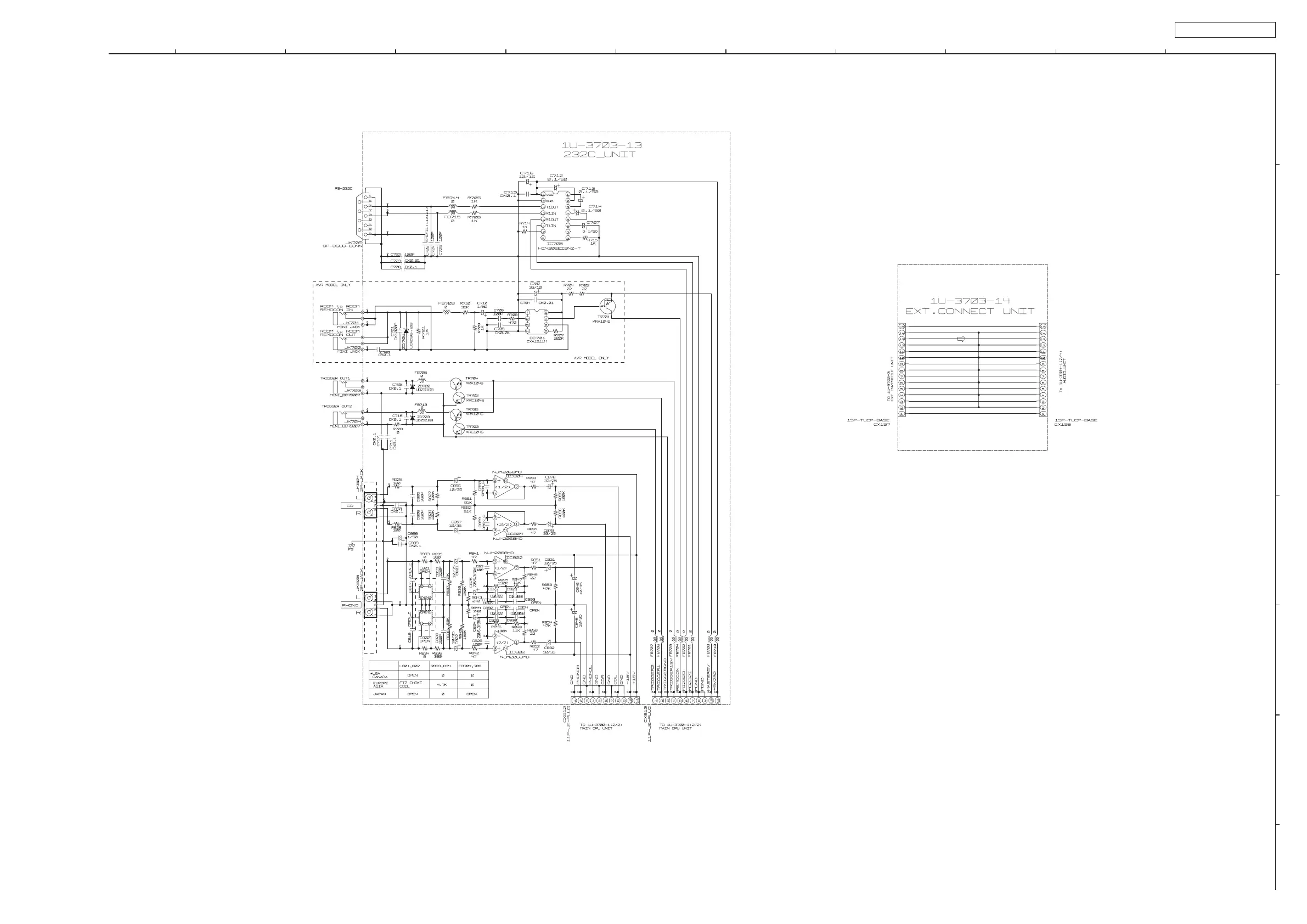

SCHEMATIC DIAGRAMS (11/31)
1U-3703-13 232C UNIT
1U-3703-14 EXT. CONNECT UNIT
SCHEMATIC DIAGRAMS (11/31)
1234567891011
A
B
C
D
E
F
G
H
AVR-2807 / AVC-2920
